Detecting sensors

Front ultrasonic sensors

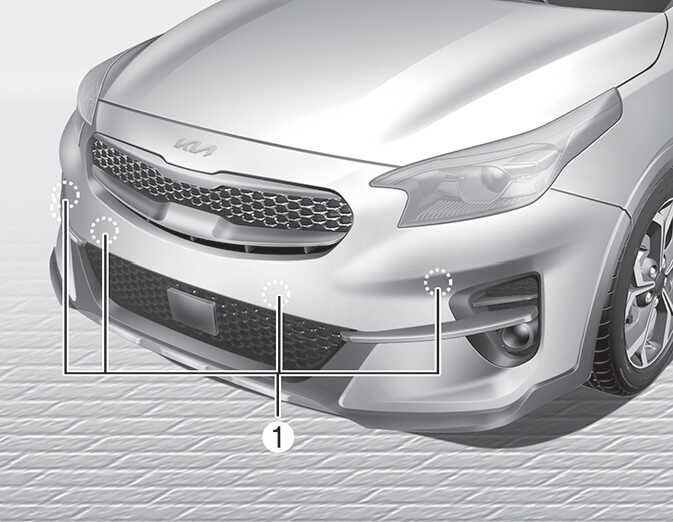

Figure 1. Type A
OCD041555L

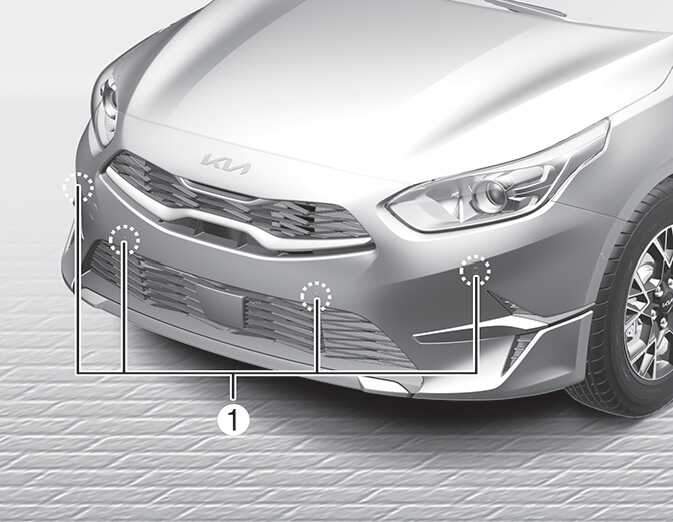

Figure 2. Type B
OCD041006L

[1] : Front Ultrasonic sensors

Rear ultrasonic sensors

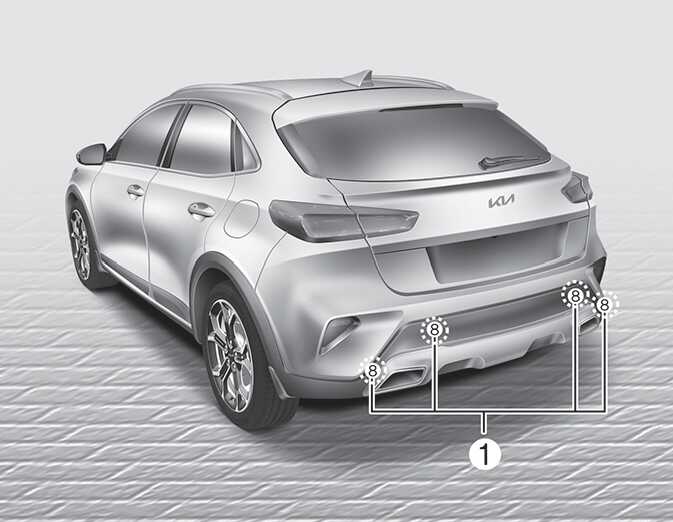

Figure 3. Type A
OCD041553L0

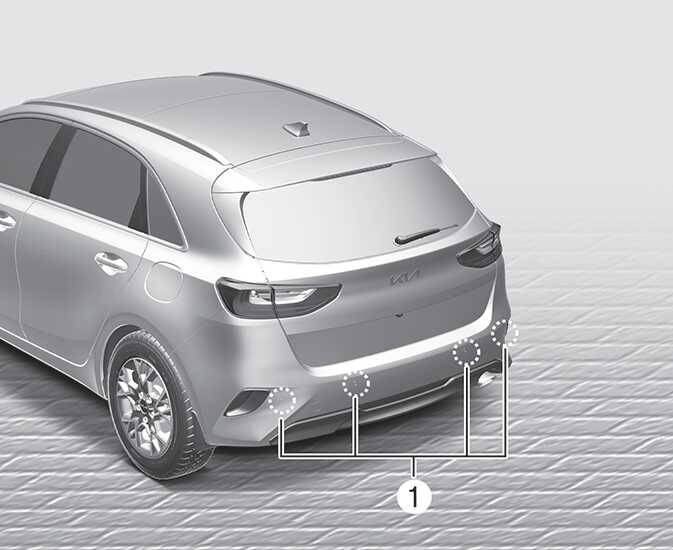

Figure 4. Type B
OCD041552L0

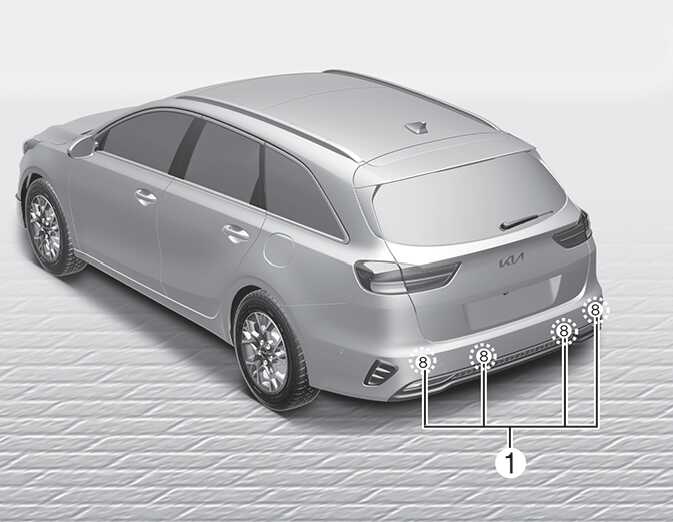

Figure 5. Type C
OCD041554L0

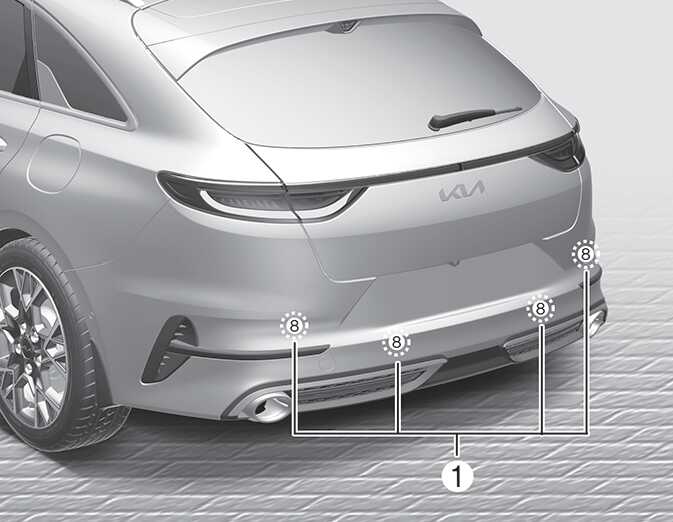

Figure 6. Type D
OCD041550L0

[1] : Rear Ultrasonic sensors

Refer to the picture above for the detailed location of the detecting sensors.
