Automatic heating and air conditioning

OCDW049302

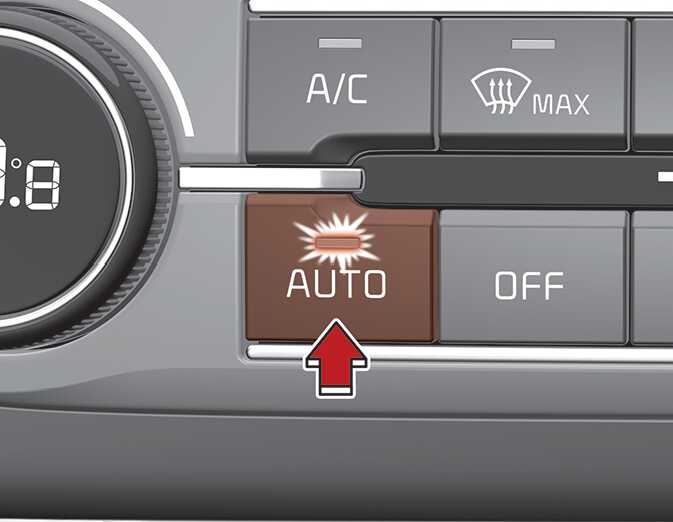

  1. Push the AUTO button. The modes, fan speeds, air intake and air-conditioning will be controlled automatically according to the temperature setting.
    OCDW049303

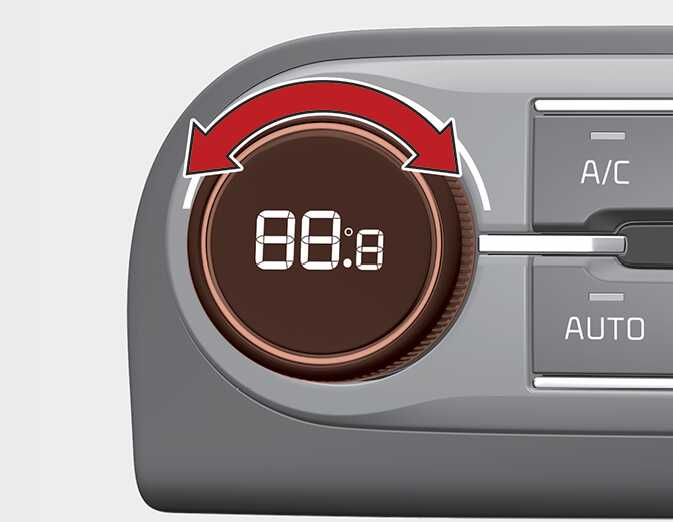

  2. Turn the temperature control knob to set the desired temperature.
NOTE

  • To turn the automatic operation off, select any button or switch of the following:

    • Mode selection button

    • Air conditioning button

    • Front windshield defroster button (Press the button one more time to deselect the front windshield defroster function. The AUTO sign will appear on the information display once again.)

    • Air intake control button

    • Fan speed control knob

    The selected function will be controlled manually while other functions operate automatically.

  • For your convenience and to improve the effectiveness of the climate control, use the AUTO button and set the temperature to 22℃ (72℉).

NOTE

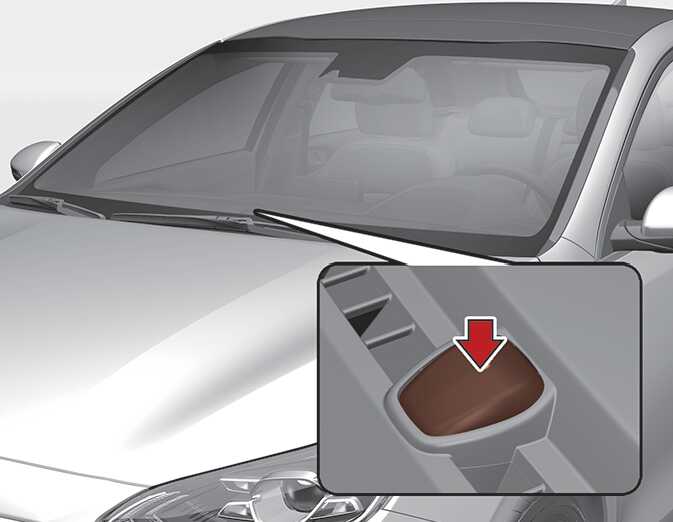

Never place anything over the sensor located on the instrument panel to ensure better control of the heating and cooling system.

OCDW049304
