To use the barrier net

OCDW049099
OCDW049417

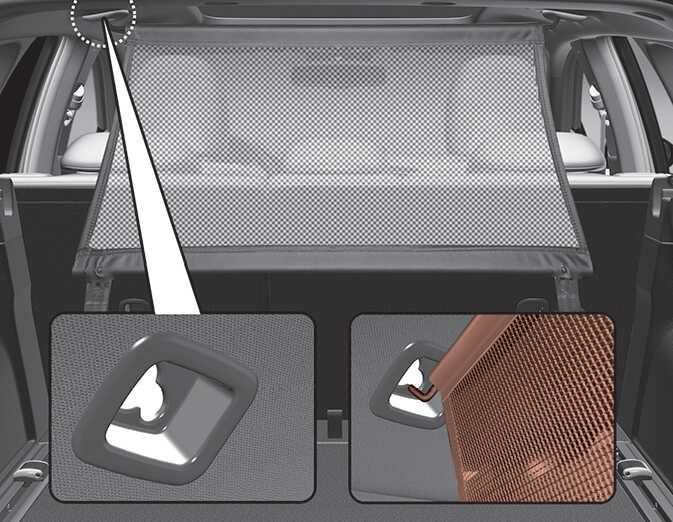

  1. Insert the hook into the large hole until it reaches the very top.
  2. Then secure it by sliding it into the small hole.
  3. Hold the hooked side and then with the other hand, hook the other side of the net.

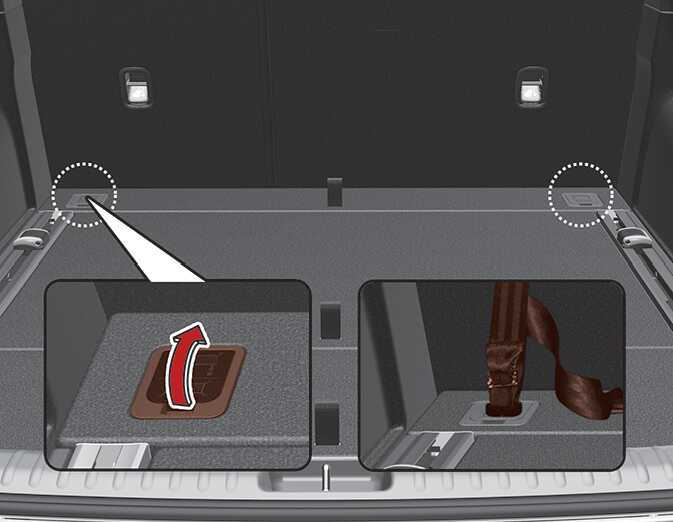

  4. Fix the lower straps both side of the net to the hooks on the floor.
CAUTION

Be careful not the scratch the side panel when inserting the hook into the hole.

WARNING

  • Do not allow passengers to travel in the cargo area behind the barrier net.

  • Do not allow passengers to travel in the rear center seat when the barrier net is installed behind the rear seats. The barrier net may interfere when using the rear center safety belt.

  • Do not load cargo in the area higher than the barrier net's upper end.

  • Do not load heavy cargo in the area higher than the seatback to avoid accidents even if the barrier net is installed.

  • Do not load cargo which has sharp edges that can pass through the barrier net.

  • Do not apply excessive force to the barrier net by hanging on to the net or by suspending heavy cargo and so on.
