Applying the shackle on the guide rail

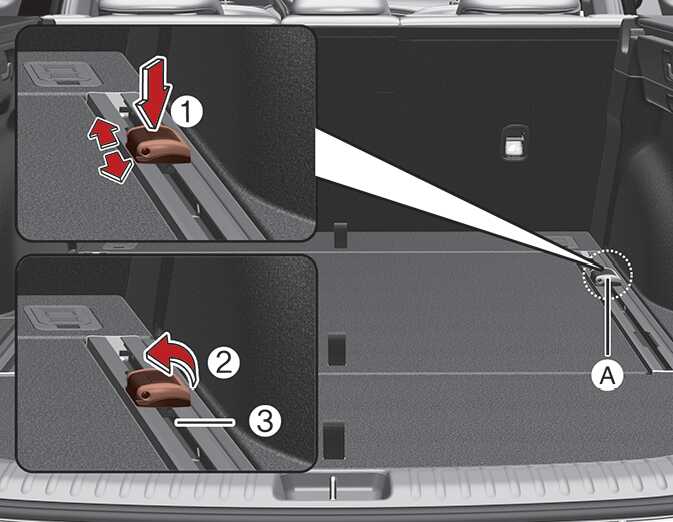

OCDW049408
  • Put the shackle (A) in the position where the shackle is put in the rail.
  • To move the shackle, press the button (1) and move the shackle along the rail.
  • Make sure the shackle is clicked into place.
  • To fix the luggage, pull up the hook (2) in direction to the middle of the cargo bay.
  • Now you can mount e.g. belt to fix the luggage in the hook.
  • The shackle cannot be used in the position where the shackle is put in and out of the rail (3).
CAUTION

Tensile force: max. 30 kgf. for 1 shackle
