Checking the engine oil level

Engine oil is used for lubricating, cooling, and operating various hydraulic components in the engine. Engine oil consumption while driving is normal, and it is necessary to check and refill the engine oil regularly. Also, check and refill the oil level within the recommended maintenance schedule to prevent deterioration of oil performance.

Check the engine oil following the below procedure.

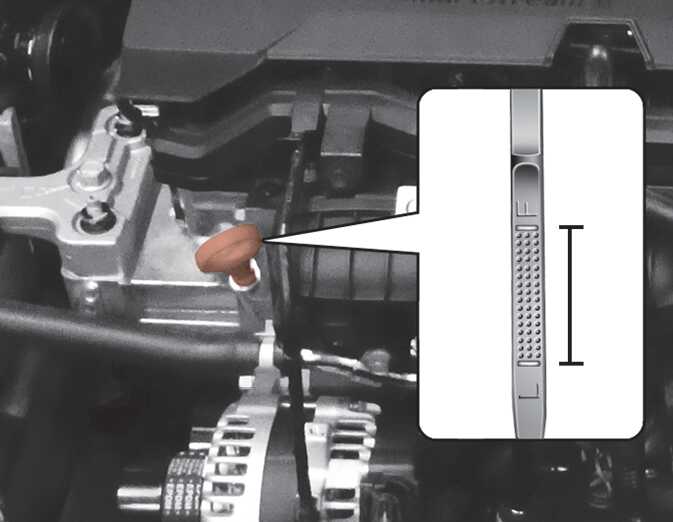

Figure 1. Smartstream G1.0 T-GDi
OCDMH070005L

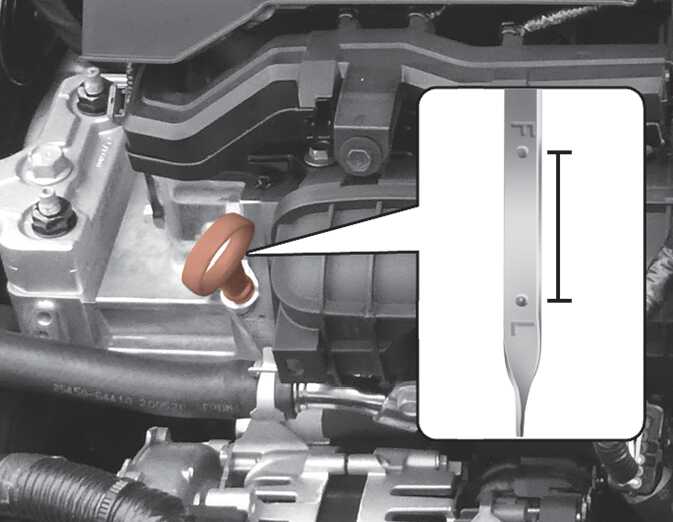

Figure 2. Smartstream G1.0 T-GDi MHEV
OCD070004

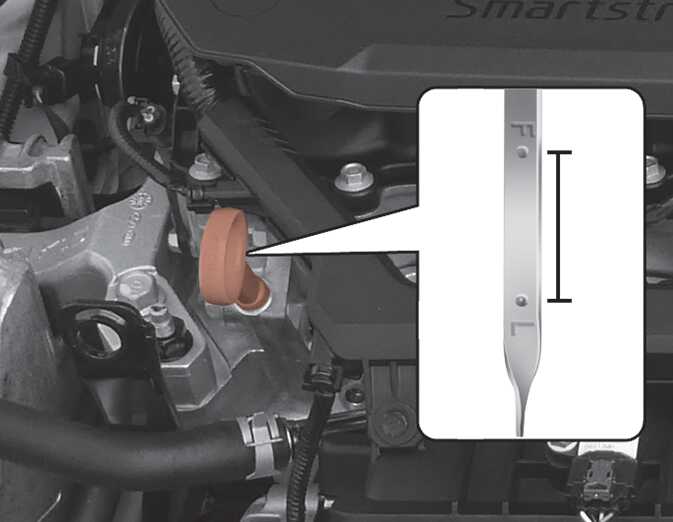

Figure 3. Smartstream G1.5 T-GDi
OCD070005

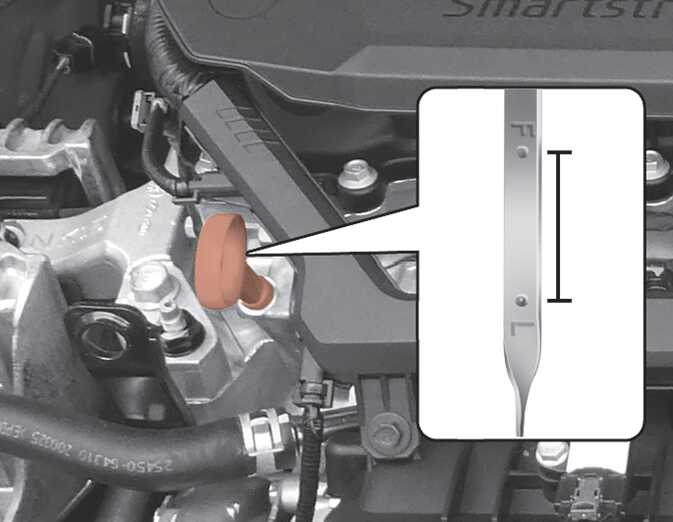

Figure 4. Smartstream G1.5T-GDi 48V MHEV
OCD070006

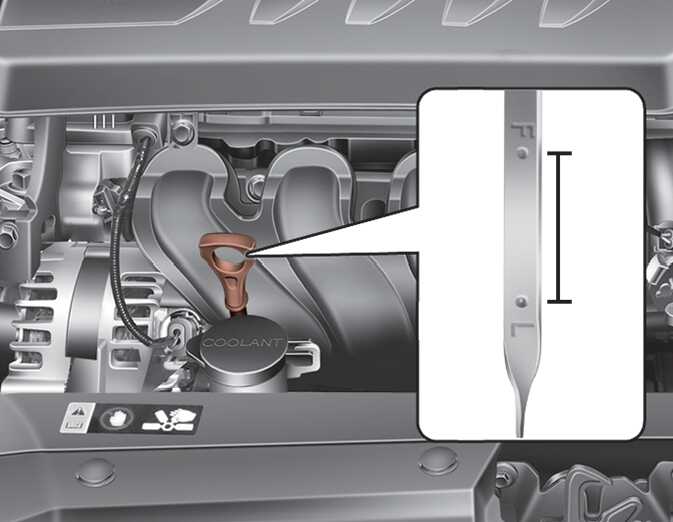

Figure 5. (Gasoline) 1.6 MPI
OCDW079084

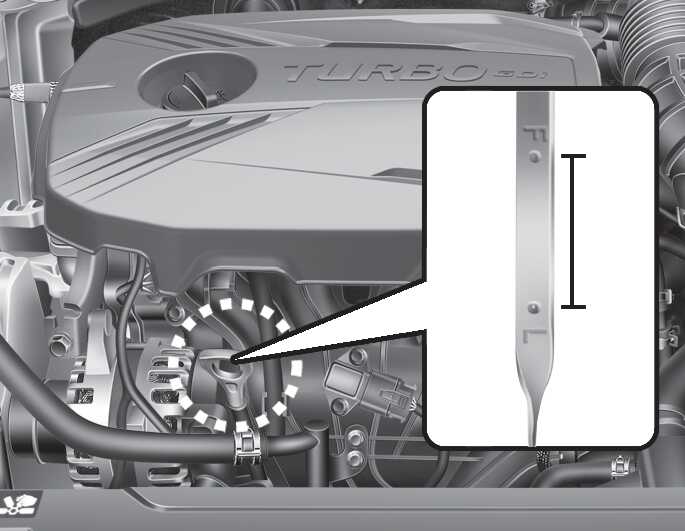

Figure 6. (Gasoline) 1.6 T-GDi
OBD078124L
  1. Be sure the vehicle is on level ground.
  2. Start the engine and allow it to reach normal operating temperature.
  3. Turn the engine off, remove the oil filler cap and pull the dipstick out. Wait for 15 minutes for the oil to return to the oil pan.
  4. Wipe the dipstick clean and re-insert it fully.
  5. Pull the dipstick out again and check the level. Check if the oil level is between the F-L line, and if it is below the L line, add enough oil to bring the level to F line.
    WARNING

    Radiator hose

    Be very careful not to touch the radiator hose when checking or adding the engine oil as it may be hot enough to burn you.

CAUTION

When you wipe the oil level gauge, you should wipe it with a clean cloth. When mixed with debris, it can cause engine damage.

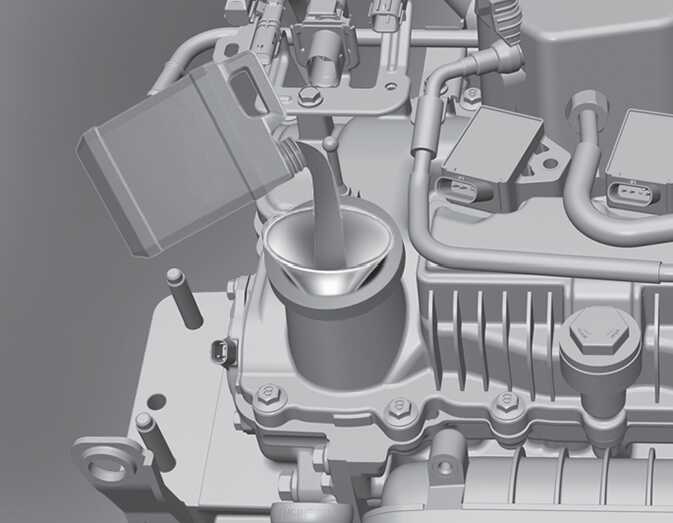

Figure 7. Smartstream G1.0 T-GDi
OCD071114L

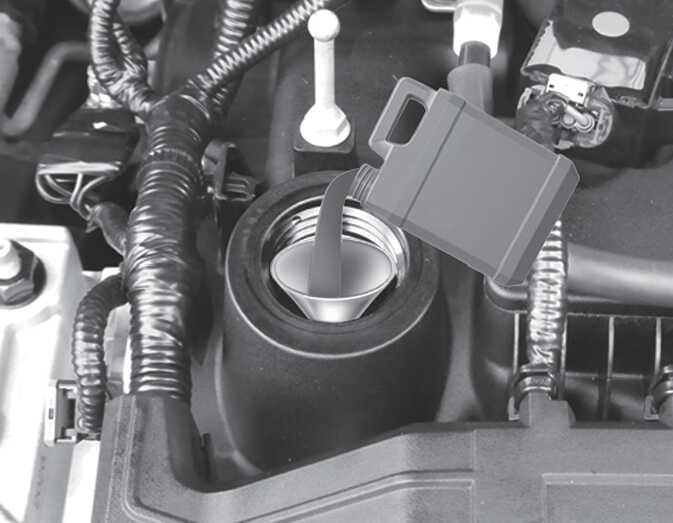

Figure 8. Smartstream G1.0 T-GDi MHEV
OCD071013L

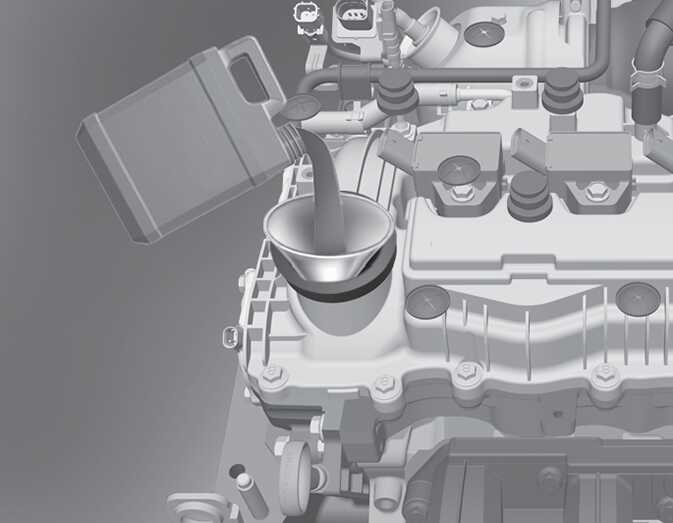

Figure 9. Smartstream G1.5 T-GDi/ Smartstream G1.5 T-GDi MHEV
OCD071115L

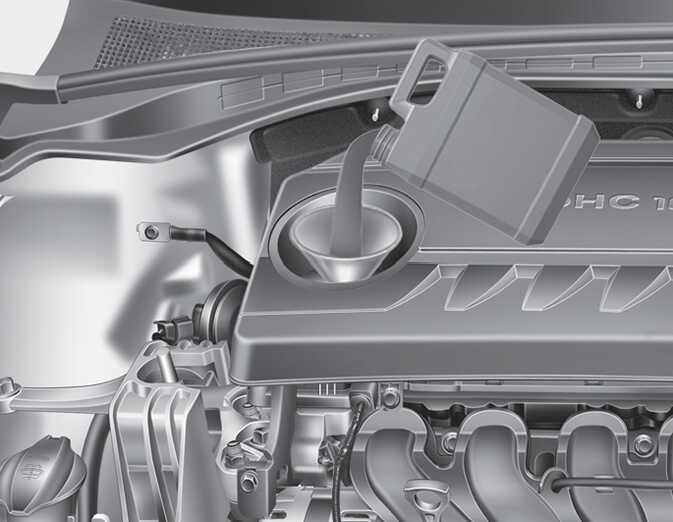

Figure 10. (Gasoline) 1.6 MPI
OCD071087L

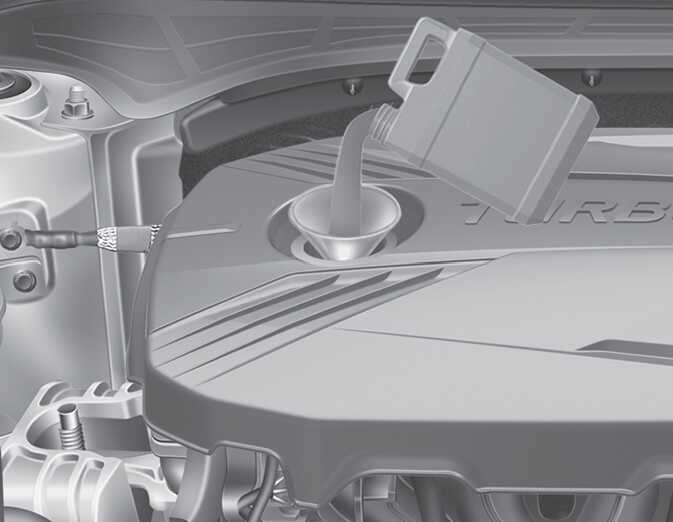

Figure 11. (Gasoline) 1.6 T-GDi
OCD071116L

After removing the engine cover, fill up the engine oil. (For Smartstream G1.0 T-GDi, Smartstream G1.0 T-GDi MHEV, Smartstream G1.5 T-GDi, Smartstream G1.5 T-GDi MHEV)

Use a funnel to help prevent oil from being spilled on engine components.

Use only the specified engine oil. (Refer to Recommended lubricants and capacities.)

  • Do not spill engine oil when adding or changing engine oil. Wipe off spilled oil immediately.

  • The engine oil consumption may increase while you break in a new vehicle and it will be stabilized after driving 6,000 km (4,000 miles).

  • The engine oil consumption can be affected by driving habits, climate conditions, traffic conditions, oil quality, etc. Therefore, it is recommended that you inspect the engine oil level regularly and refill it if necessary.
