High Beam Assist (HBA)

High Beam Assist is a function that automatically adjusts the headlight range (switches between high beam and low beam) depending on the brightness of detected vehicles and certain road conditions.

Detecting sensor

Front view camera

The front view camera is used as a detecting sensor to detect ambient light and brightness while driving.

Refer to the picture for the detailed location of the detecting sensor.

NOTICE

  • Always keep the front view camera in good condition to maintain optimal performance of High Beam Assist.

  • For more details on the precautions of the front view camera, refer to More Details.

High Beam Assist setting

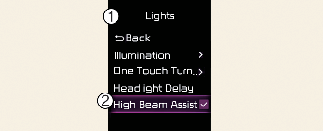

With the ENGINE START/STOP button in the ON position, select Setup → Vehicle → Lights → High Beam Assist from the Settings menu to turn on High Beam Assist and deselect to turn off the function.

WARNING

Change the Settings only after parking the vehicle at a safe location.

High Beam Assist operation

Display and control

  • After selecting 'High Beam Assist' in the Settings menu, High Beam Assist will operate by following the procedure below.

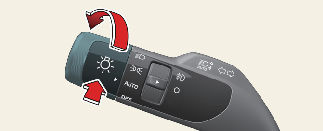

    • Place the headlight switch in the AUTO position and push the headlight lever towards the instrument cluster. High Beam Assist indicator light will appear on the cluster and the function will be enabled.

    • When the function is enabled, high beam will turn on when vehicle speed is above 30 km/h (20 mph). When vehicle speed is below 20 km/h (12 mph), high beam will not turn on.

    • The white High Beam indicator light will appear on the cluster.

  • When High Beam Assist is operating, if the headlight lever or switch is used, the function operates as follows:

    • If the headlight lever is pulled towards you when the high beam is off, the high beam will turn on without High Beam Assist canceled. When you let go of the headlight lever, the lever will move to the middle and the high beam will turn off.

    • If the headlight lever is pulled towards you when the high beam is on by High Beam Assist, low beam will be on and the function will turn off.

    • If the headlight switch is placed from AUTO to another position (headlight/position/off), High Beam Assist will turn off and the corresponding lamp will turn on.

  • When High Beam Assist is operating, high beam switches to low beam if any of the following conditions occur:

    • When the headlight of an oncoming vehicle is detected.

    • When the tail lamp of a vehicle in front is detected.

    • When the headlight or tail lamp of a motorcycle or a bicycle is detected.

    • When the surrounding ambient light is bright enough that high beams are not required.

    • When streetlights or other lights are detected.

High Beam Assist malfunction and limitations

High Beam Assist malfunction

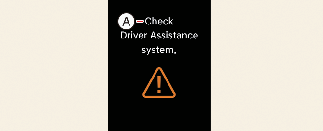

A: Check Driver Assistance system.

When High Beam Assist is not working properly, the 'Check High Beam Assist (HBA) system' warning message will appear and the Master warning light will appear on the cluster. In this case, have High Beam Assist inspected by an authorized Kia dealer.

Limitations of High Beam Assist

High Beam Assist may not work properly in the following situations:

  • Light from a vehicle is not detected because of lamp damage, or because it is hidden from sight, etc.

  • Headlight of a vehicle is covered with dust, snow or water.

  • A vehicle's headlights are off but the fog lamps are on and etc.

  • There is a lamp that has a similar shape as a vehicle's lamp.

  • Headlights have been damaged or not repaired properly.

  • Headlights are not aimed properly.

  • Driving on a narrow curved road, rough road, uphill or downhill.

  • Vehicle in front is partially visible on a crossroad or curved road.

  • There is a traffic light, reflecting sign, flashing sign or mirror ahead.

  • There is a temporary reflector or flash ahead (construction area).

  • The road conditions are poor such as being wet, iced or covered with snow.

  • A vehicle suddenly appears from a curve.

  • The vehicle is tilted from a flat tire or is being towed.

  • Light from a vehicle is not detected because of exhaust fume, smoke, fog, snow, etc.

NOTICE

  • Depending on the instrument cluster specification or theme, images or colors may be displayed differently.

  • For more details on the limitations of the front view camera, refer to More Details.

  • You can check it in the service message of the utility information view of the cluster display window.

WARNING

  • High Beam Assist may not turn off high beams every time. This function is for your convenience only. It is the responsibility of the driver to always check the road conditions and adjust headlights appropriately, including by using the manual controls. for your safety.

  • It may not operate for 15 seconds after the vehicle is started, or the front view camera is initialized or restarted.

  • If the high beam assistance is not operated properly, switch the headlights manually.
