Replacing turn signal lamp and stop lamp (Rear combination lamp) (Type A) (if equipped)

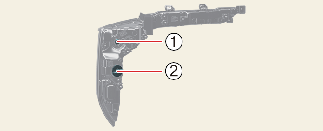

  1. Stop lamp

  2. Turn signal lamp

To replace the bulb:

  1. Engage the parking brake, shift to P and turn the ignition OFF.

  2. Turn of the rear combination lamp.

  3. Open the trunk.

  4. Remove the rear combination lamp assembly from the body of vehicle using the flat-blade screwdriver.

  5. Remove the socket from the assembly by pressing it in and rotating it counterclockwise

  6. Pull the bulb out of the socket.

  7. Insert a new bulb into socket.

  8. Push the socket into the assembly and turn the socket clockwise.

  9. Reinstall the assembly to the body of the vehicle.
