Fuse/relay panel description

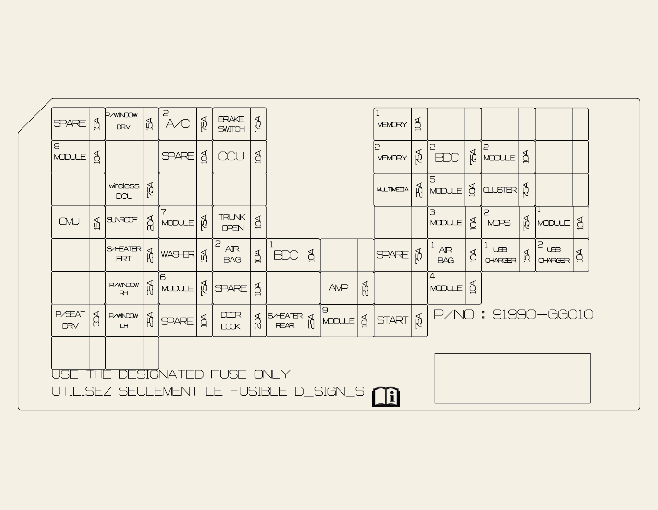

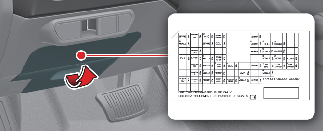

Driver's side fuse panel
Not all fuse panel descriptions in this manual may apply to your vehicle. They are accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.
Refer to the following table for a description of the fuse.
PDC Junction Block
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
A/C2 |
7.5A |
DATC (Dual Auto Temperature Control)/MTC (Manual Temperature Control), Engine Room Junction Block PTC (Positive Temperature Coefficient Heater) Heater Relay 1-2, Air con - Comp ( Smartstream G1.6 T-GDi) |
|
AIR BAG1 |
10A |
ACU (Airbag Control Unit), AIR BAG, ODS (Occupant (Central Communication Unit) Detection System) |
|
AIR BAG2 |
10A |
ACU (Airbag Control Unit), AIR BAG |
|
AMP |
25A |
AMP (Amplifier), LDC (Low voltage DC-DC Converter) 450 |
|
BDC1 |
10A |
BDC (Body Domain Controller), Bluetooth Unit, UWB (Ultra Wide Band) Unit, ATM LEVER(AT/CVT/DCT) |
|
BDC2 |
7.5A |
BDC (Body Domain Controller), BMS (Battery Management System) |
|
BRAKE SWITCH |
7.5A |
BDC (Body Domain Controller), Stop Lamp Switch |
|
CCU |
10A |
CCU (Central Communication Unit) |
|
CLUSTER |
7.5A |
Cluster, HUD (Head Up Display) |
|
DOOR LOCK |
20A |
Door Lock Relay, Door Unlock Relay, Two Turn Unlock/Dead lock Relay |
|
MDPS2 |
7.5A |
MDPS (Motor Driven Power Steering) |
|
MEMORY1 |
10A |
Cluster, MTC ((Manual Temperature Control)), DATC (Dual Auto Temperature Control), Mood Lamp, PDW Sensor |
|
MEMORY2 |
7.5A |
FRT USB Jack, Wireless Charging |
|
MODULE1 |
10A |
BDC (Body Domain Controller), DCU (Domain Control Unit), CCU (Central Communication Unit), VDMS, AVN Keyboard, Overhead Console E-CALL, ADAS (Advanced Driver Assistance System) PRK ECU (electronic Control Unit), AMP (Amplifier), CCNC (Connected Car Navigation & Cockpit), LDC (Low voltage DC-DC Converter), Engine Room Junction Block Power Outlet Relay |
|
MODULE2 |
10A |
CCU (Central Communication Unit), DCU (Domain Control Unit)(E-CALL) |
|
MODULE3 |
10A |
Power Window Switch (DRV) |
|
MODULE4 |
10A |
LKAS (Lane Keeping Assist System) Camera, ADAS (Advanced Driver Assistance System) DRV, Console Upper, ADAS (Advanced Driver Assistance System) Parking ECU (electronic Control Unit) |
|
MODULE5 |
10A |
ICC (In Cabin Camera) Unit, CCNC (Connected Car Navigation & Cockpit), MUT/VDMS Overhead Console PAB, I/S MIRROR ECM, DATC (Dual Auto Temperature Control)/MTC (Manual Temperature Control) PANEL, Console Upper, CDU, Wireless Charging, LDC (Low voltage DC-DC Converter) 200/450, AMP (Amplifier), SEAT(IMS), Front Door Switch, Head Lamp LH/RH, C/PAD Switch |
|
MODULE6 |
7.5A |
BDC (Body Domain Controller) |
|
MODULE7 |
7.5A |
P-LBM (Parking Lithium Battery Module), W/S Heated Glass LH/RH Coil |
|
MODULE8 |
10A |
Smart Key Interlock, Rain Sensor, Hazard, MUT/PTG_A(WAG), ICC (In Cabin Camera) Unit |
|
MODULE9 |
10A |
Power Window Switch (DRV), IMS ECU (Electronic Control Unit), Digital Key |
|
MULTIMEDIA |
25A |
CCNC (Connected Car Navigation & Cockpit), LDC (Low voltage DC-DC Converter)_200 |
|
OMU |
15A |
Out Side Mirror Motor DRV/PASS |
|
P/SEAT DRV |
30A |
Power Seat (DRV) |
|
P/WINDOW DRV |
15A |
Power Window DRV Up/Down Relay |
|
P/WINDOW LH |
25A |
Safety ECU (Electronic Control Unit) DRV/PASS/RL, Power Window Switch RL/PASS |
|
P/WINDOW RH |
25A |
Safety ECU (Electronic Control Unit) DRV/PASS/RR, Power Window Switch RR/PASS |
|
S/HEATER FRT |
25A |
Seat Heater/Vent (FRT) |
|
S/HEATER RR |
25A |
Seat Heater (RR) |
|
SPARE |
10A |
SPARE |
|
SPARE |
15A |
SPARE |
|
SPARE |
10A |
SPARE |
|
SPARE |
10A |
SPARE |
|
SPARE |
7.5A |
SPARE |
|
START |
7.5A |
Start Inhibit Relay, Inhibit Switch, IGN Switch |
|
SUNROOF |
20A |
SUNROOF |
|
TRUNK OPEN |
10A |
Trunk Open Relay |
|
USB CHARGER1 |
15A |
Rear USB Charger, Start/Stop Button |
|
USB CHARGER2 |
10A |
USB Charger |
|
WASHER |
15A |
WASHER |
|
wireless DCU |
7.5A |
DCU (Domain Control Unit) |
* MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

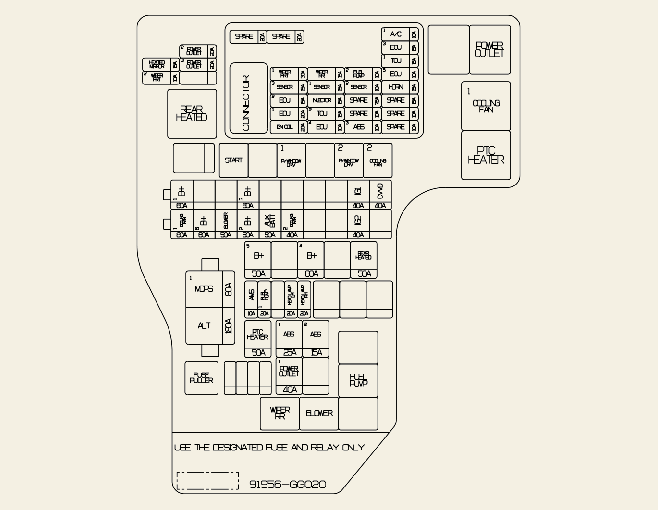

Engine compartment fuse panel
Refer to the following table for a description of the fuse.
Engine Room Junction Block
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
A/C1 |
10A |
A/C Relay |
|
ABS1 |
25A |
ESC (Electronic Stability Control) Unit, ABS (Anti-lock Brake System) Unit, EPB (Electronic Parking Brake) Unit |
|
ABS2 |
15A |
ESC (Electronic Stability Control) Unit, ABS (Anti-lock Brake System) Unit, EPB (Electronic Parking Brake) Unit |
|
ABS3 |
10A |
ESC (Electronic Stability Control) Unit, ABS (Anti-lock Brake System) Unit, EPB (Electronic Parking Brake) Unit |
|
ALT |
180A |
Alternator Output, MHSG (Mild Hybrid Starter and Generator) Output, BATT + |
|
AMS |
10A |
Battery Sensor |
|
AUX BATT |
50A |
P-LBM (Lithium Battery) |
|
B+1 |
60A |
PDC (IPS1, IPS2, IPS3, IPS4, IPS5, IPS6, IPS7) |
|
B+2 |
50A |
PDC (IPS8, IPS9, IPS10, IPS11, IPS12) |
|
B+3 |
60A |
PDC (Fuse - SPARE, P/SEAT DRV, S/HEATER FRT, P/WINDOW(LH/RH/DRV), OMU, SUNROOF, wireless DCU, MODULE8 |
|
B+4 |
60A |
PDC (Relay - Long Term Load Latch Relay, DOOR LOCK/UNLOCK Relay, Two Turn Unlock/Dead Lock Relay, Trunk/Tailgate Open Relay, Fuse - MULTIMEDIA, MEMORY1, MEMORY2, BDC1, BREAKE SWITCH, CCU, S/HEATER RR, DOOR LOCK, Trunk Open, Tailgate Open) |
|
B+5 |
50A |
PDC (Fuse - AMP, AIR BAG2, BMS, MODULE9, BATTERY C/FAN, A/C3, USB CHARGER2 |
|
B+6 |
60A |
Engine Room Junction Block PCB Block |
|
BLOWER |
50A |
Blower Motor Relay |
|
COOLING FAN1 |
80A |
Cooling Fan BLDC ( Brushless Direct Current Motor) |
|
COOLING FAN2 |
40A |
Cooling Fan 1, 2 Relay |
|
CVVD |
40A |
CVVD (Continuous Variable Valve Duration) Actuator |
|
ECU1 |
20A |
ECM (Engine Control Module) |
|
ECU2 |
15A |
ECM (Engine Control Module) |
|
ECU3 |
15A |
ECM (Engine Control Module) |
|
ECU4 |
10A |
ECM (Engine Control Module) |
|
ECU5 |
10A |
ECM (Engine Control Module) |
|
FUEL PUMP1 |
20A |
Fuel Pump Relay |
|
FUEL PUMP2 |
10A |
Fuel Pump Relay |
|
HEAD LAMP LH |
20A |
HEAD LAMP LH |
|
HEAD LAMP RH |
20A |
HEAD LAMP RH |
|
HEATED MIRROR |
15A |
ECU (Electronic Control Unit), Driver/Passenger Power Outside Mirror |
|
HORN |
15A |
HORN Relay |
|
IG1 |
40A |
IG1 Relay, ACC Relay, IGN SW |
|
IG2 |
40A |
IGN SW, IG2 Relay, Start Relay |
|
IGN COIL |
20A |
Ignition Coil |
|
INJECTOR |
15A |
Injector, MHSG (Mild Hybrid Starter and Generator) Signal |
|
MDPS1 |
80A |
MDPS (Motor Driven Power Steering) Unit |
|
POWER OUTLET1 |
40A |
Engine Room Junction Block Power Outlet Relay |
|
POWER OUTLET2 |
20A |
Power Outlet FRT |
|
POWER OUTLET3 |
20A |
Power Outlet Luggage |
|
PTC HEATER |
50A |
PTC (Positive Temperature Coefficient) Heater Relay |
|
REAR HEATED |
50A |
Rear Heated Relay |
|
SENSOR1 |
15A |
O2 Sensor |
|
SENSOR2 |
10A |
OCV (Oil Control Valve), Oil Level Sensor, PCSV (Purge Control Solenoid Valve), VIS (Variable Induction System)/VOP (Variable Oil Pump), RCV (Recirculation Control Valve)/OPSV, CCV (Canister Close Valve) |
|
SENSOR3 |
15A |
Cooling Fan BLDC ( Brushless Direct Current Motor), Cooling Fan Hight Relay, Cooling Fan Low Relay |
|
SPARE |
15A |
SPARE |
|
SPARE |
20A |
SPARE |
|
SPARE |
20A |
SPARE |
|
SPARE |
7.5A |
SPARE |
|
SPARE |
10A |
SPARE |
|
SPARE |
10A |
SPARE |
|
SPARE |
10A |
SPARE |
|
TCU1 |
15A |
TA8 8AT(Automatic Transmission), TCU (Transmission Control Unit), 6AT TCU, CVT (Continuously Variable Transmission) TCU, 7DCT(Dual Clutch Transmission) TCU |
|
TCU2 |
15A |
7DCT(Dual Clutch Transmission) TCU (Transmission Control Unit), 8AT(Automatic Transmission) TCU |
|
WIPER FRT1 |
30A |
Wiper Motor, Wiper FRT Low Relay |
|
WIPER FRT2 |
10A |
BDC |
|
WIPER RR |
15A |
Rear Wiper |
* 1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
|
Relay Name |
Type |
|---|---|
|
Blower Relay |
MICRO |
|
Cooling Fan1 Relay |
MINI |
|
Cooling Fan2 Relay |
MICRO |
|
Fuel Pump Relay |
MINI |
|
Power Window DRV1 Relay |
MICRO |
|
Power Window DRV2 Relay |
MICRO |
|
Power Outlet Relay |
MINI |
|
PTC Heater Relay |
MICRO |
|
Rear Heated Relay |
MINI |
|
Start Relay |
MICRO |
|
Wiper RR Relay |
MICRO |
