Blind-Spot Collision-Avoidance Assist settings

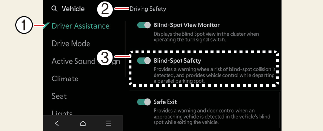

Blind-Spot Safety

  1. Driver Assistance

  2. Driving Safety

  3. Blind-Spot Safety

With the vehicle on, select SetupVehicleDriver AssistanceBlind-Spot Safety on the infotainment system.

  • Blind-Spot Safety: Blind-Spot Collision-Avoidance Assist will warn and braking assist will be applied depending on the collision risk levels.

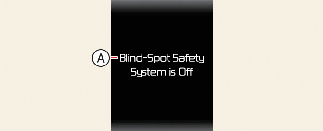

A: Blind-Spot Safety System is Off

When activating Blind-Spot Collision-Avoidance Assist or restarting the vehicle with this function activated, the warning light on the outside rear view mirror will appear for approximately 3 seconds.

When the vehicle is restarted with Blind-Spot Collision-Avoidance Assist inactivated, the warning message will appear on the cluster.

WARNING

IfBlind-Spot Safety is deselected, you cannot get help from Blind-Spot Collision-Avoidance Assist. The driver should always be aware of the surroundings and drive safely.

NOTICE

If the vehicle is restarted, Blind-Spot Collision-Avoidance Assist will maintain the last setting.

Warning Methods

  1. Driver Assistance

  2. Warning Methods

The Warning Methods can be set with the vehicle on. Select SetupVehicleDriver AssistanceWarning Methods from the settings menu in the infotainment system to change the following settings:

  • Warning Volume: Adjusts the volume of the warning sound.

  • Haptic Warning: Activate the steering wheel vibration warning.

  • Blind-Spot Safety warning volume: If the Blind-Spot Safety warning volume is deactivated, the warning volume will be turned off.

  • Driving Safety Priority: Lowers all other audio volumes when the Driving Safety system sounds a warning.

NOTICE
  • If you change the Warning Methods, it can be applied to each function of the driver assistance system. Please check and change it in each function.

  • If the vehicle is restarted, Warning Methods will maintain the last setting.

  • The setting menu may not exist based on vehicle specification.

  • The Warning Volume and Haptic Warning cannot be turned off at the same time. When one of the warning is turned off the other is activated.
