Fuse/relay panel description

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

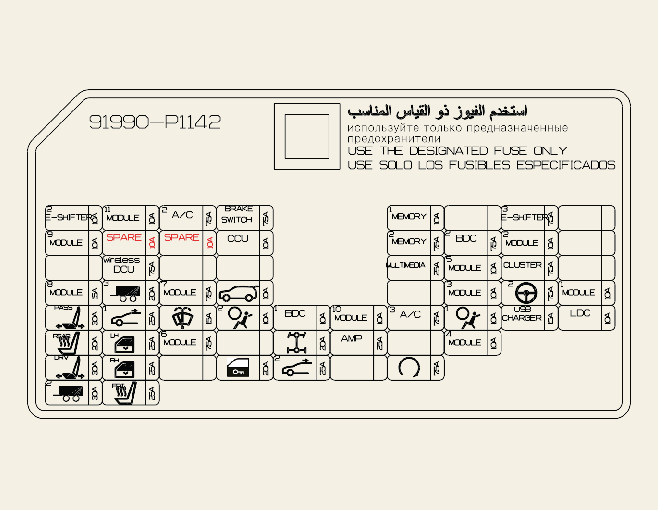

Driver's side fuse panel

ICU Junction Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

E-SHIFTER2

10 A

SCU, Electronic ATM Shift Lever

MODULE11

10 A

Active Air Flap Unit, Blower Relay

A/C2

7.5 A

E/R Junction Block (PTC Heater Relay, E-CVVT Relay, Blower Relay), A/C Controller, Manual A/C

BRAKE SWITCH

7.5 A

Stop Lamp Switch, BDC

MEMORY1

10 A

DCU, A/C Controller, Manual A/C, ADAS Unit (Parking), Rear Corner Radar LH/RH, Console Upper, CDCU, Cluster Unit, Low DC-DC Converter, BDC, Mood Lamp Driver/Passenger, Head-Up Display

E-SHIFTER3

7.5 A

SCU, Electronic ATM Shift Lever

MODULE9

10 A

Hazard Switch, In-Cabin Camera (ICC) Unit

CCU

10 A

CCU

MEMORY2

7.5 A

CCNC Keyboard, Console Tray (wireless Charger)

BDC2

7.5 A

BDC

MODULE2

10 A

CCU, Stop Lamp Switch

wireless DCU

7.5 A

DCU

MULTIMEDIA

25 A

CCNC Head Unit

MODULE5

10 A

Low DC-DC Converter, DCU, Electric Chromic Mirror, Overhead Console Assembly, Front Camera, Console Tray (wireless Charger), CCNC Head Unit, A/C Controller, Head Lamp LH/RH, GCU, Driver Seat, AMP (Amplifier), Console Upper Switch

CLUSTER

7.5 A

Head-Up Display, Cluster Unit

MODULE8

15 A

Power Window Main Switch, Outside Mirror Drive Unit

TRAILER3

20A

Trailer (Electronic Brake Controller)

MODULE7

7.5 A

12V Lithium Battery, Front Heated Relay

TAILGATE OPEN

10 A

Liftgate Relay

MODULE3

10 A

Power Window Main Switch

MDPS3

7.5 A

MDPS Unit

MODULE1

10 A

BDC, External AMP, ADAS Unit (Parking), CCU, CCNC Head Unit, Low DC-DC Converter, Manual A/C, CCNC Keyboard, DCU, Overhead Console Assembly

P/SEAT(PASS)

30 A

Passenger Power Seat Switch

SUNROOF1

25 A

Sunroof Controller (Glass Motor)

WASHER

15 A

Multifunction Switch

AIR BAG2

10 A

SRS Control Module

BDC1

10 A

BDC, Bluetooth Unit, Sports Mode Switch, Front/Rear UWB Unit LH/RH

MODULE10

10 A

Rain sensor, Key Interlock

A/C3

7.5 A

DATC UNIT, MTC UNIT

AIR BAG1

10 A

Air bag Control Unit

USB CHARGER

15 A

Front/Rear USB Charger Connector

LDC

10 A

Low DC-DC Converter, Console Tray(wireless Charger), ADAS Unit(Parking), Rear Corner Radar LH/RH, Cluster Unit, Manual A/C, Head-Up Display, CCNC Keyboard

S/HEATER(REAR)

20 A

Rear Seat Heater Control Module

P/WINDOW(LH)

25 A

Driver Safety Power Window Module, Rear Power Window Switch LH

MODULE6

7.5A

BDC

4WD

20 A

4WD ECU

AMP

25 A

AMP (Amplifier)

MODULE4

10 A

C/PAD Switch, ADAS Unit (Driving), Front/Rear Corner Radar LH/RH, ADAS Unit (Parking), 4WD ECU, CDCU

P/SEAT(DRV)

30 A

Driver Power Seat Switch, Driver IMS Control Module

P/WINDOW(RH)

25 A

Passenger Safety Power Window Module, Passenger Power Window Switch RH, Rear Power Window Switch RH

DOOR LOCK

20 A

Center Door Lock/Unlock Relay

SUNROOF2

25 A

Sunroof Controller (Blind Motor)

START

7.5 A

BDC, PCM

TRAILER2

30A

Trailer (CTM2 Unit)

S/HEATER

(FRT)

25 A

Front Air Ventilation Seat Control Module, Front Seat Heater Control Module

* 1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

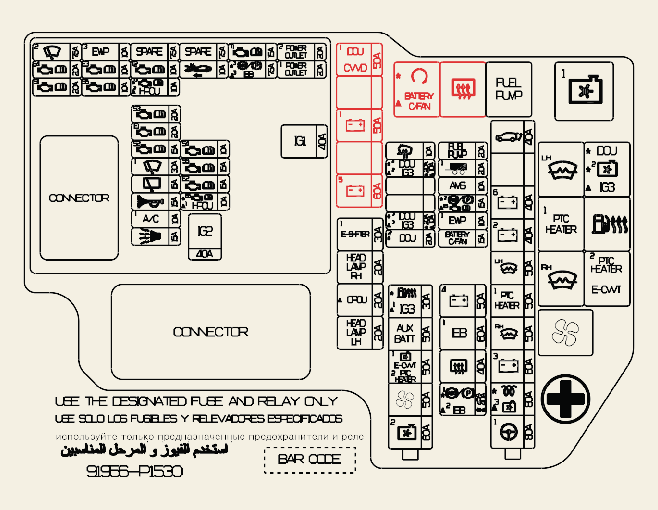

Engine compartment fuse panel

Engine Room Junction Block

Fuse Name

Fuse rating

Circuit Protected

MULTI FUSE1

MDPS1

80 A

Motor Driven Power Steering Unit

GLOW

80 A

Glow plug Control Unit

B+3

60 A

PDC Junction Block (Fuse - E-SHIFTER2, TRAILER2, P/SEAT(DRV), P/SEAT(PASS), S/HEATER FRT, S/HEATER RR, SUNROOF1, MODULE11, P/WINDOW LH, P/WINDOW RH, MODULE8, TRAILER3, WIRELESS DCU, MODULE9)

W/S HEATED GLASS RH

50 A

Windshield Heated Relay RH

PTC HEATER1

50 A

PTC Heater

W/S HEATED GLASS LH

50 A

Windshield Heated Relay LH

B+2

40 A

PDC Junction Block (IPS8/IPS9/IPS10/IPS11/IPS12)

B+6

40 A

PDC Junction Block (Fuse - AMP, MODULE10, AIRBAG2)

POWER TAILGATE

40 A

Power Tailgate Open

MULTI FUSE2

COOLING FAN2

60 A

Cooling Fan Controller

BLOWER

50 A

Blower Relay

COOLING FAN1

50 A

Cooling Fan Relay

E-CVVT

50 A

E-CVVT Relay (Theta engine)

PTC HEATER2

50 A

PTC Heater Relay

AUX BATT

50 A

20AH Lithium Type Battery

FUEL FILTER HEATER

30 A

FUEL FILTER HEATER

FUSE

B+4

50 A

PDC Junction Block (Fuse - MULTIMEDIA, MEMORY1, MEMORY2, CCU, BDC1, BRAKE SWITCH, SUNROOF2, 4WD, DOOR LOCK, TAILGATE OPEN)

REAR HEATED

40 A

Rear Heated Relay

ABS1/EPB1

25 A

ESP (Electronic Stability Program Control Module)

DCU1

50 A

Domain Control Unit

CVVD

50 A

CVVD ACTR

B+1

50 A

PDC Junction Block (IPS1/IPS2/IPS3/IPS4/IPS5/IPS6/IPS7)

B+5

60 A

PCB Block (Fuse - A/C1,HORN,IG1,IG2, Relay-MAIN, WIPER)

E-SHIFTER1

30 A

SCU (System Control Unit)

HEAD LAMP RH

20 A

Front Head Lamp RH

HEAD LAMP LH

20 A

Front Head Lamp LH

FUEL PUMP

20 A

Fuel Pump Relay

TRAILER1

20 A

Trailer CTM2 type (w/ e-brake)

AMS

10 A

Battery Sensor

ABS2/EPB2

15 A

ESP (Electronic Stability Program Control Module)

HEATED MIRROR

10 A

Outside Mirror Heated

DCU4

20 A

Domain Control Unit

DCU3

20 A

Domain Control Unit

DCU2

20 A

Domain Control Unit

PCB Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

IG2

40 A

IG2 Relay

IG1

40 A

IG1 Relay, ACC Relay

FRT WIPER2

7.5 A

Front Wiper (Low) Relay, BDC (Body Domain Controller)

ECU 4

20 A

Power train Control Module

SENSOR1

20 A

Ignition Coil #1~#4

ECU 3

10 A

Power train Control Module

SENSOR5

10 A

Fuel Pump Relay

TCU2

10 A

Transmission Control Module

TCU3

10 A

Transaxle Range Switch

SENSOR3

20 A

ECM (Engine Control Module)

ECU1

20 A

Power train Control Module

SENSOR2

15 A

Oxygen Sensor (Up/Down)

FR WIPER1

30 A

Wiper Main Relay, Front Wiper (Low) Relay

RR WIPER

15 A

Wiper Main Relay, ICU Junction Block (Rear Wiper Relay)

HORN

15 A

Horn Relay

B/ALARM HORN

15 A

Burglar Alarm Horn Relay

FCA

10 A

Front Radar

SENSOR4

10 A

[Smartstream G2.0] Oil Control Valve #1/#2(Intake/Exhaust), Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Purge Control Solenoid Valve, Colling Fan Controller, Air Conditioner Comp Relay, E/R Junction Block(Cooling Fan Relay High) [Smartstream G2.5 T-GDi] Oil Control Valve #2(Exhaust), Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Cooling Fan Controller, Air Conditioner Comp Relay

SENSOR6

15 A

Injector #1 ~ #4

ECU2

15 A

Power train Control Module

ECU6

10 A

Power train Control Module

TCU1

15 A

Transmission Control Module

ABS3/EPB3

7.5 A

ESP (Electronic Stability Program) Control Module

POWER OUTLET2

20 A

Front Power Outlet

POWER OUTLET1

20 A

Luggage Power Outlet

* 1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

Relay

Refer to the following table for the relay type.

Relay Name

Symbol

TYPE

Rear Heated Relay

MICRO

Start Relay

MICRO

Fuel Pump Relay

MICRO

Cooling Fan Relay High

MINI

PTC Heater Relay #1

MICRO

Fuel Filter Heating Relay

MICRO

PTC Heater Relay #2 (Disel)

E-CVVT Relay (Smartstream G2.5 GDi)

MICRO

Blower Relay

MICRO

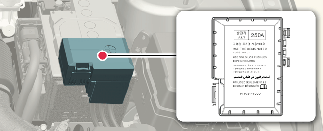

Engine compartment fuse panel (Battery terminal cover)

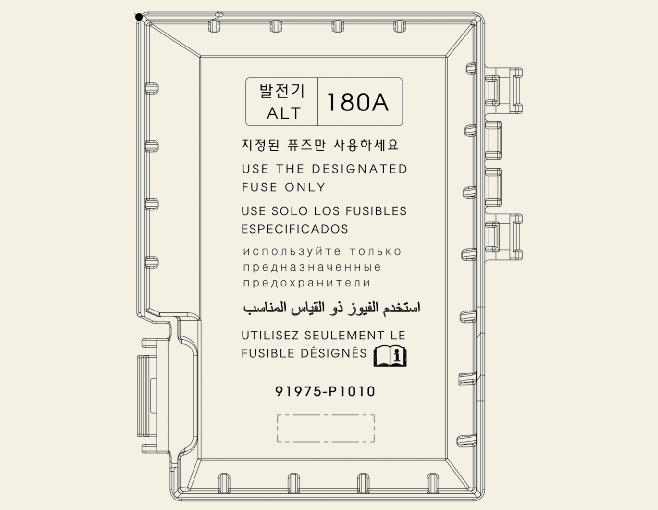

Type A

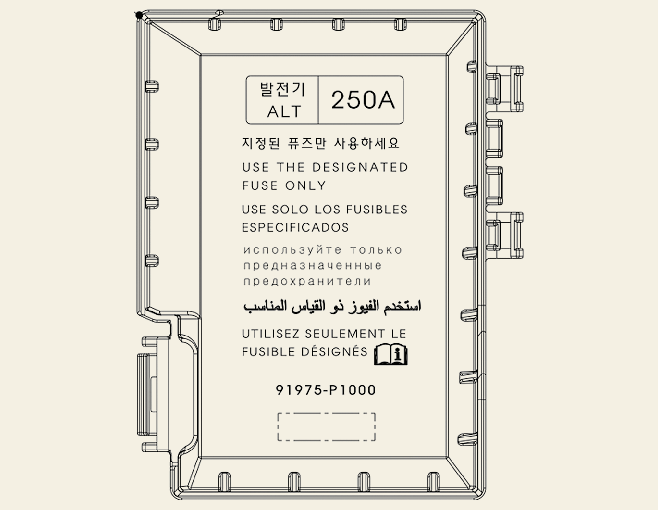

Type B
