Opening/closing the charging door

OOV035089R
OOV035090
OOV035091

Operation

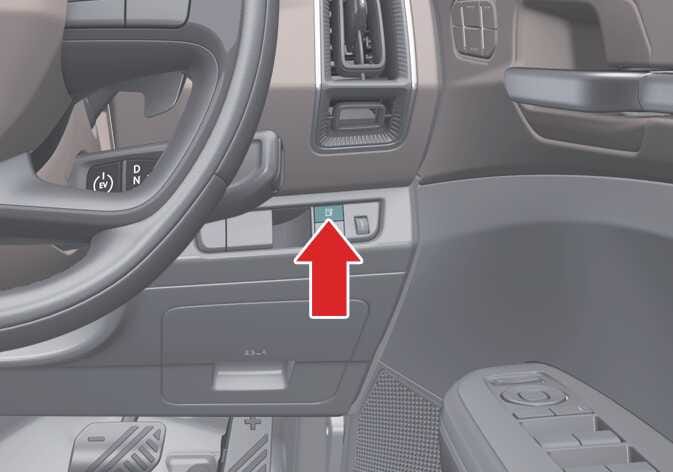

  • Push the charging door open/close button on the instrument panel.

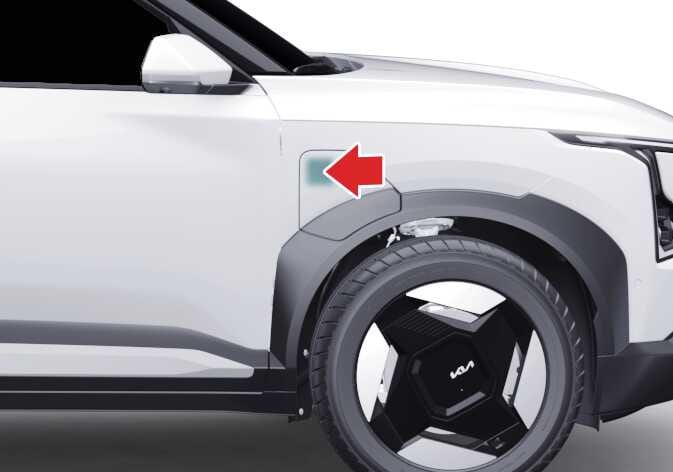

  • Push the charging door open pattern located at charging door outer cover to open.

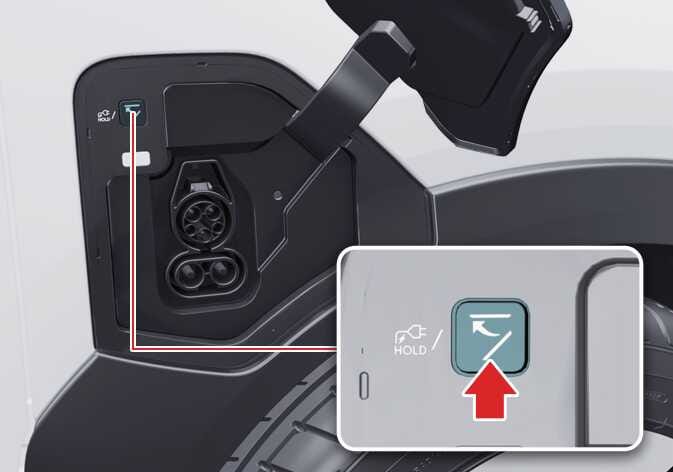

    Push the charging door close button located at inner part of the charging door to close.

  • The charging door also can be opened or closed by using voice recognition ( ).

TIP

  • The charging door automatically closes when:

    • Approximately 2 minutes have passed after the charging connector is disconnected

    • The door is opened and the charging connector is not connected for approximately 2 minutes

    • The gear is not in P (Park)

  • After replacing battery (12 volt), open and close the charging door once to check that the charging door automatic opening mechanism is functioning properly.

WARNING

Do not leave the vehicle with the charging door open. An open charging door may indicate that the vehicle door has been unlocked and may be subject to vehicle theft.

CAUTION

  • The charging door opens to the right. Check the surrounding whilst the charging door is open or close. Be aware of your head or limbs from being hit or stuck to the charging door.

  • Do not hold the hinge to prevent damaging the charging door and causing other accidents.

NOTE

  • If the charging door does not open because ice has formed around it, tap lightly or push on the door to break the ice and release the door. If necessary, use hand temperature to melt down the ice or move the vehicle to a warm place and allow the ice to melt. Do not pry on the charging door or use unauthorised tools to open the charging door.

  • Make sure that the charging door is closed before driving the vehicle. If the charging door is opened, mechanical parts of the charging door can be damaged. Dust, moisture or other foreign substances may enter. The charging door is not fully closed without closing the inlet cover.

  • After closed the charging door, be sure to check the warning light is off.

  • After charging the vehicle, close the charging inlet by the charging inlet cover properly. If the charging inlet cover is closed improperly, the charging inlet and the charging door can be damaged.

  • Do not pry on the charging door whilst the charging door is opening. The charging door may stop moving. Also, the electrical mechanism of the charging door and its related parts can be severely damaged.

  • Whilst washing the vehicle, do not spray a high pressure water to the charging door directly. The high pressure can damage the charging door.

For more details, refer to Charging your electric vehicle.
