How to check the symbol on the charging label (For Europe)

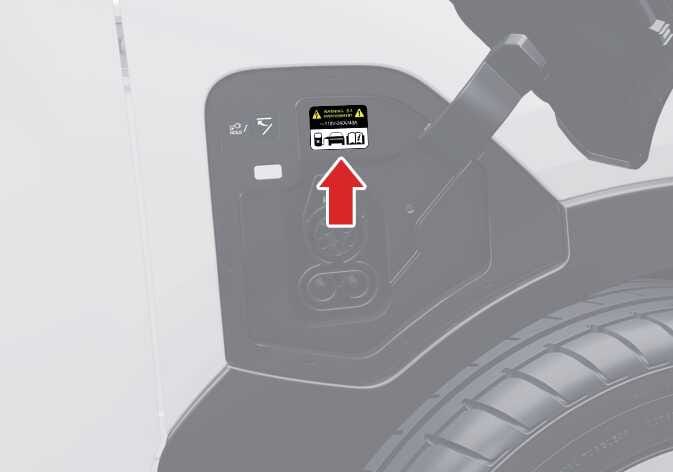

Vehicle charging INLET

Charging connector OUTLET
OOVQ015010L
OSW085008L

<Symbol location and application example>
Figure 1. Type A
OOVQ015006L
Figure 2. Type B
OOVQ015007L

Precautions for charging AC and Trickle charger* (Portable charging cable*) (AC charging)

  1. After opening the charging door, check the charging symbol at the bottom of the warning label.

  2. Check the charging connector symbol of the AC and Trickle charger cable.

  3. After checking the alphabet letter of the charging symbol, proceed the charging step.

    Refer to How to check the symbol on the charging label (For Europe).

  4. Risks of failure, fire, injury, etc. are expected when using the charging connector with an unmatched symbol.

: Depending on your region, this cable may not be provided in your vehicle.

Precautions for DC charging (DC charging)

  1. After opening the charging door, check the charging symbol at the bottom of the warning label.

  2. Check the charging connector symbol at the high speed charging station.

  3. After checking the alphabet letter of the charging symbol, proceed the charging step.

    Refer to How to check the symbol on the charging label (For Europe).

  4. Risks of failure, fire, injury, etc. are expected when using the charging connector with an unmatched symbol.

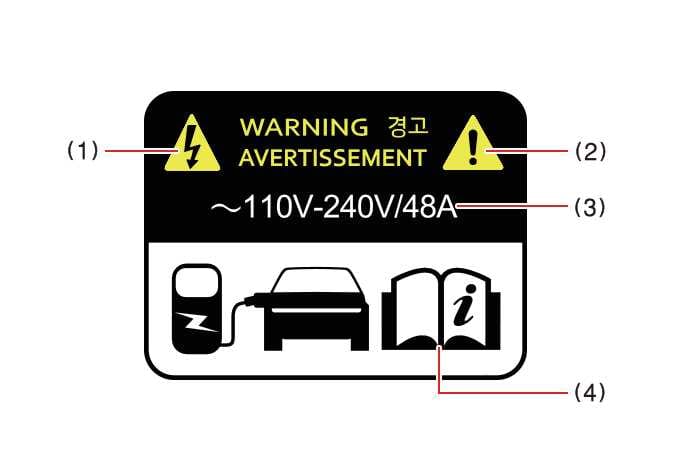

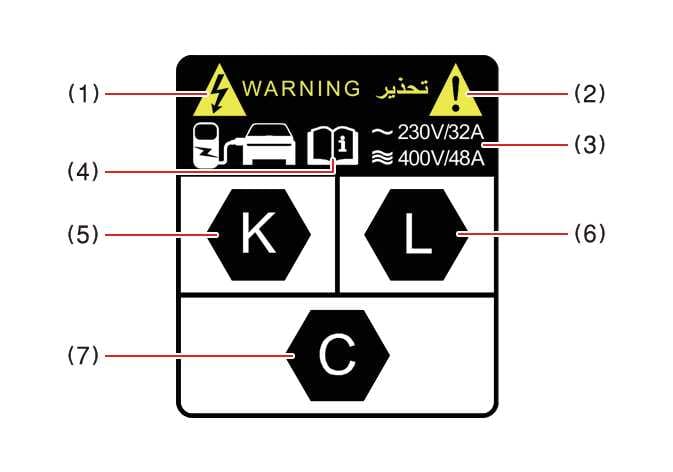

Electric charging label (For Europe)

OOVQ015011L
OOVQ015012L

  1. Warning for high voltage

  2. Symbol for charging door

  3. Charging voltage and current

    ( ): AC Single phase

    ( ): AC 3 phase

  4. For further details, refer to How to check the symbol on the charging label (For Europe).

(5)–(7): Symbols for charging type. For further details, refer to How to check the symbol on the charging label (For Europe).

Electric charging label symbol table (For Europe)

AC and Trickle charger* charging

: Depending on your region, this cable may not be provided in your vehicle.

Supply type

Standard

Configuration

Type of Accessory

Voltage range

Identifier

AC

EN 62196-2

TYPE 2

Vehicle connector and vehicle inlet

≤480V RMS
DC charging

Supply type

Standard

Configuration

Type of Accessory

Voltage range

Identifier

DC

EN 62196-3

FF

Vehicle connector and vehicle inlet

50V to 500V

200V to 920V
