Detecting sensors

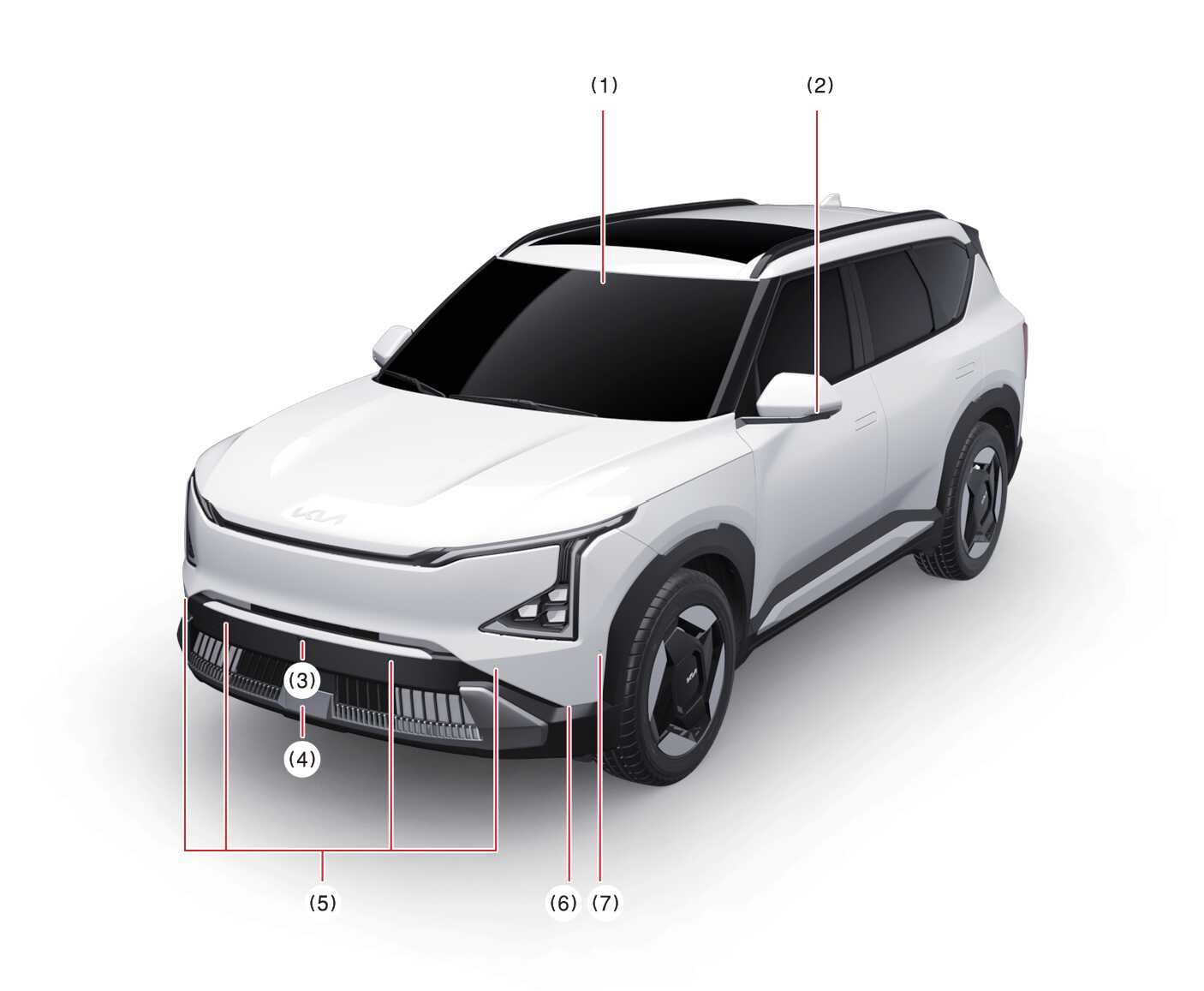

Figure 1. Front
OOV055001

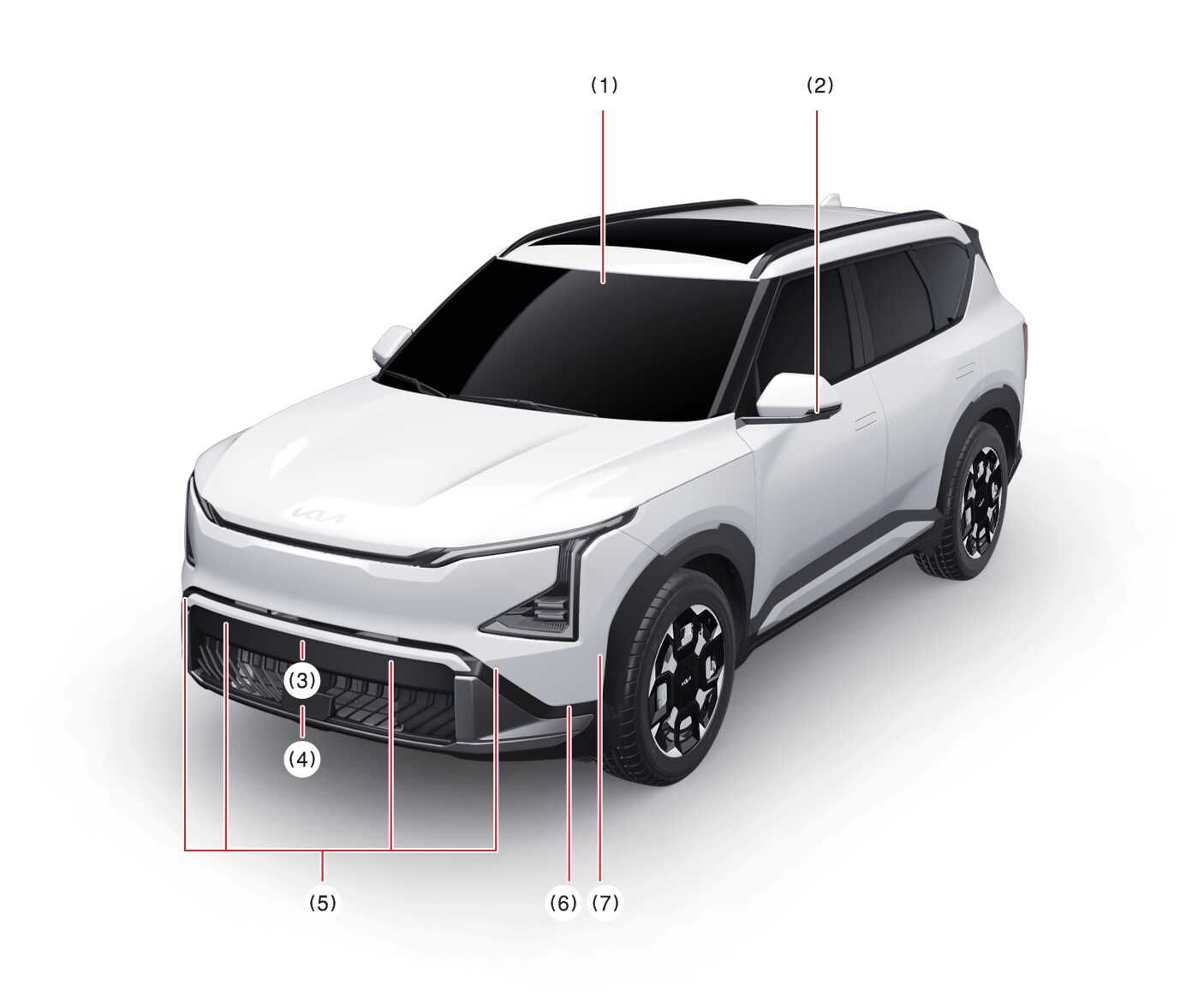

Figure 2. Front (GT-Line)
OOVGTL055001

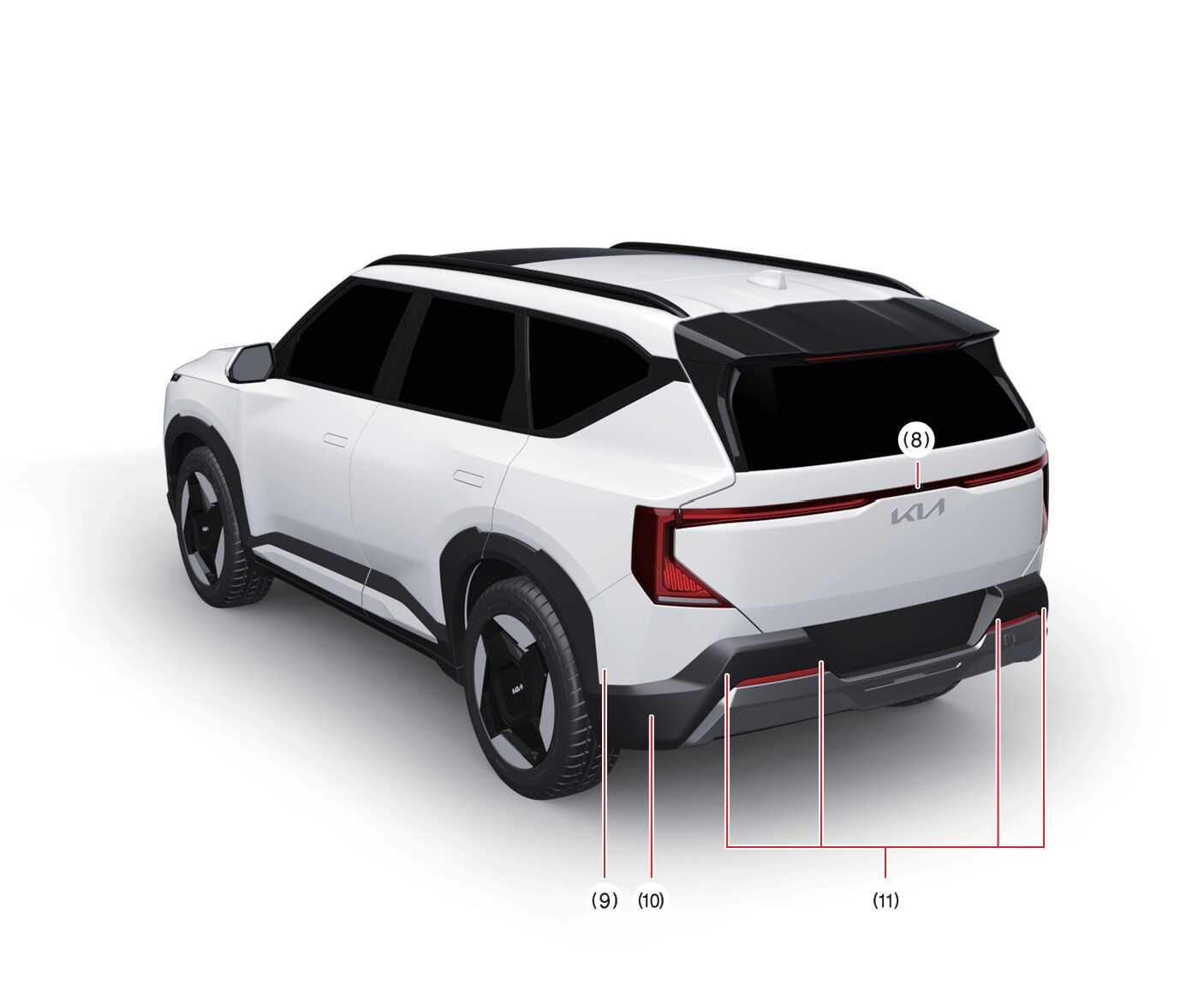

Figure 3. Rear
OOV055002

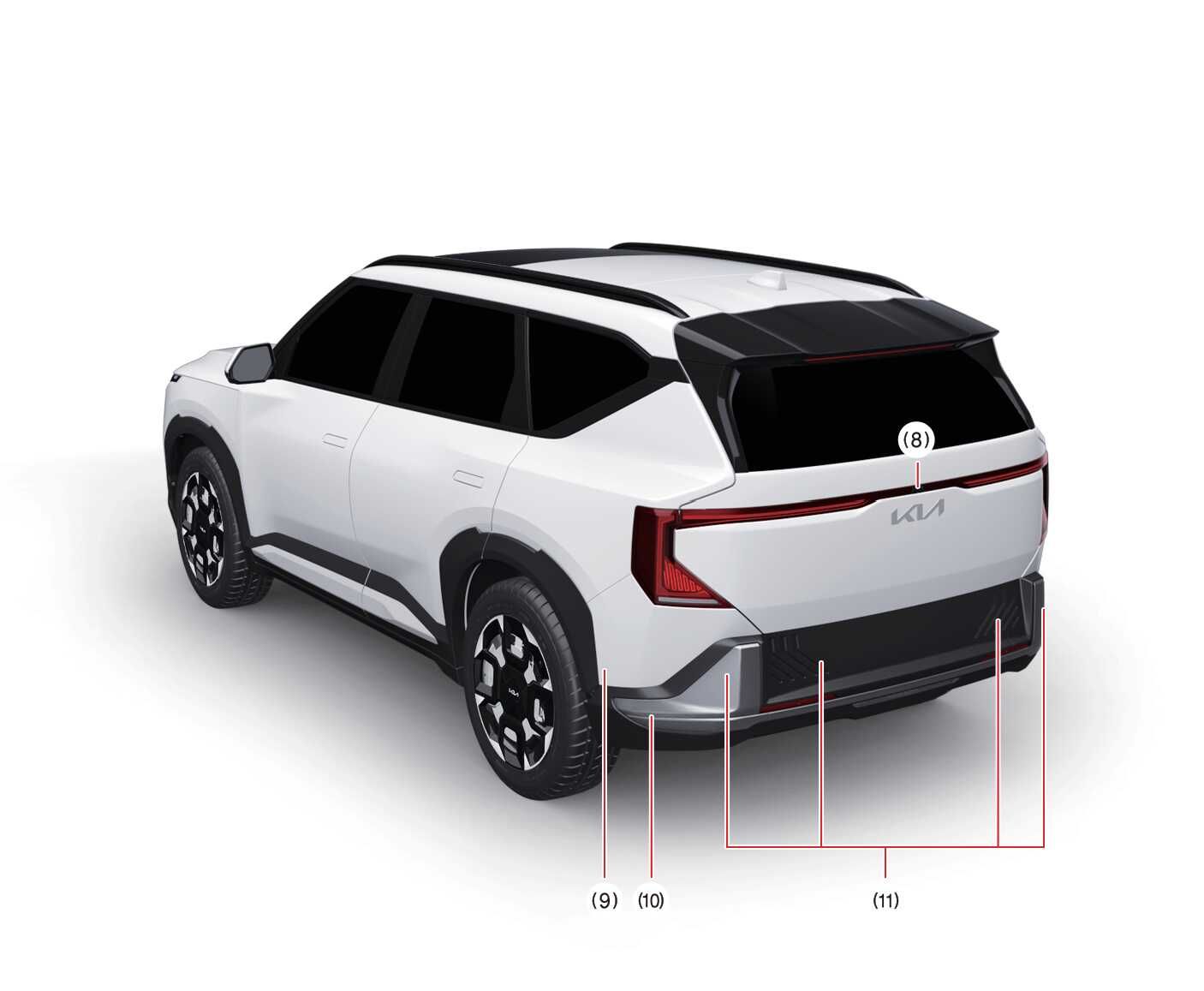

Figure 4. Rear (GT-Line)
OOVGTL055002

Refer to the picture above for the detailed location of the detecting sensors.

: if equipped

No

Sensor

Function

1

Front view camera*

  • Forward Collision-Avoidance Assist (FCA)*

  • Lane Keeping Assist (LKA)*

  • Intelligent Speed Limit Assist (ISLA)*

  • Driver Attention Warning (DAW)*

  • Smart Cruise Control (SCC)*

  • Lane Following Assist (LFA)*

  • Highway Driving Assist (HDA)*

2

Wide-side view camera*

  • Blind-Spot View Monitor (BVM)*

  • Surround View Monitor (SVM)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

  • Parking Collision-Avoidance Assist (PCA)*

3

Wide-front view camera*

  • Surround View Monitor (SVM)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

  • Parking Collision-Avoidance Assist (PCA)*

4

Front radar*

  • Forward Collision-Avoidance Assist (FCA)*

  • Smart Cruise Control (SCC)*

  • Highway Driving Assist (HDA)*

5

Front ultrasonic sensors*

  • Parking Distance Warning (PDW)*

  • Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

6

Front corner radar*

  • Forward Collision-Avoidance Assist (FCA)*

  • Smart Cruise Control (SCC)*

  • Highway Driving Assist (HDA)*

7

Front side ultrasonic sensors*

  • Parking Distance Warning (PDW)*

  • Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

8

Wide-rearview camera

  • RearView Monitor (RVM)*

  • Surround View Monitor (SVM)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

  • Forward/Side/Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*

9

Rear side ultrasonic sensors*

  • Remote Smart Parking Assist 2 (RSPA 2)*

  • Parking Distance Warning (PDW)*

10

Rear corner radar*

  • Forward Collision-Avoidance Assist (FCA)*

  • Blind-Spot Collision-Avoidance Assist (BCA)*

  • Safe Exit Warning (SEW)*

  • Safe Exit Assist (SEA)*

  • Highway Driving Assist (HDA)*

  • Rear Cross-Traffic Collision-Avoidance Assist (RCCA)*

  • Smart Cruise Control (SCC)*

11

Rear ultrasonic sensors

  • Parking Distance Warning (PDW)*

  • Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist 2 (RSPA 2)*
