Automatic climate control system

The automatic climate control system cools or heats the inside of the vehicle for the comfort of you and your passengers.

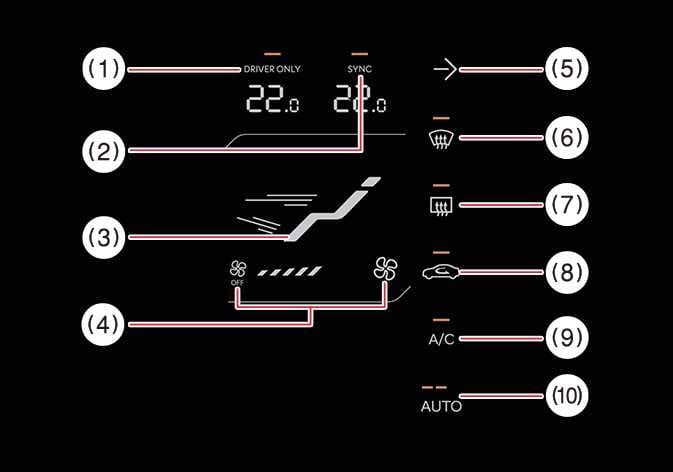

Figure 1. Climate control display
KIAPB021
OSVM086010L

  1. DRIVER ONLY select icon

  2. SYNC icon: (if equipped)

    • Touch the SYNC icon to adjust the driver and passenger side temperature to the same value.

  3. Mode selection icon

  4. Fan speed control/OFF icon

  5. Infotainment system screen ON/OFF icon

  6. Front-windshield defroster icon

  7. Rear-window defroster icon

  8. Air intake control icon

  9. Air conditioning A/C icon

  10. AUTO (automatic control) icon

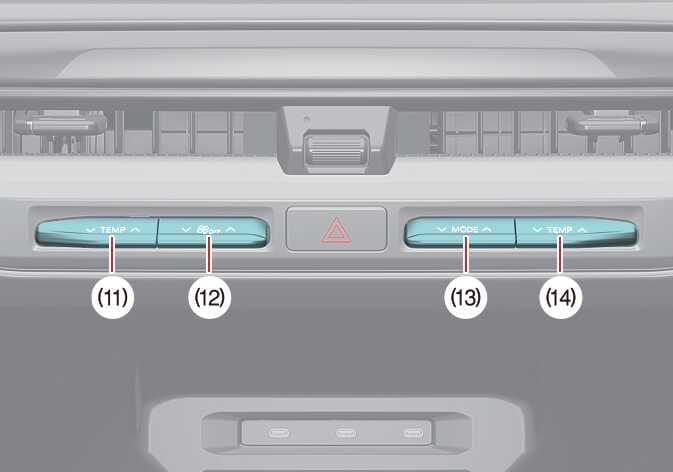

  11. Driver's side temperature control lever

  12. Fan speed control lever

    Fan speed control/OFF lever: (if equipped)

  13. Mode selection lever

  14. Passenger's side temperature control lever: (if equipped)

NOTE

Operating the blower fan when the vehicle is in POWER ON position may cause the 12V battery to discharge. Only operate the blower fan when the vehicle is running.
