Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

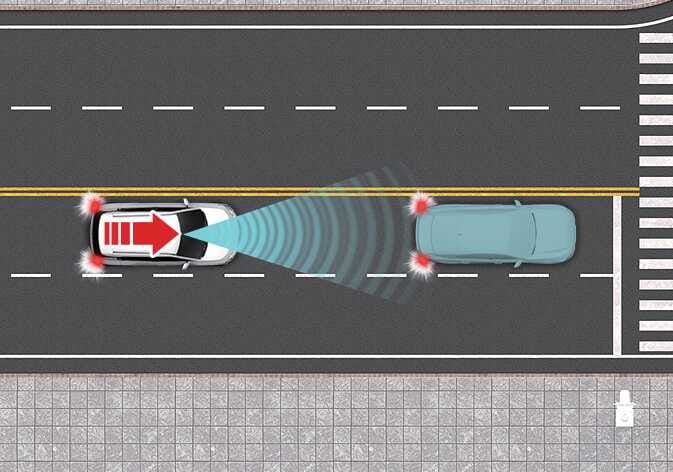

Basic function

OSVM106002L

Forward Collision-Avoidance Assist detects a vehicle, motorcyclist, a pedestrian, or a cyclist ahead on the road and may warn you of a possible collision with a warning message on the instrument cluster and a warning sound. Also, Forward Collision-Avoidance Assist may assist with braking your vehicle to help reduce collision speed or avoid a collision.

Forward Collision-Avoidance Assist will detect vehicles ahead and adjacent lanes even at high speeds. If the driver makes a lane change at those speeds, your vehicle will apply emergency braking to mitigate or avoid a collision.: (if equipped)

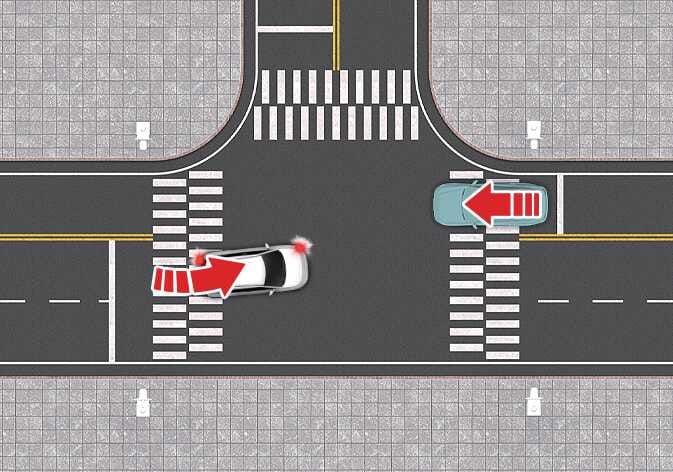

Junction Turning function

OSVM106003L

Junction Turning function can help avoid a collision with an oncoming vehicle, motorcyclist or cyclist in an adjacent lane when turning left at a crossroad with the turn signal on by applying emergency braking.

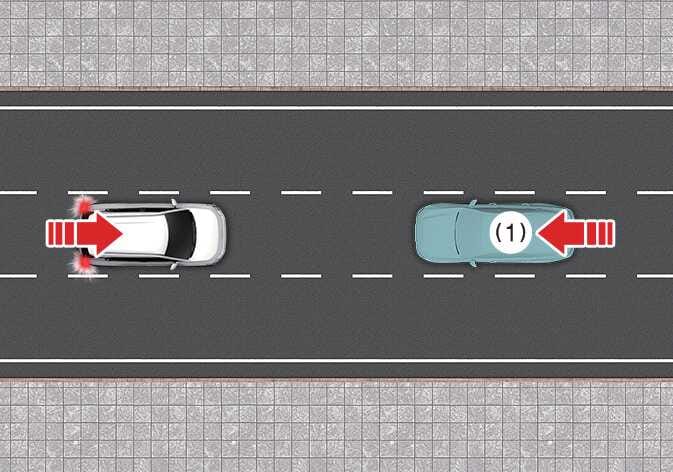

Direct Oncoming function

OSVM106005L

  1. Oncoming vehicle

Direct Oncoming function helps reduce the speed in case of collision when with a vehicle and a motorcyclist approaching from the opposite side is detected.

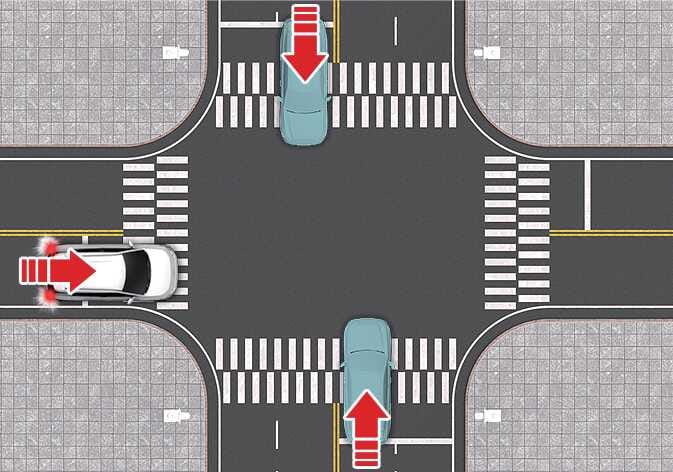

Junction Crossing function: (if equipped)

OSVM106004L

Junction Crossing function will help avoid a collision with oncoming vehicles on the left or right side when crossing an intersection by applying emergency braking.

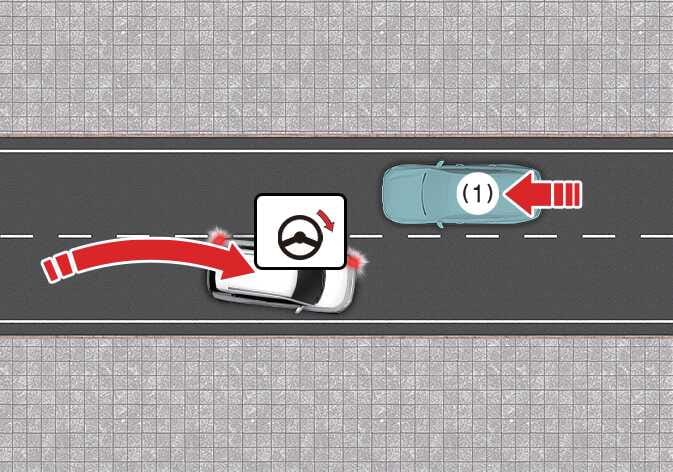

Lane-Change Oncoming function: (if equipped)

OSVM106006L

  1. Oncoming vehicle

Lane-Change Oncoming function will help avoid a collision with oncoming vehicles or motorcyclist when changing lanes by assisting the driver's steering.

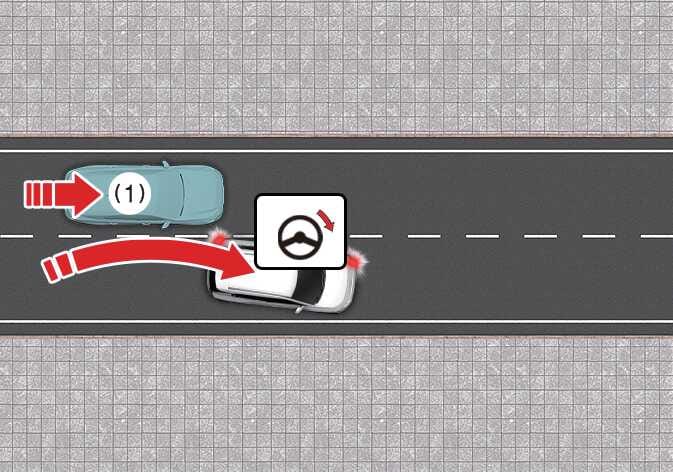

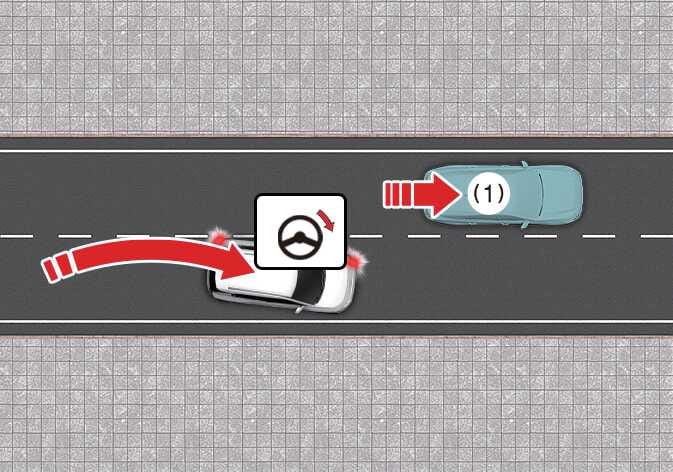

Lane-Change Side function: (if equipped)

OSVM106008L
OSVM106007L

  1. Approaching car from side

Lane-Change Side function will help avoid a collision with vehicles or motorcyclist in the next lane when changing lanes by assisting the driver's steering.

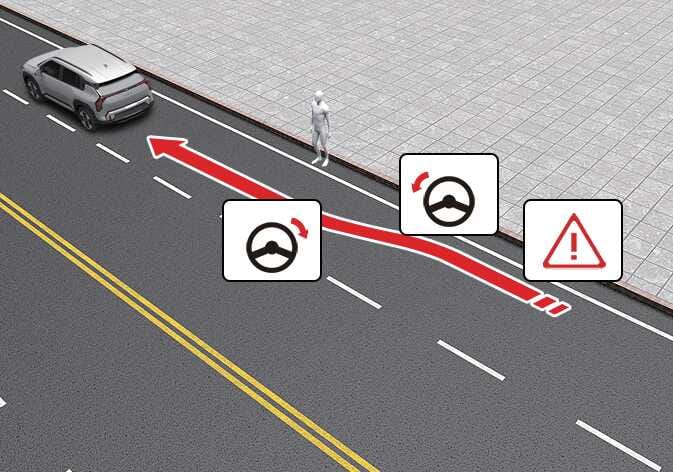

Evasive Steering Assist function: (if equipped)

OSVM106009L

  • Driver Steering Assist

    If a possible collision with a vehicle, pedestrians, cyclists or motorcyclist is detected ahead and the driver steers to avoid the collision, Evasive Steering Assist will assist the driver in steering.

  • Evasive Steering Assist

    Evasive Steering Assist function will help avoid a collision with a vehicle, pedestrian, cyclist, or motorcyclist in front of the car in the same lane. When a risk of collision is detected, Evasive Steering Assist function will warn the driver and assist the driver's steering if they move the steering wheel.

Detecting sensor

Please refer to Detecting sensor(s) for the sensor locations.

WARNING

Take the following precautions to maintain optimal performance of the detecting sensor:

  • Never disassemble the detecting sensor or sensor assembly, or cause any damage to it.

  • If the detecting sensors have been replaced or repaired, have your vehicle inspected by an authorized Kia dealer as soon as possible.

  • If the radar or around the radar experiences an impact, Forward Collision-Avoidance Assist may not operate properly even if a warning message is not displayed on the cluster. Have your vehicle inspected by an authorized Kia dealer.

  • Never install any accessories or stickers on the front windshield, or tint the front windshield.

  • Pay extreme caution to keep the front view camera dry.

  • Never place any reflective objects (for example, white paper, mirror) over the instrument panel.

  • Do not place any objects near the front windshield or install any accessories on the front windshield. It can affect the performance of the defogging and defrosting function of the climate control system, which may prevent the Driver Assistance systems from operating.

  • Do not apply license plate frame or objects, such as a bumper sticker, film or a bumper guard, near the front radar cover.

  • Always keep the front radar and cover clean and free of dirt and debris.

    Use only a soft cloth to wash the vehicle. Do not spray pressurized water directly on the sensor or sensor cover.

  • The genuine Kia front/front corner/rear corner radar sensor covers are parts with quality and performance ensured. If arbitrarily applying paint on or changing the cover, Forward Collision-Avoidance Assist may not function properly.

    Use only Kia Genuine Parts or those of an equivalent standard with proven quality and performance to repair or replace the radar sensor covers.

  • The function may not work properly when the bumper has been replaced, or the surroundings of the front corner radar or rear corner radar has been damaged or paint has been applied.

  • If a trailer, carrier, etc. is installed, it may adversely affect the performance of Forward Collision-Avoidance Assist may not operate properly.
