Detecting sensor(s)

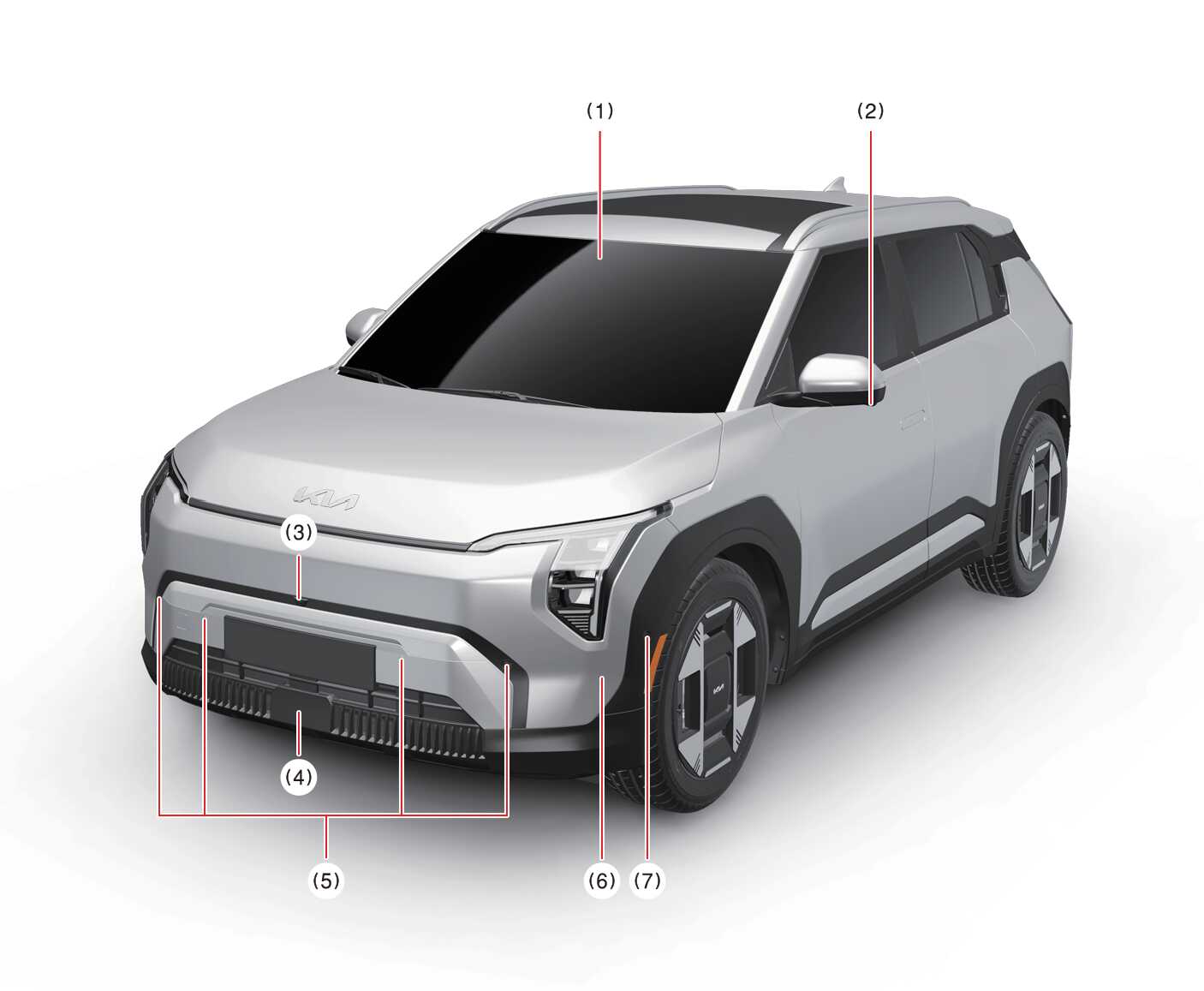

Figure 1. Front
OSVM106075N

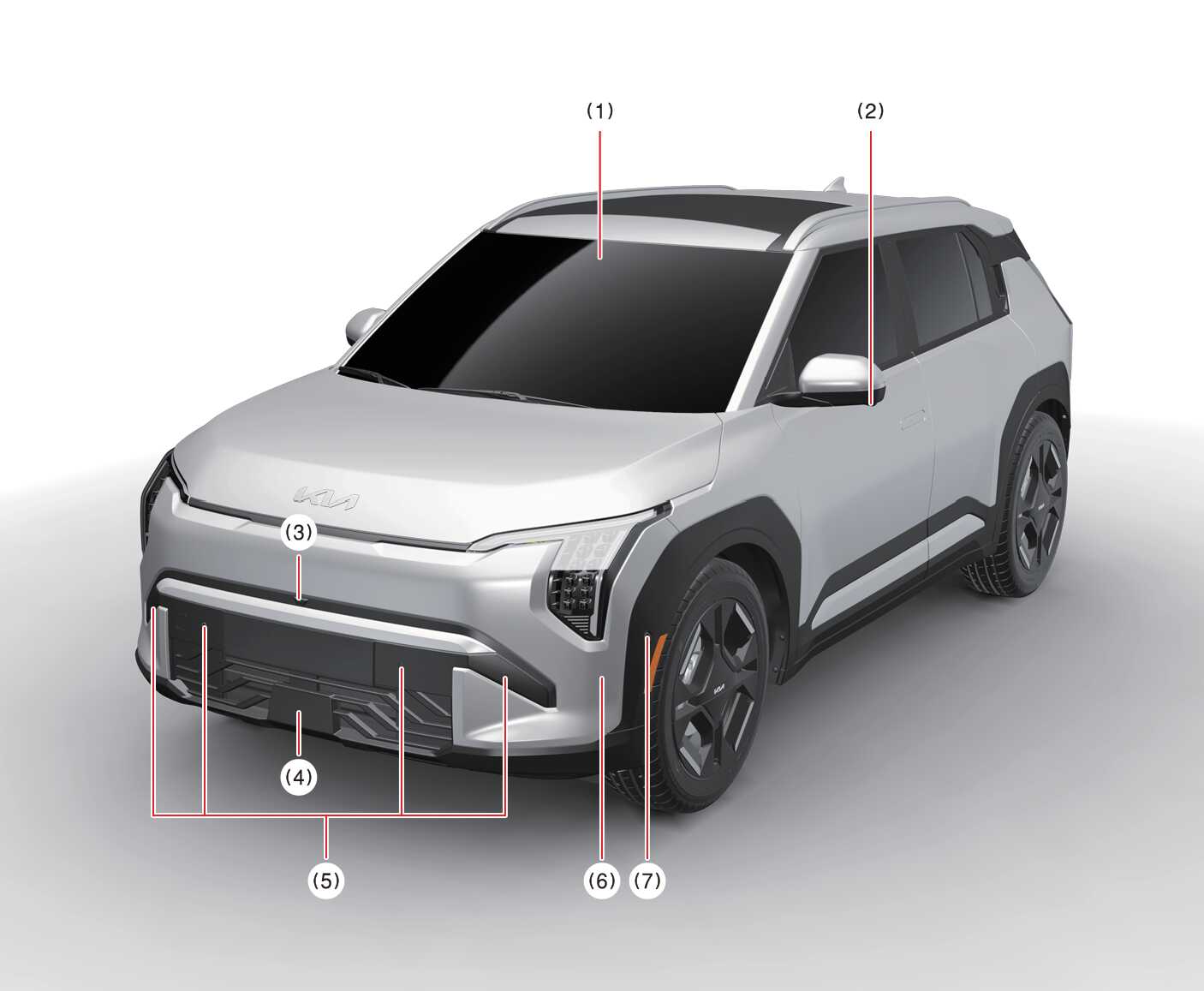

Figure 2. Front (GT-Line)
OSVMGTL106002N

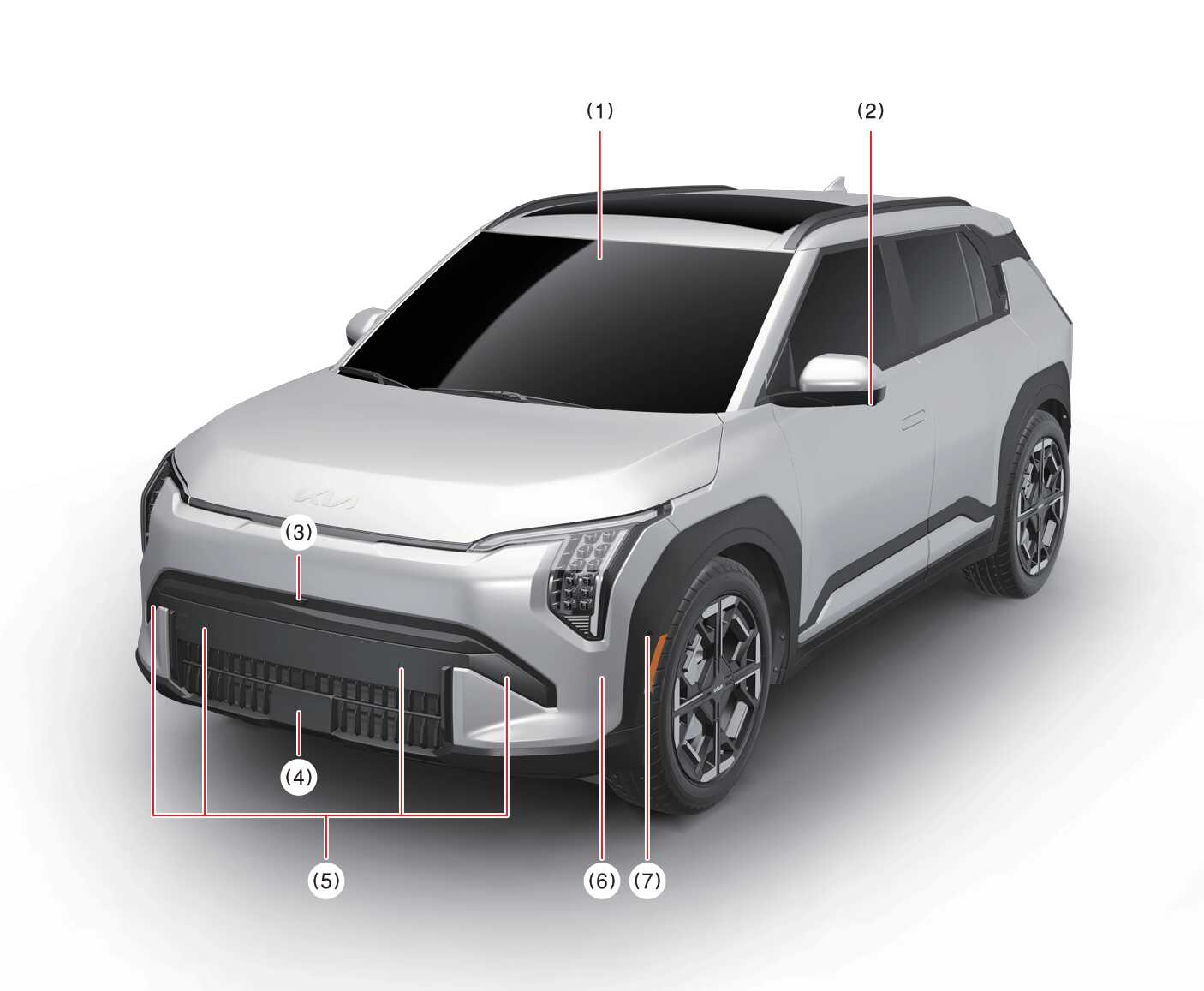

Figure 3. Front (GT)
OSVMGT106002N

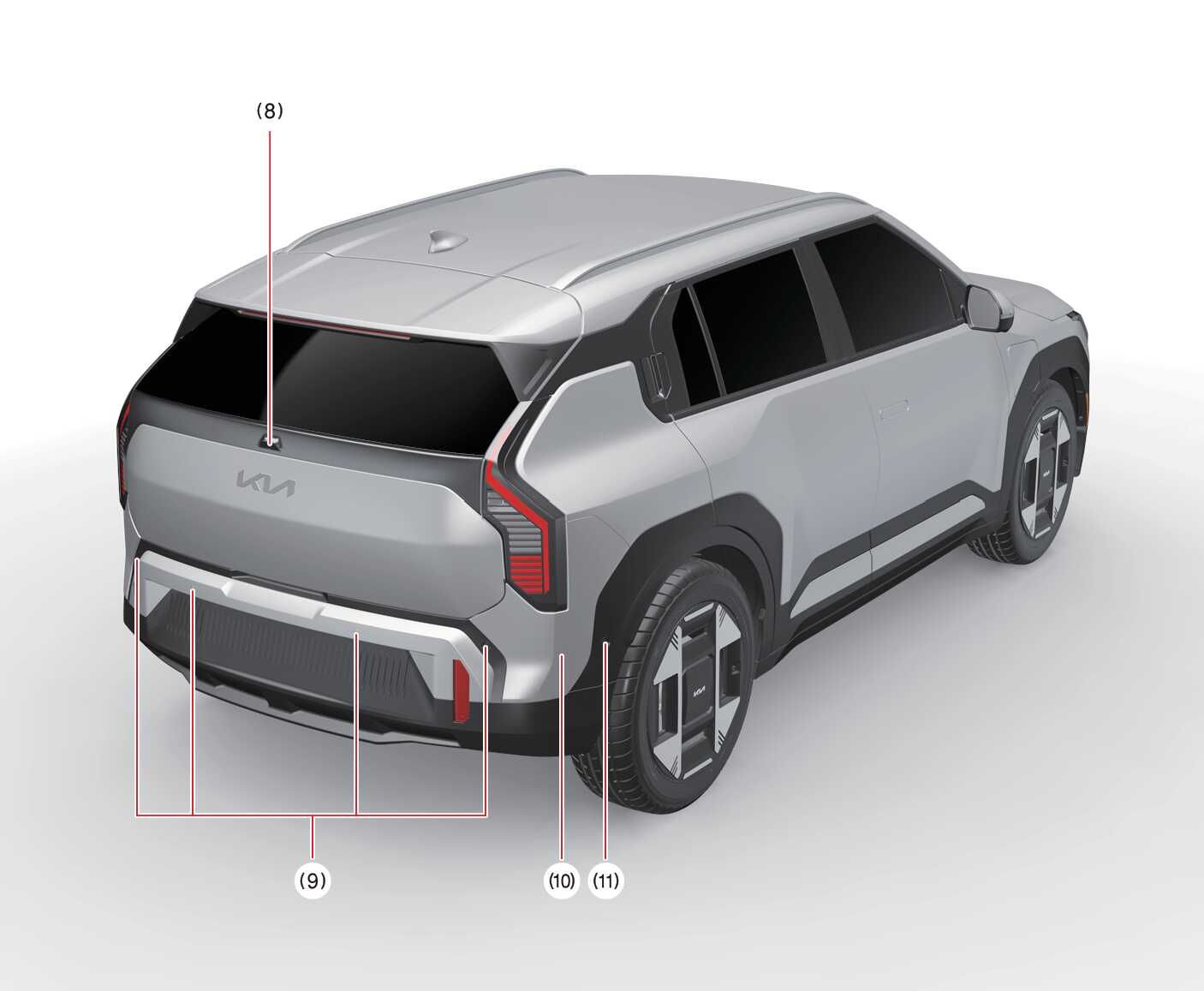

Figure 4. Rear
OSVM106076N
Figure 5. Rear (GT-Line)
OSVMGTL106003N

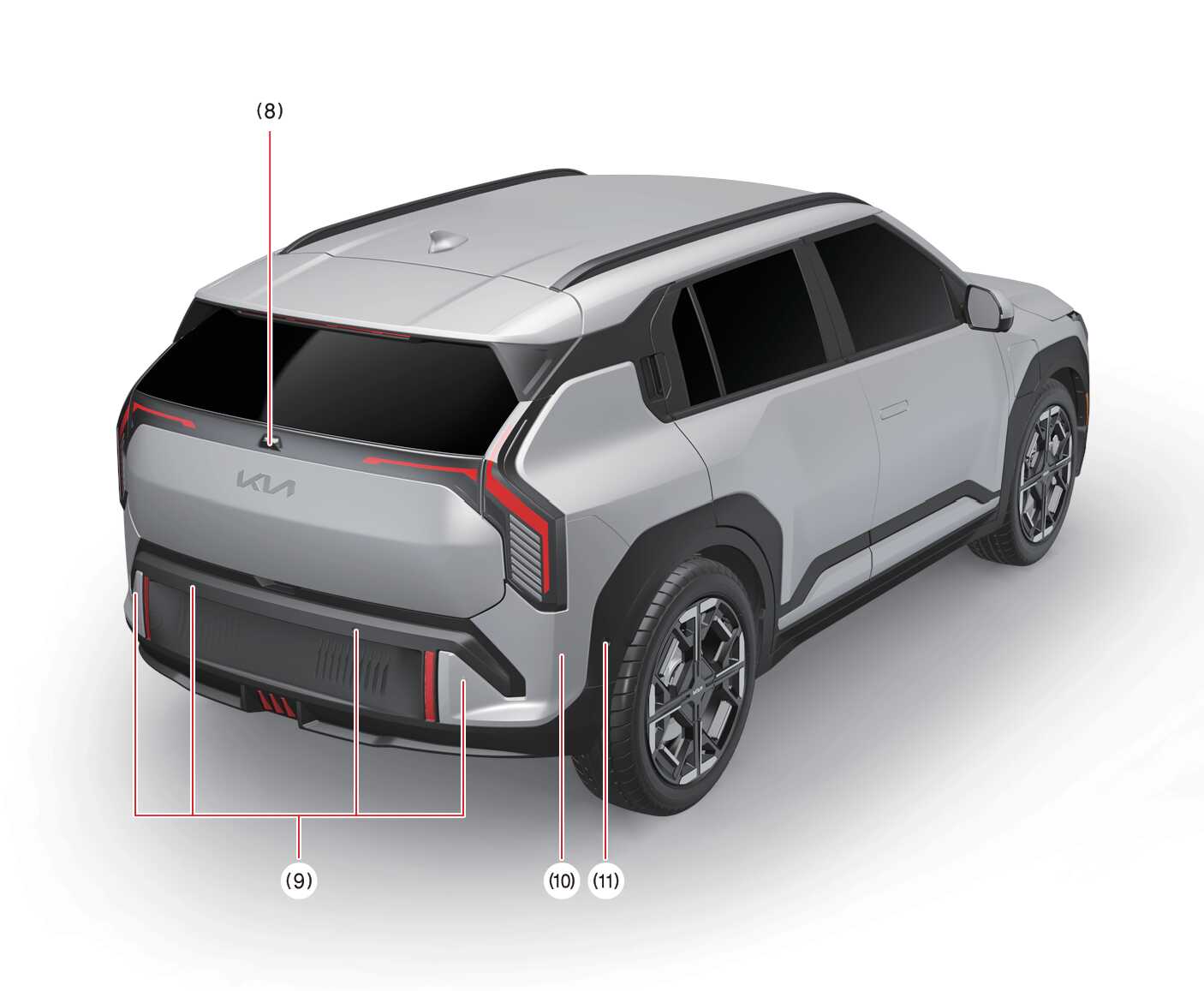

Figure 6. Rear (GT)
OSVMGT106003N

Refer to the picture above for the detailed location of the detecting sensors.

: if equipped

No

Sensor

Function

(1)

Front view camera*

  • Forward Collision-Avoidance Assist (FCA)

  • Lane Keeping Assist (LKA)

  • Lane Following Assist (LFA)

  • Intelligent Speed Limit Assist (ISLA)*

  • Driver Attention Warning (DAW)

  • Smart Cruise Control (SCC)

  • Emergency Stop (ES)

  • Highway Driving Assist (HDA)*

  • High Beam Assist (HBA)

(2)

Wide-side view camera*

  • Blind-Spot View Monitor (BVM)*

  • Surround View Monitor (SVM)*

  • Remote Smart Parking Assist (RSPA)*

  • Parking Collision-Avoidance Assist (PCA)*

(3)

Wide-front view camera*

  • Surround View Monitor (SVM)*

  • Remote Smart Parking Assist (RSPA)*

  • Parking Collision-Avoidance Assist (PCA)*

(4)

Front radar*

  • Forward Collision-Avoidance Assist (FCA)

  • Smart Cruise Control (SCC)

  • Emergency Stop (ES)

  • Highway Driving Assist (HDA)*

(5)

Front ultrasonic sensors*

  • Parking Distance Warning (PDW)*

  • Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist (RSPA)*

(6)

Front corner radar*

  • Forward Collision-Avoidance Assist (FCA)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

(7)

Front side ultrasonic sensors*

  • Parking Distance Warning (PDW)*

  • Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist (RSPA)*

(8)

Wide-rearview camera

  • RearView Monitor (RVM)*

  • Surround View Monitor (SVM)*

  • Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist (RSPA)*

(9)

Rear ultrasonic sensors

  • Parking Distance Warning (PDW)*

  • Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist (RSPA)*

(10)

Rear corner radar*

  • Forward Collision-Avoidance Assist (FCA)

  • Blind-Spot Collision-Avoidance Assist (BCA)

  • Highway Driving Assist (HDA)

  • Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

(11)

Rear side ultrasonic sensors*

  • Remote Smart Parking Assist (RSPA)*

  • Parking Distance Warning (PDW)*
