Securing a Child Restraint System with a lap/shoulder belt

When not using the ISOFIX system, all Child Restraint Systems must be secured to a rear seat with the lap part of a lap/shoulder belt.

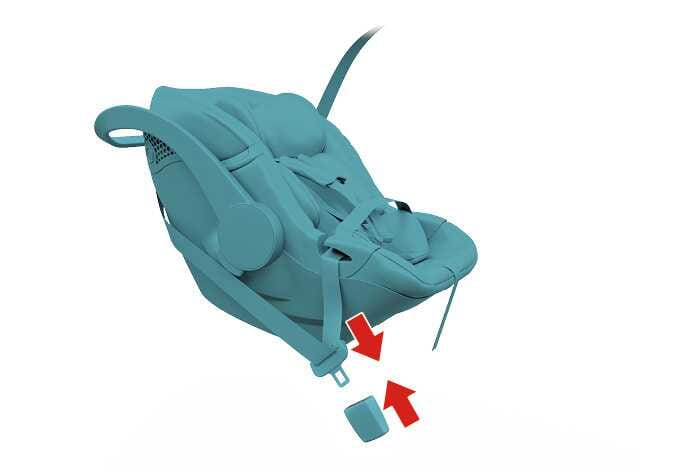

2026 Kia Tasman Child Restraint System installation image. The child safety seat and seat belt are highlighted in teal. Red arrows indicate the direction to insert the seat belt latch into the buckle. Explains the function of fastening the lap/shoulder belt latch into the buckle to secure the child restraint system.
N_CT25B035

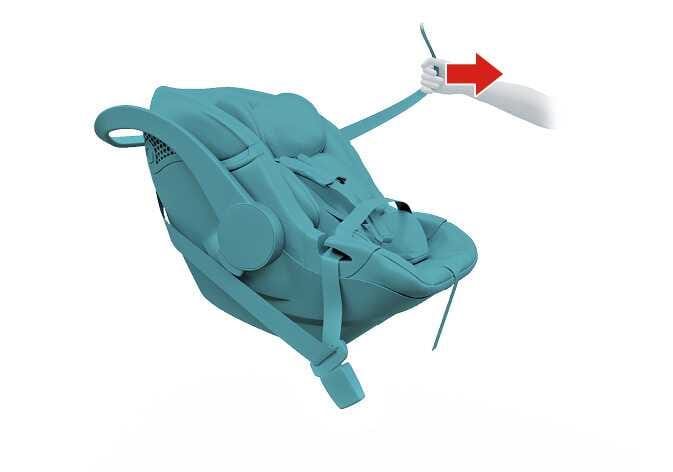

2026 Kia Tasman Child Restraint System securing image. A child safety seat is highlighted in teal, and a hand pulls the shoulder belt with a red arrow pointing to the right. Explains the function of removing slack from the seat belt to firmly secure the child restraint system.
N_CT25B036

Simple operation

  1. Place the Child Restraint System (CRS) on a rear seat and route the lap/shoulder belt around or through the CRS.

  2. Fasten the lap/shoulder belt latch into the buckle.

  3. Remove as much slack from the belt as possible by pushing down on the CRS while feeding the shoulder belt back into the retractor.

  4. Push and pull on the CRS to confirm that the seat belt is holding it firmly in place.

  5. If your CRS manufacturer recommends the use of a top-tether with the lap/shoulder belt, see Securing a child restraint system seat with the "top-tether anchorage" system section in this chapter.

Operation

  1. Place the Child Restraint System on a rear seat and route the lap/shoulder belt around or through the Child Restraint System.

  2. Fasten the lap/shoulder belt latch into the buckle.

  3. Remove as much slack from the belt as possible by pushing down on the Child Restraint System while feeding the shoulder belt back into the retractor.

  4. Push and pull on the Child Restraint System to confirm that the seat belt is holding it firmly in place.

  5. If your Child Restraint System manufacturer recommends the use of a top-tether with the lap/shoulder belt, see Securing a child restraint system seat with the "top-tether anchorage" system section in this chapter.

  6. To remove the Child Restraint System, press the release button on the buckle, and then pull the lap/shoulder belt out of the Child Restraint System and allow the seat belt to retract fully.
