Removing and installing the tailgate

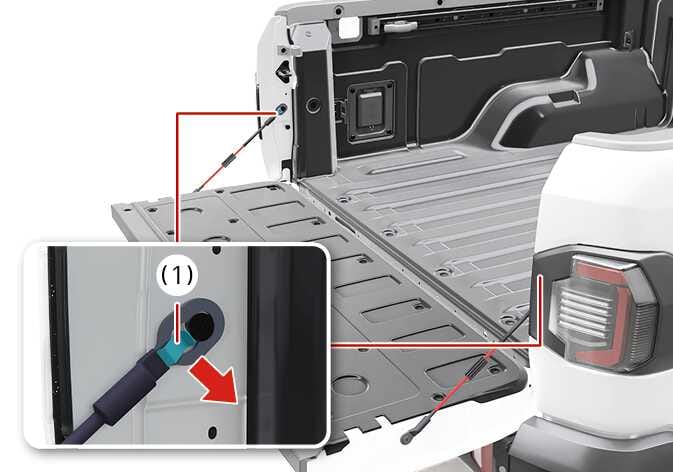

  1. Use a flat tool to pry open clip (1) of the cable supporting the tailgate.

    2026 Kia Tasman tailgate cable removal image. A magnified inset shows the cable clip (1) highlighted in teal. A red arrow points downwards and outwards, indicating the direction to pry the clip open. This explains the process of detaching the support cable to remove the tailgate.
    N_TK25C171_1

    1. Cable clip

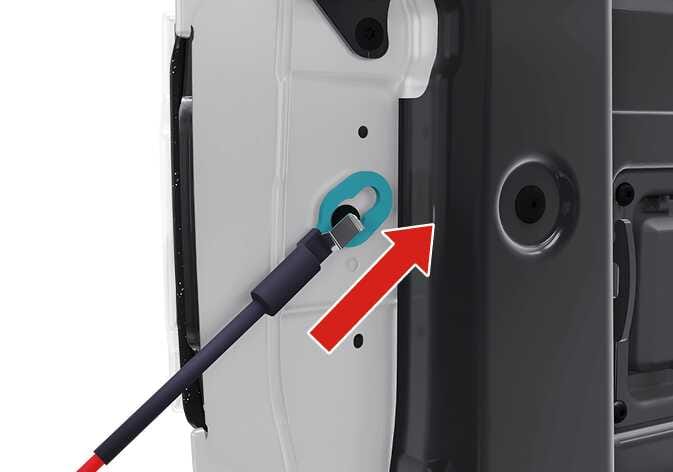

  2. Push the cable up and detach it from the bolt.

    2026 Kia Tasman tailgate support cable detachment image. The keyhole-shaped slot on the white vehicle frame is highlighted in teal. A red arrow points upward, indicating the direction to push the black cable to release it from the bolt. Explains the process of detaching the cable from the bolt.
    N_TK25C173

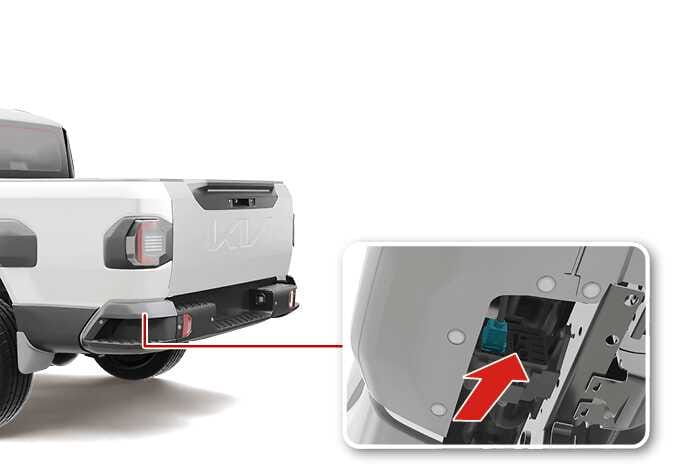

  3. Disconnect the cable at the bottom of the rear bumper.

    2026 Kia Tasman tailgate cable disconnection image. A close-up view of the rear bumper shows the cable connection point with a teal-highlighted connector. A thick red arrow points diagonally upward, indicating the direction to detach the cable. This explains the process of disconnecting the cable at the bottom of the rear bumper.
    N_TK25C174

  4. Remove the clips and protector securing the cable.

    2026 Kia Tasman tailgate cable protector removal image. The rear underside view highlights the cable protector's position with a red outline. A close-up inset shows a clip with teal-highlighted tabs and red arrows pointing inward, indicating the squeezing action. This explains the process of releasing the clips to remove the protector securing the cable.
    N_TK25C175_1

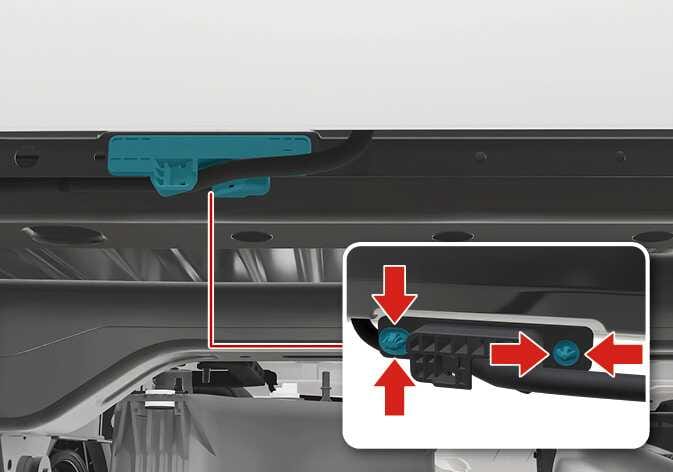

    2026 Kia Tasman tailgate cable protector removal image. The cable protector is highlighted in cyan. A close-up shows red arrows pointing to the clips on the protector. Explains how to remove the clips and protector securing the cable.
    N_TK25C177_1

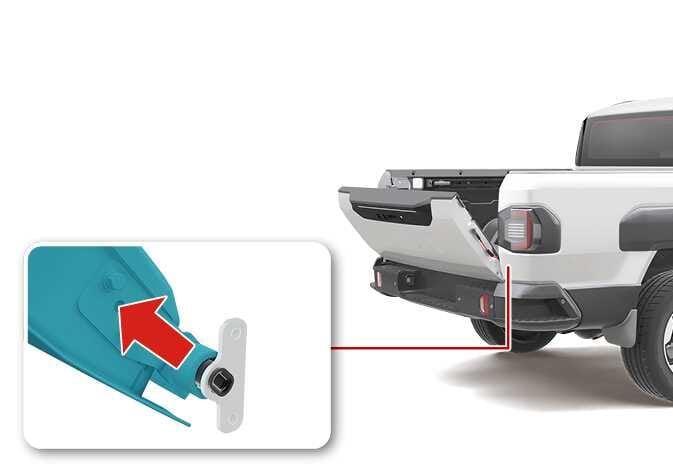

  5. Lift the tailgate to 45 degrees from the horizontal position.

    2026 Kia Tasman tailgate removal image. The tailgate is opened at a 45-degree angle. A close-up inset shows the right hinge area with the tailgate component highlighted in teal. A red arrow points diagonally upward, indicating the direction to detach the tailgate from the mounting bracket. Explains the process of removing the tailgate from the vehicle.
    N_TK25C179_1

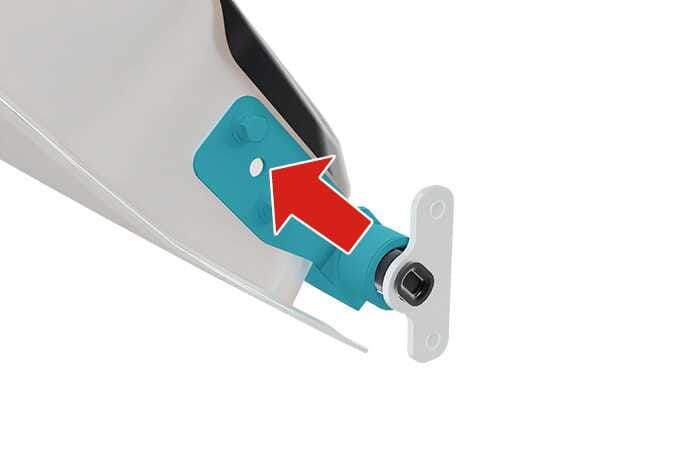

    2026 Kia Tasman tailgate hinge pin image. The hinge bracket is highlighted in teal. A red arrow points from the T-shaped hinge pin towards the hole in the bracket. This explains the process of inserting the hinge pin to install the tailgate.
    N_TK25C181

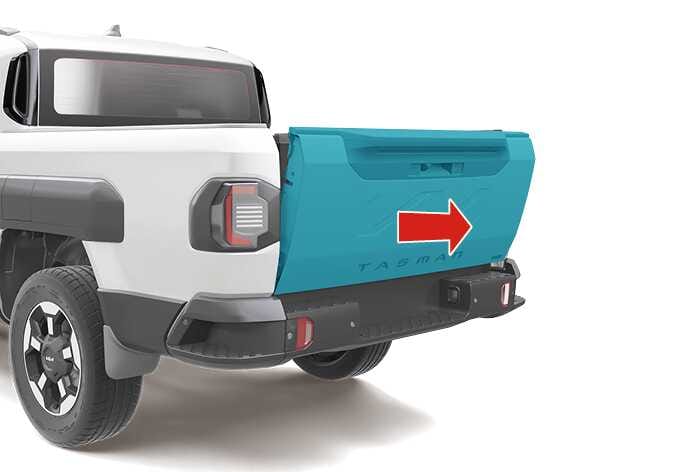

  6. Lift the right-hand side off its hinge and remove the tailgate from the left-hand side hinge by sliding it to the right.

    2026 Kia Tasman tailgate removal image. The tailgate is highlighted in teal, and a large red arrow points to the right. This illustrates the direction to slide the tailgate to detach it from the vehicle.
    N_TK25C182

  7. Install the tailgate in reverse order.

WARNING

  • Do not open the tailgate when the cable is disconnected.

  • Be careful not to get any body parts caught in gaps, such as around clips, when removing or installing the tailgate.

CAUTION

After removing the tailgate, be careful not to lose any parts such as bolts and cables.

Please be aware that when the tailgate is open or detached, cargo may block the view of the license plate. Ensure the license plate remains clearly visible during driving.

NOTE

Noise may occur after removing and reinstalling the tailgate or during opening and closing due to the presence of foreign substances. Lubricate the tailgate hinges when noise is heard.
