Map lamp

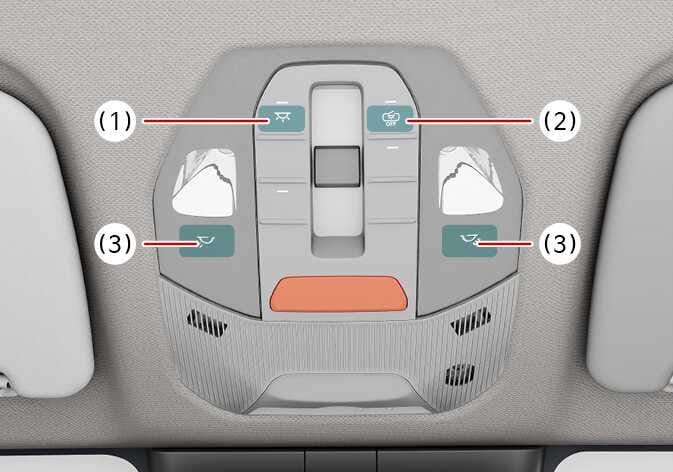

2026 Kia Tasman map lamp controls image. The overhead console shows buttons highlighted in teal. Callout (1) indicates the master interior light button, callout (2) indicates the door interlock button, and callout (3) indicates the individual map lamp buttons. Describes the function of operating the interior lights.
N_TK25D001

Operation

  1. 2026 Kia Tasman front and rear seat lamp button icon. The icon displays a semicircle with rays radiating downwards under a horizontal line. It indicates the function to turn the front and rear seat lamps on and off. : The front and rear seat lamps turn on, and pressing again turns all lamps off.

    If you press and hold the corresponding button for about 1.5 seconds or more while the status indicator is on, the brightness of the front and rear seat lamps changes simultaneously. When you release the button at the desired brightness, the set brightness is saved.

    To reset the overall brightness of the interior lights, press and hold for more than 3 seconds while the status indicator is off, the lights blink twice and are initialized.

  2. 2026 Kia Tasman Map lamp door mode OFF icon. The image displays a stylized overhead light symbol with a switch lever at the top and the text \'OFF\' at the bottom. Explains the function of disabling the interior light operation interlocked with the opening and closing of the doors. indicator light is off

    • The lamp turns on when the door is opened and turns off after closing for about 30 seconds.

    • When unlocking the door with the smart key, the lamp turns on for about 30 seconds and then turns off.

    • When the interior lights remain on for about 30 seconds, they turn off immediately when the vehicle is started or all doors are locked.

    • When the door is opened in the “OFF” or “ACC” position, the interior light turns on for a maximum of about 10 minutes and then turns off. If the vehicle is in ON position, it will be on continuously.

    2026 Kia Tasman Map lamp door mode OFF icon. The image displays a stylized overhead light symbol with a switch lever at the top and the text \'OFF\' at the bottom. Explains the function of disabling the interior light operation interlocked with the opening and closing of the doors. indicator light is on

    • The operating condition of the interior light interlocked with the opening and closing of the door is released.

  3. 2026 Kia Tasman Map lamp button icon. It displays a black semi-circular lamp shape with three diagonal lines representing light rays. This icon marks the button for turning the map lamp on or off and adjusting its brightness. : If you press the button at each location, the map lamp of the corresponding location turns on, and if you press it again, the lamp turns off.

    If you press and hold the corresponding button for about 1.5 seconds or more while the lamp is on, the brightness of the left and right map lamps changes, and if you release the button at the desired brightness, the set brightness is saved.

    To reset the overall brightness of the interior lights, press and hold for more than 3 seconds while the status indicator is off, the lights blink twice and are initialized.
