Vehicle weight
This section will give you guidance on the proper loading of your vehicle to keep your loaded vehicle weight within its design rating capability. Properly loading your vehicle will help you use the vehicle's design performance to maximum advantage. Before loading your vehicle, familiarize yourself with the following terms for determining your vehicle's weight ratings, which are used in the vehicle's specifications and on the certification label (if equipped):
Base curb weight
This is the weight of the vehicle including all standard equipment. It does not include passengers, cargo, or optional equipment.
Vehicle curb weight
This is the weight of the vehicle including high voltage battery and all standard equipment. It does not include passengers, cargo, or optional equipment.
Cargo weight
This figure includes all weight added to the Base Curb Weight, including cargo and optional equipment.
GAW (Gross axle weight)
This is the total weight placed on each axle (front and rear) - including vehicle curb weight and all payload.
GAWR (Gross axle weight rating)
This is the maximum allowable weight that can be carried by a single axle (front or rear). These numbers are shown on the certification label (if equipped).
The total load on each axle must never exceed its GAWR.
GVW (Gross vehicle weight)
This is the base curb weight plus the actual cargo weight plus passengers.
GVWR (Gross vehicle weight rating)
This is the maximum allowable weight of the fully loaded vehicle (including all options, equipment, passengers, and cargo). The GVWR is shown on the certification label (if equipped) located on the driver's (or front passenger's) door sill.
GVWR (Gross vehicle weight rating)
This is the maximum allowable weight of the fully loaded vehicle (including all options, equipment, passengers, and cargo). The GVWR is shown on the certification label (if equipped) located on the driver's (or front passenger's) door sill.

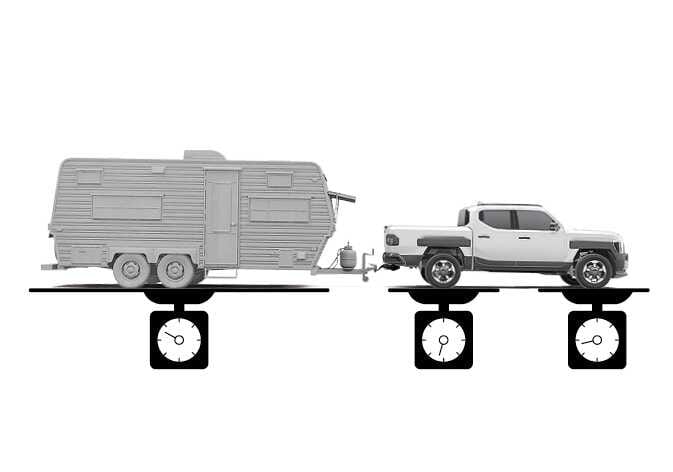

Gross combined weight (GCW)
 N_TK25E054_ER |
GCW is the total allowable weight of the fully loaded vehicle and trailer, including fuel, passengers, cargo, equipment, and accessories. Do not exceed the GCW for your vehicle.
