Detecting sensor(s)

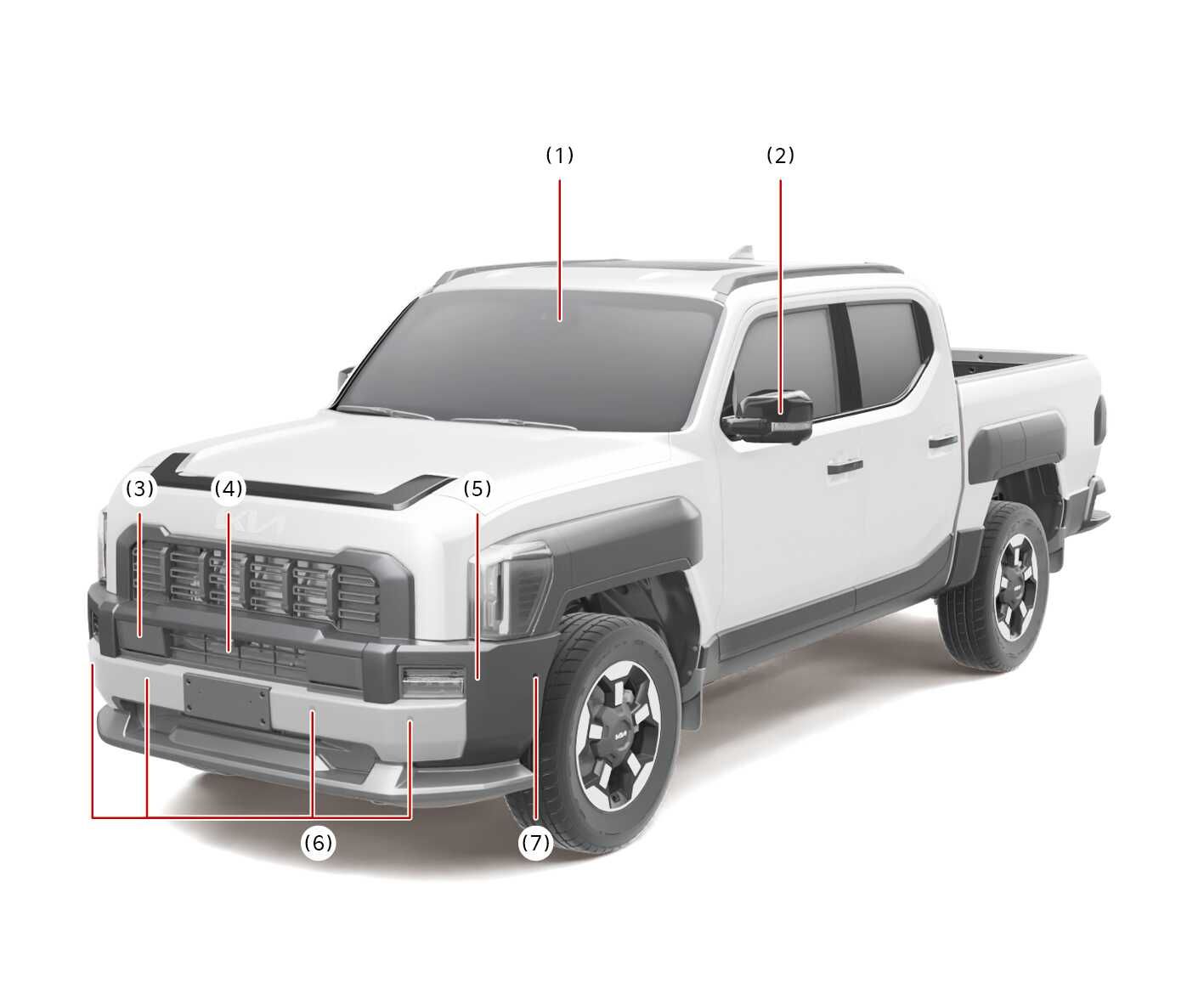

2026 Kia Tasman detecting sensor locations image. Red lines indicate the positions of sensors numbered (1) through (7). (1) points to the Front view camera, (2) Wide-side view camera, (3) Front radar, (4) Wide-front view camera, (5) Front corner radar, and (6) and (7) sensors on the front bumper. Explains the detailed location of the detecting sensors.
N_TK25A005_E

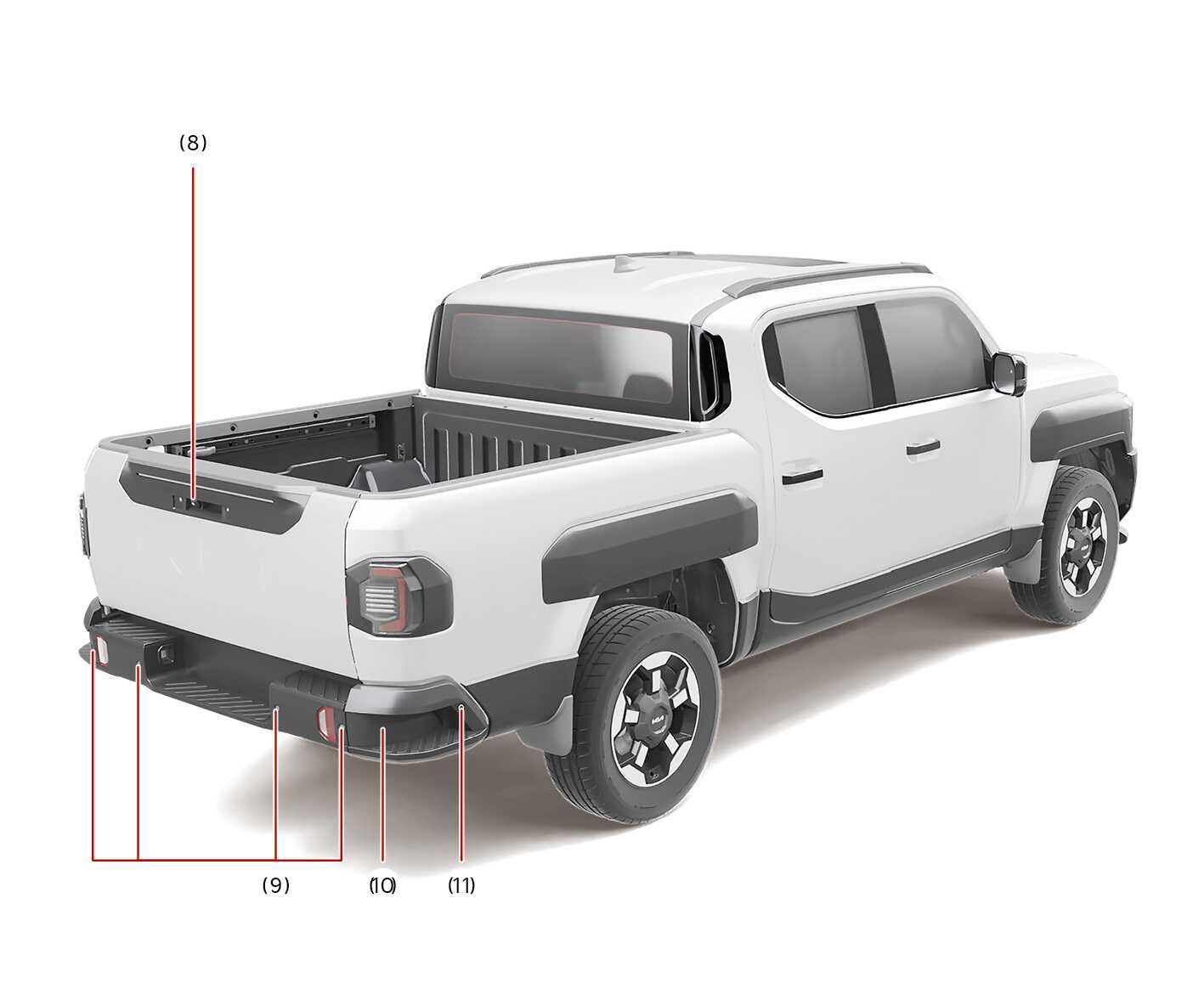

2026 Kia Tasman rear detecting sensors image. Red lines indicate sensor locations labeled (8) on the tailgate handle, (9) and (10) on the rear bumper, and (11) on the bumper corner. Explains the locations of the detecting sensors.
N_TK25A006_E

Refer to the picture above for the detailed location of the detecting sensors.

: if equipped

No

Sensor

Function

1

Front view camera*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*

  • Lane Keeping Assist (LKA)*

  • Intelligent Speed Limit Assist (ISLA)*

  • Driver Attention Warning (DAW)*

  • Smart Cruise Control (SCC)*

  • Lane Following Assist (LFA)*

  • Highway Driving Assist (HDA)*

2

Wide-side view camera*

  • Blind-Spot View Monitor (BVM)*

  • Surround View Monitor (SVM)*

3

Front radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*

  • Smart Cruise Control (SCC)*

  • Highway Driving Assist (HDA)*

4

Wide-front view camera*

  • Surround View Monitor (SVM)*

5

Front corner radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*

  • Smart Cruise Control (SCC)*

  • Highway Driving Assist (HDA)*

6

Front ultrasonic sensors

  • Forward/Reverse Parking Distance Warning (PDW)*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

  • Remote Smart Parking Assist (RSPA)*

7

Front side ultrasonic sensors*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

  • Remote Smart Parking Assist (RSPA)*

8

Wide-rear view camera

  • Rear View Monitor (RVM)*

  • Surround View Monitor (SVM)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

9

Rear ultrasonic sensors

  • Forward/Reverse Parking Distance Warning (PDW)*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

  • Remote Smart Parking Assist (RSPA)*

10

Rear corner radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)*

  • Blind-Spot Collision-Avoidance Assist (BCA)*

  • Safe Exit Warning (SEW)*

  • Safe Exit Assist (SEA)*

  • Highway Driving Assist (HDA)*

  • Rear Cross-Traffic Collision-Avoidance Assist (RCCA)*

11

Rear side ultrasonic sensors*

  • Remote Smart Parking Assist (RSPA)*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*
