Camera Settings: (if equipped)

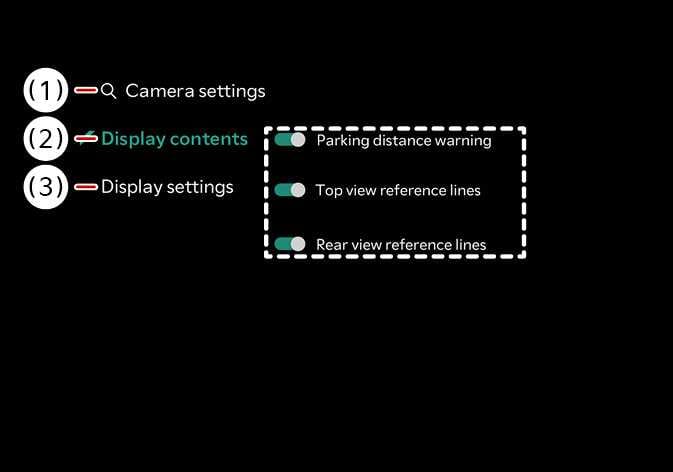

2026 Kia Tasman Camera settings screen image. The infotainment display shows the Camera settings menu. Numbered items indicate: (1) the 'Camera settings' header, (2) the 'Display contents' menu highlighted in teal, and (3) the 'Display settings' menu. A dashed box highlights the options for 'Display contents', showing toggle switches for 'Parking distance warning', 'Top view reference lines', and 'Rear view reference lines' in the on position. This explains the function of configuring the display options for the rear view monitor.
N_TK25Z091_E

  1. Driver assistance

  2. Parking safety

  3. Camera settings

With the vehicle on, select the setup icon (2026 Kia Tasman Setup icon. A black gear-shaped symbol representing the settings menu. Explains the function to access the setup menu.) on the screen or Settings > Vehicle > Driver assistance > Parking safety > Camera settings from the infotainment system screen to change the Rear View Monitor settings.

Extend rear camera use

If Extend rear camera use is selected, the rear camera is displayed even when shifting from R (Reverse) to N (Neutral) or D (Drive).

Rear view reference lines

If Rear view reference lines in the display information is selected, Rear view reference lines and Top Rear View Parking Guidance are displayed in the rear monitor.

Display settings

You can set the brightness (day/night) and contrast of the camera image in Display settings

NOTE

  • The horizontal guidelines of the Rear View Parking Guidance indicate distances of approximately 0.5 m (20 in), 1 m (40 in), and 2.3 m (91 in) from the vehicle (based on an unloaded cargo condition).

  • The horizontal scale of the Rear Top View Parking Guidance indicates the tailgate opening distance and a distance of 1.5 m (59 in) from the vehicle (based on an unloaded cargo condition).

  • The setting menu may not be available for your vehicle depending on the vehicle specifications.
