Climate control air filter

Operation

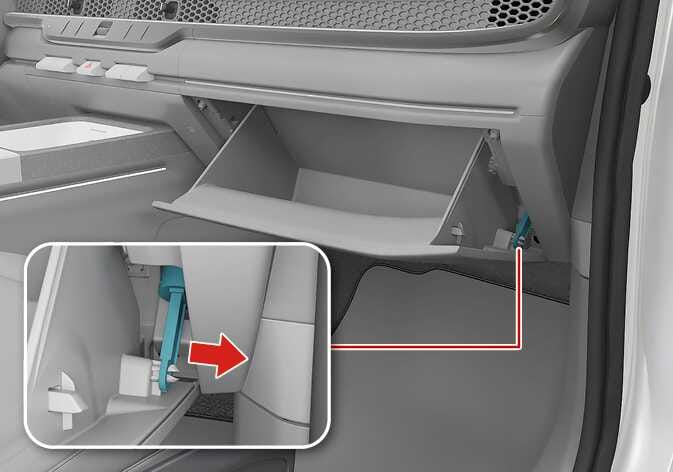

  1. Open the glove box and remove the stopper.

    2026 Kia Tasman glove box support rod image. An inset displays the support rod highlighted in cyan on the right side. A red arrow indicates pulling right to detach the rod. This describes disconnecting the rod to replace the climate control air filter.
    N_TK25G005_1

  2. With the glove box open, pull the support strap.

    2026 Kia Tasman glove box image. The open glove box is highlighted in teal. Red horizontal arrows on the left and right sides point inward, indicating the direction to push the sides of the glove box. This describes the action required to release the glove box stops to replace the climate control air filter.
    N_TK25G007

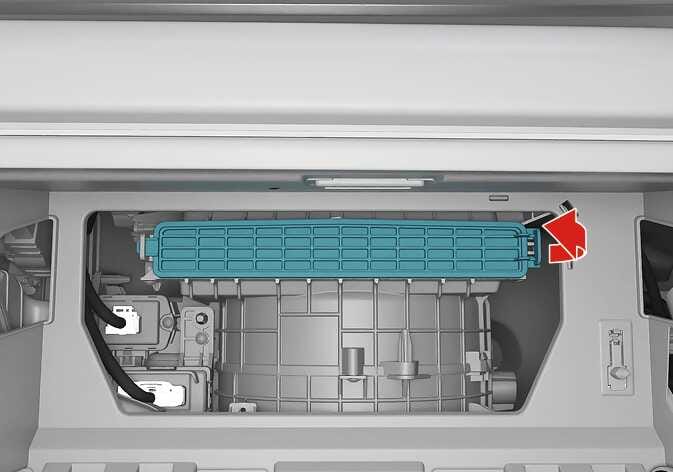

  3. Remove the climate control air filter cover by pulling out both sides of the cover.

    2026 Kia Tasman climate control air filter cover image. The air filter cover is highlighted in teal within the open glove box. A red arrow points to the right at the side latch, indicating the direction to pull to release the cover. This explains the function of removing the climate control air filter cover.
    N_TK25G008_1

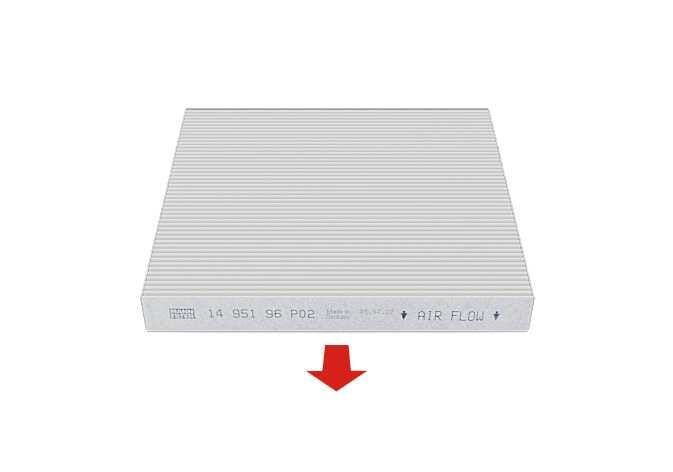

  4. Replace the climate control air filter.

    2026 Kia Tasman climate control air filter replacement image. The image shows a white rectangular air filter with 'AIR FLOW' text and arrows printed on the side. A large red downward arrow indicates the installation direction. Explains the correct orientation for installing the climate control air filter.
    N_CT25G010

  5. Assemble in reverse order.

NOTE

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
