Your vehicle is equipped with both left side and right side outside rear view mirrors.

Be sure to adjust the mirror angles before driving.

The mirrors can be adjusted remotely with the remote switch. The mirror heads can be folded back to prevent damage in an automatic car wash or when passing through a narrow street.

Adjusting the rear view mirrors:

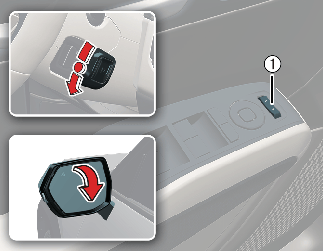

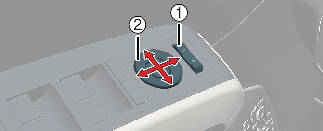

1. Move the R or L switch (1) to select the right or left side mirror.

2. Press a corresponding point on the mirror adjustment control (2) to position the selected mirror up, down, left or right.

3. After adjustment, put the button into neutral (center) position to prevent inadvertent adjustment.

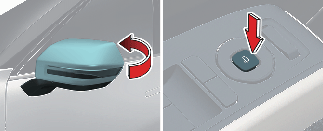

Press the outside rear view mirror folding button to fold or unfold the mirror.

The mirror will fold or unfold automatically as follows:

• The mirror will fold or unfold when the door is locked or unlocked by the smart key.

• The mirror will fold or unfold when the door is locked or unlocked by the button on the outside door handle.

• The mirror will unfold when you approach the vehicle (all doors closed and locked) with a smart key in possession (if equipped).

When you shift the gear to the R (Reverse) position, the outside rearview mirrors will rotate downwards to aid with driving in reverse.

The position of the outside rear view mirror switch (1) determines whether the mirrors will move:

Left/Right: When either the L (Left) or R (Right) switch is selected, the corresponding outside rear view mirrors will move.

Neutral: When neither switch is selected, the outside rear view mirrors will not move.

The outside rear view mirrors will automatically revert to their original positions if any of the following occur:

• The EV button is placed to either the lock/off position or the acc position.

• The gear is shifted to any position except R (Reverse).

• The remote control outside rear view mirror switch is not selected.

If you cannot see well enough visibility with the angles as the factory default conditions, you can readjust and store the angles of outside rear view mirrors.

The factory default angles of the right and left rear view mirrors can be set individually. To adjust the default angles:

1. Put the shifter dial to P (Park).

2. Position the mirror control lever to L (left) or R (right) depending on the mirror that you want to adjust.

3. Step on the brake pedal and shift the shifter dial to R (Reverse) while keeping your foot on the brake.

4. When the downward movement of the rearview mirror is finished, adjust the mirror to the desired angle by pressing the switches, ▼, ▲, ◀, ▶.

5. Once you have the mirrors in the desired positions, shift to a gear other than R (Reverse), or change the rearview mirror selector lever to the neutral position. That will automatically save the adjusted angles.

If you want to change the automatic control function of rearview mirrors to the factory default conditions, follow the steps below:

1. Shift the shifter dial to P (Park).

2. Choose the mirror to be adjusted by positioning the lever to L (left) or R (right).

3. Step on the brake pedal and shift the dial to R (Reverse).

4. When the downward movement of the rearview mirror is finished, press the switch ▲ to locate the mirror in the position higher than before (P, N or D).

   (Adjust the mirror in the higher position compared to its position in the driving mode)

5. Move the shift dial to a position other than R (Reverse) or change the rear view mirror selector lever to the neutral position. (The default settings will be applied from the next operation)
