Be sure to adjust the mirror angles before driving.

The mirrors can be adjusted remotely with the control levers or remote switch, depending on the type of mirror control installed. The mirror heads can be folded back to prevent damage in an automatic car wash or when passing through a narrow street.

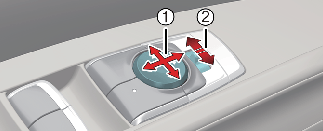

The electric remote control mirror switch allows you to adjust the position of the left and right outside rear view mirrors.

Adjusting the rear view mirrors:

1. Move the R or L switch (1) to select the right side mirror or the left side mirror.

2. Press a corresponding point on the mirror adjustment control (2) to position the selected mirror up, down, left or right.

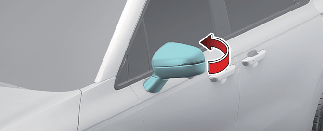

To fold the outside rear view mirror, grasp the housing of the mirror and then fold it toward the rear of the vehicle.

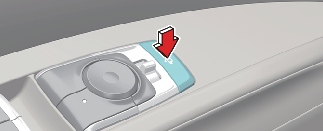

The outside rear view mirror can be folded or unfolded by pressing the switch as below.

• To fold the outside rear view mirror depress the button.

• To unfold it, depress the button again.

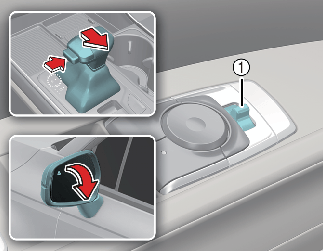

When you shift the gear to the R (Reverse) position, the outside rear view mirror(s) will rotate downwards to aid with driving in reverse.

The position of the outside rear view mirror switch (1) determines whether the mirrors will move:

Left/Right: When either the L (Left) or R (Right) switch is selected, both outside rear view mirrors will move.

Neutral: When neither switch is selected, the outside rear view mirrors will not move.

The outside rear view mirrors will automatically revert to their original positions if any of the followings occur:

• The ENGINE START/STOP button is placed to either the LOCK/OFF position or the ACC position.

• The gear is shifted to any position except R (Reverse).

• The remote control outside rear view mirror switch is not selected.

If you cannot see well enough with the angles provided as factory default conditions, you can readjust and store the angles of outside rear view mirrors.

The factory default angles of the right and left rear view mirrors can be set individually. To adjust the default angles:

1. Put the gear in P (Park).

2. Position the mirror control lever to L (left) or R (right) depending on the mirror that you want to adjust.

3. Step on the brake pedal and shift the shift lever to R (Reverse) while keeping your foot on the brake.

4. When the downward movement of the rear view mirror is finished, adjust the mirror to the desired angle by pressing the switches, ▼, ▲, ◀, ▶.

5. Once you have the mirrors in the desired positions, shift to a gear other than R (Reverse) or change the rear view mirror selector lever to the neutral position. That will automatically save, the adjusted angles.

6. You can adjust the rear view mirror on the other side by following the same procedures (1-5).

If you want to change the automatic control function of rear view mirrors to factory-default conditions, follow the steps below.

Shift the shift lever to P (Park).

1. Choose the mirror to be adjusted by positioning the lever to L (left) or R (right).

2. Step on the brake pedal and shift the shift lever to R (Reverse).

3. When the downward movement of the rear view mirror is finished, press the switch ▲ to locate the mirror in the position higher than before (P, N or D).

   (Adjust the mirror in the higher position compared to its position in the driving mode)

4. Move the gear to a position other than R (Reverse) or change the rear view mirror selector lever to the neutral position. The default settings will be applied from the next operation.

5. You can initialize settings for the mirror on the other side by following the same procedures (1-5).
