Trip information (trip computer)

The trip computer is a microcomputer- controlled driver information system that displays information related to driving.

NOTICE

Some driving information stored in the trip computer resets if the battery is disconnected.

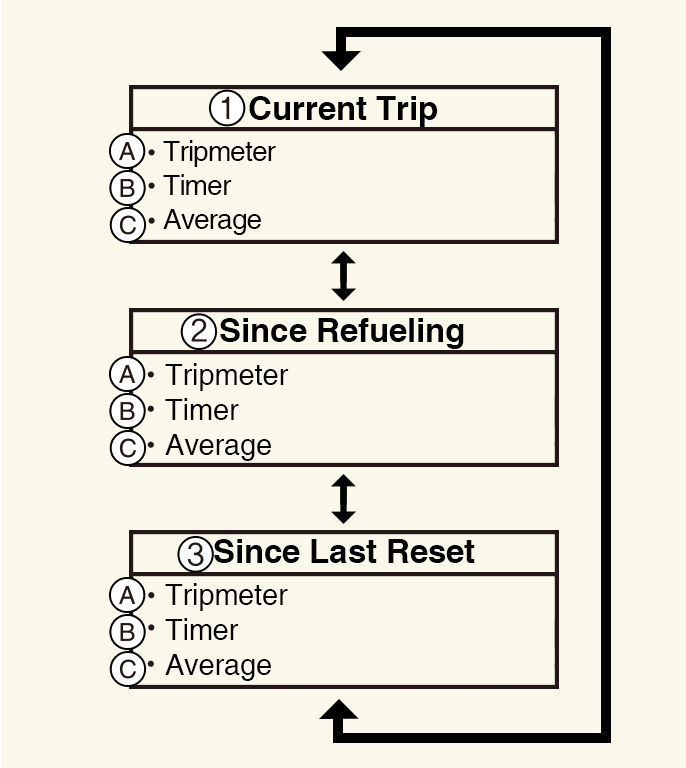

Trip modes

A: Tripmeter

B: Timer

C: Average

  1. Current Trip

  2. Since Refueling

  3. Since Last Reset

To change the trip mode, toggle the switch (/) on the steering wheel.

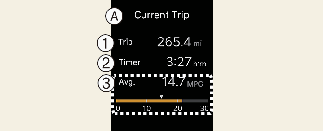

Fuel economy (if equipped)

This information is always displayed at the bottom center of the Full LCD cluster.

A: Current Trip

  1. Trip

  2. Timer

  3. Avg.

Average Fuel Economy

  • The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy resets.

    • Fuel economy range: 0 ~ 99.9 mpg or 0 ~ 100 km/L.

  • At vehicle on: The information will automatically reset when the driver's door is opened after the ignition is turned off, or approximately 3 minutes have passed after the ignition is turned off.

  • After refueling: After refueling more than 2.9 gallons (11 liters) and driving over 1 mph (1 km/h), the vehicle will reset to default automatically.

NOTICE

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 0.03 mi (50 m) since the ignition switch or ENGINE START/STOP button is turned to ON.

Instant Fuel Economy

  • This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 6.2 mph (10 km/h).

    • Fuel economy range:

      0.0 ~ 50.0 mpg or 0.0 ~ 30 km/L.

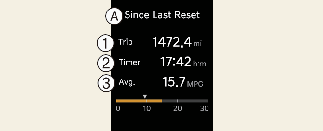

Accumulated driving information mode

This display shows the accumulated trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time).

A: Since Last Reset

  1. Trip

  2. Timer

  3. Avg.

  • Accumulated information is calculated after the vehicle has run for more than 0.19 miles (300 m).

  • If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

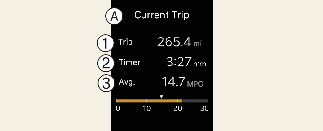

Drive Info display

This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time) once per one ignition cycle.

A: Current Trip

  1. Trip

  2. Timer

  3. Avg.

  • Fuel efficiency is calculated after the vehicle has run for more than 0.2 miles (300 m).

  • The information will automatically reset when the driver's door is opened after the ignition is turned off, or approximately 3 minutes have passed after the ignition is turned off.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

NOTICE

The vehicle must be driven for a minimum of 0.2 miles (300 m) since the last ignition cycle before the average accumulated driving information is recalculated.

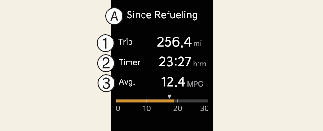

Information since refueling

This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time) since refueling.

A: Sine Refueling

  1. Trip

  2. Timer

  3. Avg.

  • Information since refueling is calculated after the vehicle has run for more than 0.19 miles (300 m).

  • If you press "OK" button for more than 1 second after the information since refueling is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.
