HBA will automatically adjust the headlamp range (switches between high beam and low beam) depending on the brightness of detected vehicles and certain road conditions.

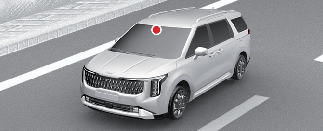

Detecting sensor

The front view camera is used as a detecting sensor to detect ambient light and brightness while driving.

Refer to the picture above for the location of the detecting sensor.

NOTICE

• Always keep the front view camera in good condition to maintain optimal performance of HBA.

• For more details on the precautions of the front view camera, refer to More Details.

With the engine on, select Lights → High Beam Assist (or HBA (High Beam Assist)) from the Settings menu to turn on High Beam Assist and deselect to turn off the function.

WARNING

For your safety, change the Settings after parking the vehicle at a safe location.

• After selecting High Beam Assist in the Settings menu, HBA will operate by following the procedure below.

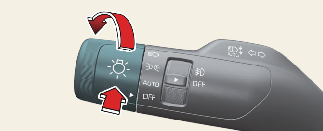

  • Place the headlight switch in the AUTO position and push the headlamp lever towards the instrument cluster. The HBA () indicator light will appear on the cluster and the function will be enabled.

  • When the function is enabled, high beam will turn on when vehicle speed is above 20 mph (30 km/h). When vehicle speed is below 12 mph (20 km/h), high beam will not turn on.

  • The High Beam () indicator light will appear on the cluster when high beam is on.

• When HBA is operating, if the headlight lever or switch is used, the function operates as follows:

  • If the headlight lever is pulled towards you when the high beam is off, the high beam will turn on without HBA canceled. When you let go of the headlamp lever, the lever will move to the middle and the high beam will turn off.

  • If the headlight lever is pulled towards you when the high beam is on by HBA, low beam will be on and the function will turn off.

  • If the headlight switch is placed from AUTO to another position (headlight/position/off), HBA will turn off and the corresponding lamp will turn on.

• When HBA is operating, high beam switches to low beam if any of the following conditions occur:

  • When the headlight of an oncoming vehicle is detected.

  • When the taillight of a vehicle in front is detected.

  • When the headlight or taillight of a motorcycle or a bicycle is detected.

  • When the surrounding ambient light is bright enough that high beams are not required.

  • When streetlights or other lights are detected.

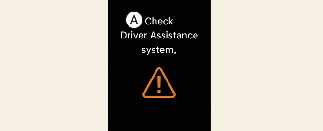

A: Check Driver Assistance system.

When HBA is not working properly, the Check High Beam Assist (HBA) system or Check HBA (High Beam Assist system) warning message will appear and the Master warning light () will appear on the cluster. Have the function be inspected by an authorized Kia dealer.

HBA may not work properly in the following situations:

• Light from a vehicle is not detected because of lamp damage, or because it is hidden from sight, etc.

• Headlight of a vehicle is covered with dust, snow or water.

• A vehicle's headlights are off but the fog lights are on

• There is a lamp that has a similar shape as a vehicle's lamp.

• Headlights have been damaged or not repaired properly.

• Headlights are not aimed properly.

• Driving on a narrow curved road, rough road, uphill or downhill.

• Vehicle in front is partially visible on a crossroad or curved road.

• There is a traffic light, reflecting sign, flashing sign or mirror ahead.

• You are approaching or in a construction zone or other area with reflectors or flashing lights.

• The road is wet, iced or covered with snow.

• A vehicle appears from a curve.

• The vehicle is tilted.

• Light from a vehicle is not detected because of exhaust fume, smoke, fog, snow, etc.

For more details on the limitations of the front view camera, refer to More Details.

WARNING

• At times, HBA may not work properly. It is the responsibility of the driver for safe driving practices and always check the road conditions for your safety.

• When HBA does not operate normally, change the headlamp position manually between high beam and low beam.
