Fuse/relay panel description

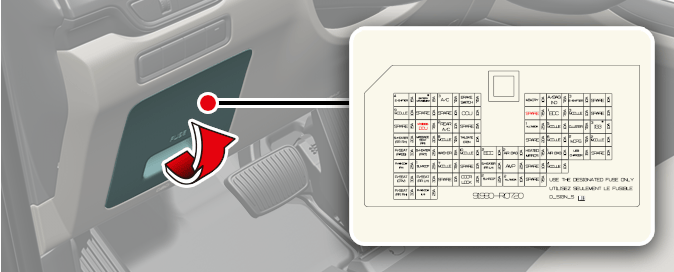

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may apply to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

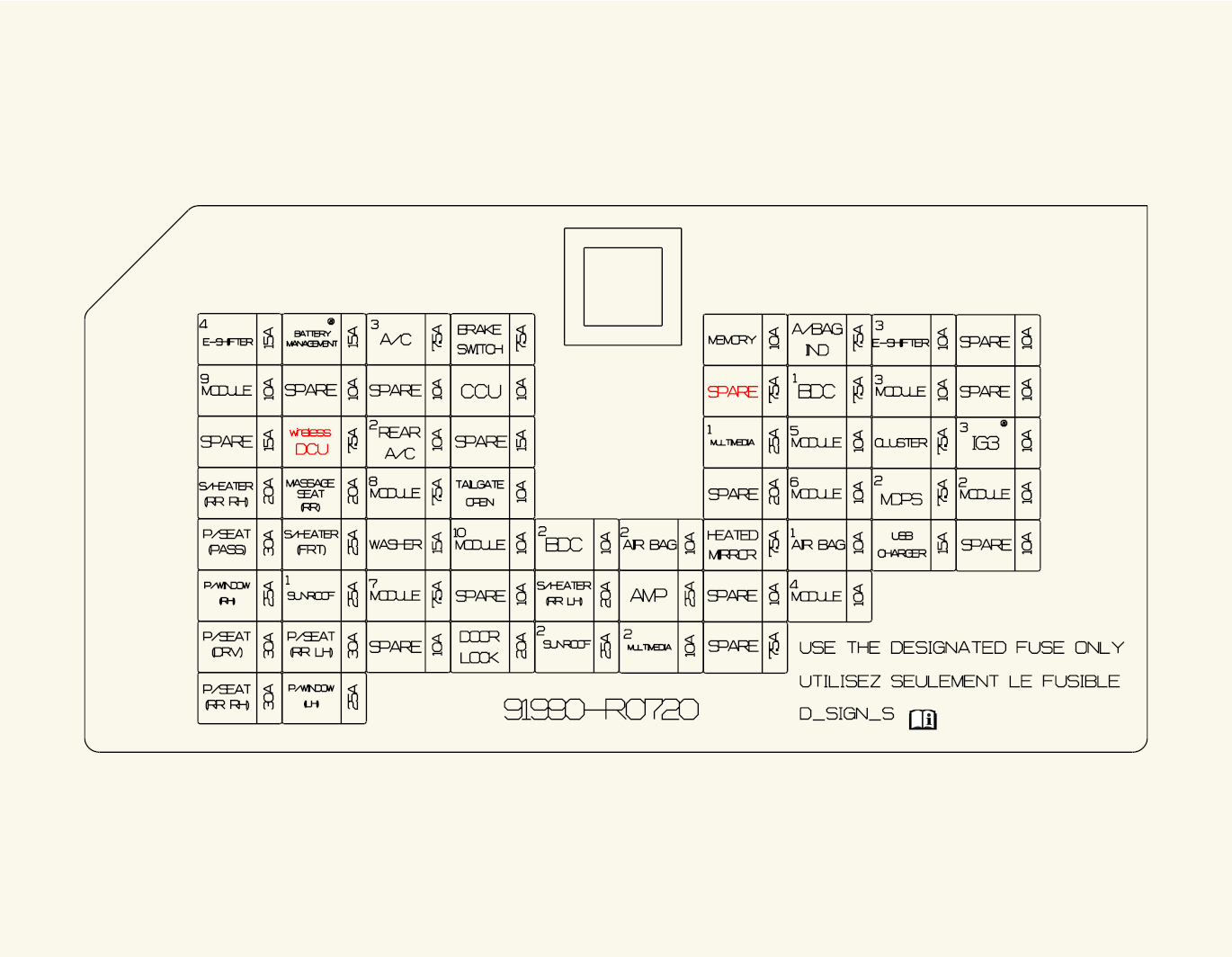

Driver's side fuse panel
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
E-SHIFTER 4 |
15A |
SCU (Shift-by-wire Control Unit) (B+) |
|
BATTERY MANAGEMENT |
15A |
Not Used (HEV ONLY) |
|
A/C 3 |
7.5A |
DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), Engine Room Junction Block (Front Blower Relay, PTC Heater2 Relay) |
|
BRAKE SWITCH |
7.5A |
BDC (Body Domain Controller), Stop Lamp Switch |
|
MEMORY |
10A |
Instrument Cluster, DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), Advanced Driver Assistance Systems Parking ECU, Crash Pad Switch, Console Switch (Upper), Built-in Cam Unit, Rear A/C Control Switch, Mood Lamp Module, BDC (Body Domain Controller) |
|
A/BAG IND |
7.5A |
Passenger Airbag Indicator (IG1) |
|
E-SHIFTER 3 |
10A |
SCU (Shift-by-wire Control Unit) (IG1) |
|
SPARE |
10A |
Not Used |
|
MODULE 9 |
10A |
ETCS( Electronic Toll Collection System), Key Inter Lock Solenoid, FRONT TRAY USB INDICATOR, Hazard Switch, ATM (Automatic Transmission) Shift Lever, Rain Sensor |
|
SPARE |
10A |
Not Used |
|
SPARE |
10A |
Not Used |
|
CCU |
10A |
CCU (Central Communication Unit) |
|
SPARE |
7.5A |
Not Used |
|
BDC 1 |
7.5A |
BDC (Body Domain Controller) (IG1) |
|
MODULE 3 |
10A |
DCU (Data Connectivity Unit), CCU (Central Communication) Unit, DAU (Door Area Unit) |
|
SPARE |
10A |
Not Used |
|
SPARE |
15A |
Not Used |
|
Wireless DCU |
7.5A |
DCU (Data Connectivity Unit) (B+) |
|
REAR A/C 2 |
10A |
DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), Engine Room Junction Block (Rear Blower Relay) |
|
SPARE |
15A |
Not Used |
|
MULTIMEDIA |
25A |
CCNC (Connected Car Navigation Cockpit) |
|
MODULE5 |
10A |
ETCS (Electronic Toll Collection System), I_S_MIRR_DCM (Digital Center Mirror), I_S_MIRR_ECM (Electronic Chromic Mirror), DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), CCNC (Connected Car Navigation Cockpit), Built-in Cam Unit, FRONT TRAY WIRELESS CHARGER, Front Console (FPM Finger Print Module), Power Window Switch RL/RH, AMP (Amplifier) (BOSE), Head Lamp Module LH/RH |
|
CLUSTER |
7.5A |
Instrument Cluster, HUD (Head-Up Display) |
|
IG3 3 |
10A |
Not Used (HEV ONLY) |
|
REAR RH S/HEAT |
20A |
2nd Seat Warmer Control Module, 2nd Seat RH Air Ventilation Control Module |
|
REAR MASSAGE SEAT |
20A |
2nd Seat Massage Module |
|
MODULE 8 |
7.5A |
AC Inverter Module, AC Inverter (Rear), Engine Room Junction Block (Windshield Heated Glass 1/2 Relay), Powernet Domain Controller extended, 20AH (20HR)[BATTERY LITHIUM TYPE-SUB] |
|
TAIL GATE |
10A |
Tail Gate Open Relay |
|
SPARE |
20A |
Not Used |
|
MODULE 6 |
10A |
Overhead Console Indicator, Powernet Domain Controller extended |
|
MDPS 2*1 |
7.5A |
MDPS (Motor Driven Power Steering) |
|
MODULE 2 |
10A |
AMP (Amplifier) (BOSE), Air Cleaner, DCU (Data Connectivity Unit), Advanced Driver Assistance Systems Parking ECU, Built-in Cam Unit, BDC (Body Domain Controller), CCNC (Connected Car Navigation Cockpit), CCNC Keyboard Switch |
|
PASSENGER P/SEAT |
30A |
Passenger Walk-In Module, Passenger Power Seat Switch |
|
FRONT S/HEAT |
25A |
Front Seat Warmer Control Module, Front Seat Air Ventilation Control Module |
|
WASHER |
15A |
Multi Function Switch |
|
MODULE 10 |
10A |
Power Tail Gate Module, Driver/Passenger Door Outside Handle Antenna, Front Air Ventilation Seat Control Module, 2nd Seat LH/RH Relax Module |
|
BDC 2 |
10A |
BDC (Body Domain Controller) (B+), DAU (Door Area Unit), Driver/Passenger Door Outside Handle Antenna, Ultra Wide Band & Bluetooth Low Energy MASTER/SLAVE, Ultra Wide Band Front LH/RH, Ultra Wide Band Rear LH/RH |
|
AIR BAG2 |
10A |
ACU (Airbag Control Unit), ODS (Occupant Detection System) |
|
HEATED MIRROR |
7.5A |
Driver/Passenger Outside Handle |
|
AIR BAG 1 |
10A |
Airbag Control Unit (IG1) |
|
USB CHARGER |
15A |
Driver/Passenger Seat USB Charger, Luggage USB Charger LH, Luggage USB Charger Unit, FRONT TRAY USB CHARGER |
|
SPARE |
10A |
Not Used |
|
PASSENGER P/WINDOW |
25A |
Rear Power Window Switch RH, Rear Safety Power Window Module RH, Passenger Power Window Switch, Passenger Safety Power Window Module |
|
SUNROOF 1 |
25A |
Front Sunroof Motor |
|
MODULE 7 |
7.5A |
BDC (Body Domain Controller) (IG2) |
|
SPARE |
10A |
Not Used |
|
REAR LH S/HEAT |
20A |
2nd Seat Warmer Control Module, 2nd Seat LH Air Ventilation Control Module |
|
AMP |
25A |
AMP (Amplifier) (BOSE) |
|
SPARE |
10A |
Not Used |
|
MODULE 4 |
10A |
Crash Pad Switch, Advanced Driver Assistance Systems Parking ECU, Front/Rear Corner Radar LH/RH, Front View Camera, Console Switch (Upper) |
|
DRIVER P/SEAT |
30A |
Driver IMS (Integrated Memory System) Control Module, Driver Power Seat Switch |
|
REAR LH P/SEAT |
30A |
2nd Seat LH Relax Module |
|
SPARE |
10A |
Not Used |
|
DOOR LOCK |
20A |
Door Lock Relay, Door Unlock Relay, FUEL FILLER OPENER |
|
SUNROOF 2 |
25A |
Rear Sunroof Motor |
|
MULTIMEDIA 2 |
10A |
CCRC (Connected Car Rear Cockpit) |
|
SPARE |
7.5A |
Not Used |
|
REAR RH P/SEAT |
30A |
2nd Seat RH Relax Module |
|
DRIVER P/WINDOW |
25A |
Rear Power Window Switch LH, Rear Safety Power Window Module LH, Driver Power Window Switch, Driver Safety Power Window Module |
* 1. MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering).

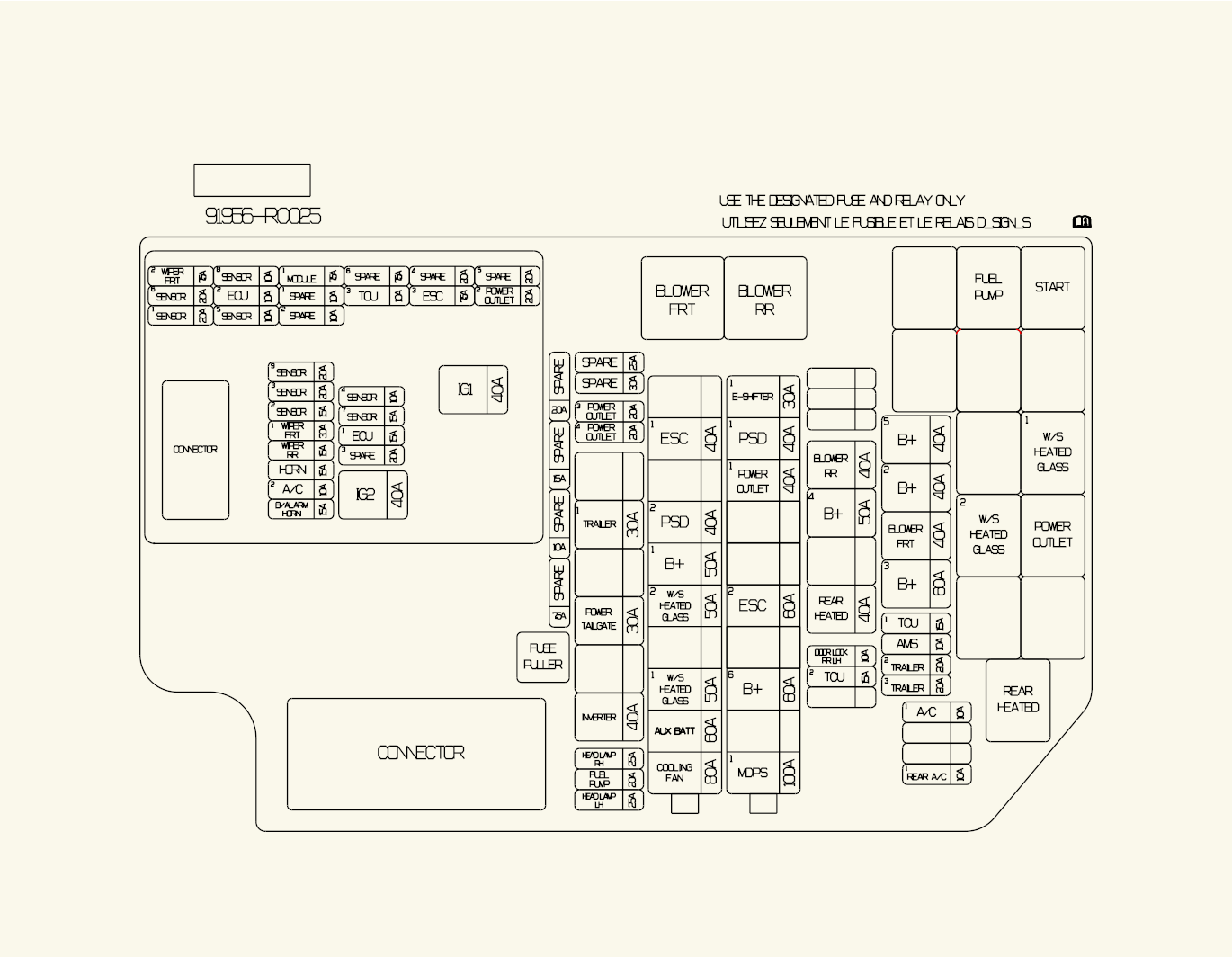

Engine compartment fuse panel
|
Fuse Name |
Fuse rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
COOLING FAN |
80A |
Cooling Fan Motor |
|
AUX BATT |
60A |
Parking Lithium Battery |
|
|
W/S HEATED GLASS1 |
50A |
Front Heated Glass LH |
|
|
PTC HEATER2 |
50A |
Positive Temperature Coefficient Heater2 |
|
|
W/S HEATED GLASS2 |
50A |
Front Heated Glass RH |
|
|
B+1 |
50A |
PDC JUNCTION BLOCK (IPS) |
|
|
PSD2 |
40A |
Power Sliding Door2 |
|
|
FUEL HEATER |
40A |
Fuel Heater Relay |
|
|
ESC1 |
40A |
ECS1 (Electronically Controlled Suspension) |
|
|
SPARE |
30A |
NOT USED |
|
|
MULTI FUSE-2 |
MDPS1*1 |
100A |
MDPS Unit (Motor Driven Power Steering Unit) |
|
SPARE |
80A |
NOT USED |
|
|
B+6 |
60A |
POWER (AFTER MAIN RELAY) |
|
|
GLOW |
60A |
[Smartstream D2.2] Glow Control Unit |
|
|
ESC2 |
60A |
ECS2 (Electronically Controlled Suspension) |
|
|
PTC HEATER1 |
50A |
Positive Temperature Coefficient Heater1 |
|
|
DCU1 |
40A |
DCU (Data Connectivity Unit) |
|
|
POWER OUTLET1 |
40A |
POWER OUTLET3, POWER OUTLET4 |
|
|
PSD1 |
40A |
Power Sliding Door1 |
|
|
E-SHIFTER1 |
30A |
SCU (Shift-by-wire Control Unit) |
|
|
FUSE |
B+3 |
60A |
PDC JUNCTION BLOCK(E-SHIFTER, P/SEAT RH, P/SEAT DRV, P/SEAT PASS, P/WINDOW LH, P/WINDOW RH, S/HEATER RH, S/HEATER FRT, P/SEAT REAR LH, SUNROOF, S/HEATER REAR RH, MASSAGE SEAT RR, WIRELESS DCU, CUPHOLER FRT, MODULE9 |
|
FRONT BLOWER |
40A |
Front Blower Motor |
|
|
B+2 |
40A |
PDC JUNCTION BLOCK(IPS) |
|
|
B+5 |
40A |
PDC JUCTION BLOCK(AMP, AIG BAG2, MODULE10, MULTIMEDIA2, CUPHOLDER REAR) |
|
|
REAR BLOWER |
40A |
Rear Blower Motor |
|
|
B+4 |
50A |
PDC JUNCTION BLCOK(LONG TERM LATCH RELAY, SHORT TERMLOAD, BDC2, BRAKE SWITCH, SUNROOF2, S/HEATER RR LH, DR LOCK, TAILGATE LATCH) |
|
|
SPARE |
50A |
NOT USED |
|
|
REAR HEATED |
40A |
REAR HEATED GLASS, O/S MIRROR HEATED GLASS |
|
|
INVERTER |
40A |
Inverter |
|
|
SPARE |
20A |
NOT USED |
|
|
POWER TAILGATE |
30A |
Power Tail Gate Module |
|
|
SPARE |
30A |
NOT USED |
|
|
TRAILER1 |
30A |
Trailer Connector |
|
|
SPARE |
30A |
NOT USED |
|
|
HEAD LAMP RH |
25A |
Head Lamp Module RH |
|
|
AMS |
10A |
12V Battery Sensor |
|
|
TCU2 |
15A |
TRANSMISSION CONTROL UNIT |
|
|
DOOR LOCK RR LH |
10A |
DOOR LOCK REAR LH |
|
|
SPARE |
20A |
NOT USED |
|
|
FUEL PUMP |
20A |
Fuel Pump Relay |
|
|
HEAD LAMP LH |
25A |
Head Lamp Module LH |
|
|
TRAILER2 |
20A |
Trailer Connector |
|
Fuse Name |
Fuse rating |
Circuit Protected |
|
|---|---|---|---|
|
FUSE |
TCU1 |
15A |
TRANSMISSION CONTROL UNIT |
|
TRAILER3 |
20A |
Trailer Connector |
|
|
REAR A/C1 |
10A |
REAR Air Conditioning |
|
|
SPARE |
10A |
NOT USED |
|
|
DCU2 |
20A |
[Smartstream D2.2] Dosing Control Module |
|
|
DCU3 |
20A |
[Smartstream D2.2] Dosing Control Module |
|
|
DCU4 |
20A |
[Smartstream D2.2] Dosing Control Module |
|
|
A/C1 |
10A |
Air Conditioning |
|
|
SPARE |
10A |
NOT USED |
|
|
POWER OUTLET3 |
20A |
Front Power Outlet |
|
|
POWER OUTLET4 |
20A |
Rear Power Outlet |
|
Fuse Name |
Fuse rating |
Circuit Protected |
|
|---|---|---|---|
|
FUSE |
TCU1 |
15A |
TRANSMISSION CONTROL UNIT |
|
TRAILER3 |
20A |
Trailer Connector |
|
|
REAR A/C1 |
10A |
REAR Air Conditioning |
|
|
SPARE |
10A |
NOT USED |
|
|
DCU2 |
20A |
[Smartstream D2.2] Dosing Control Module |
|
|
DCU3 |
20A |
[Smartstream D2.2] Dosing Control Module |
|
|
DCU4 |
20A |
[Smartstream D2.2] Dosing Control Module |
|
|
A/C1 |
10A |
Air Conditioning |
|
|
SPARE |
10A |
NOT USED |
|
|
POWER OUTLET3 |
20A |
Front Power Outlet |
|
|
POWER OUTLET4 |
20A |
Rear Power Outlet |
|
|
ECU1 |
15A |
ENGINE CONTROL UNIT |
|
|
FUSE |
SPARE |
20A |
NOT USED |
|
EPS |
100A |
EPS (Electric Power Steering) Unit |
* 1. MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering).
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
IG1 |
40A |
IG1 Relay, ACC Relay |
|
IG2 |
40A |
IG2 Relay, E/R Junction Block (START1 Relay) |
|
WIPER FRT2 |
7.5A |
Wiper Relay low |
|
SENSOR6 |
20A |
ECM (Engine Control Module), NOX (Oxides of Nitrogen) Sensor, PM (Particulate Matter) Sensor |
|
SENSOR1 |
20A |
Ignition Coil #1/#2/#3/#4/#5/#6 |
|
SENSOR8 |
10A |
Generator Control Unit (GCU), Ignition Coil #1 |
|
ECU2 |
10A |
ECM (Engine Control Module) |
|
SENSOR5 |
10A |
E/R Junction Block (FUEL PUMP Relay), Fuel Heater Relay |
|
MODULE |
7.5A |
NOT USED |
|
SENSOR9 |
20A |
ECM (Engine Control Module) |
|
SENSOR3 |
20A |
ECM (Engine Control Module) |
|
SENSOR2 |
15A |
Oxygen Sensor #3, Oil Level Sensor |
|
WIPER FRT1 |
30A |
Wiper Relay high |
|
WIPER RR |
15A |
Rear Wiper Relay, Rear Wiper Motor |
|
HORN |
15A |
Horn Relay |
|
A/C2 |
10A |
Air Conditioner Compressor Relay |
|
B/ALARM HORN |
15A |
Burglar Alarm Horn Relay |
|
E-SHIFTER3 |
7.5A |
[With SBW] SCU (Shift by wire Control Unit) |
|
TCU3 |
10A |
TCM (Transmission Control Module) |
|
SENSOR4 |
10A |
Air Conditioner Compressor Relay, Cooling Fan Motor, Oxygen Sensor #1/#2/#4, Purge Control Solenoid Valve, Canister Closer Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust) |
|
SENSOR7 |
15A |
Injector #1/#2/#3/#4/#5/#6 (MPI) |
|
ECU1 |
15A |
ECM (Engine Control Module) |
|
TCU3 |
7.5A |
TRANSMISSION CONTROL UNIT |
|
POWER OUTLET2 |
20A |
Luggage Power Outlet |
|
Relay No. |
Relay Name |
Type |
|---|---|---|
|
G3_1_1 |
BLOWER RELAY |
MINI - 4P |
|
G3_1_2 |
BLOWER RR RELAY |
MINI - 4P |
|
G3_2_3 |
DCU |
MICRO - 4P |
|
G3_1_5 |
START1 RELAY |
MICRO - 4P |
|
G3_1_4 |
FUEL PUMP RELAY |
MICRO - 4P |
|
G15_4_1 |
REAR HEATED RELAY |
MICRO - 4P |
|
G3_2_2 |
FUEL HEATER RELAY |
MICRO - 4P |
|
G3_1_3 |
SPARE |
MICRO - 4P |
|
G16_3_1 |
PTC HEATER1 RELAY |
MICRO - 4P |
|
G15_1_1 |
PTC HEATER2 RELAY |
MICRO - 4P |
|
G16_2_1 |
POWER OUTLET RELAY |
MICRO - 4P |
|
G16_1_1 |
W/S HEATED GLASS1 RELAY |
MICRO - 4P |
|
E41 |
W/S HEATED GLASS2 RELAY |
MICRO - 4P |
|
E42 |
SPARE |
MICRO - 4P |
|
E45 |
SPARE |
MICRO - 4P |

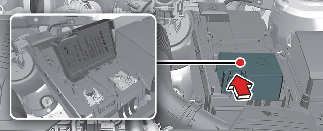

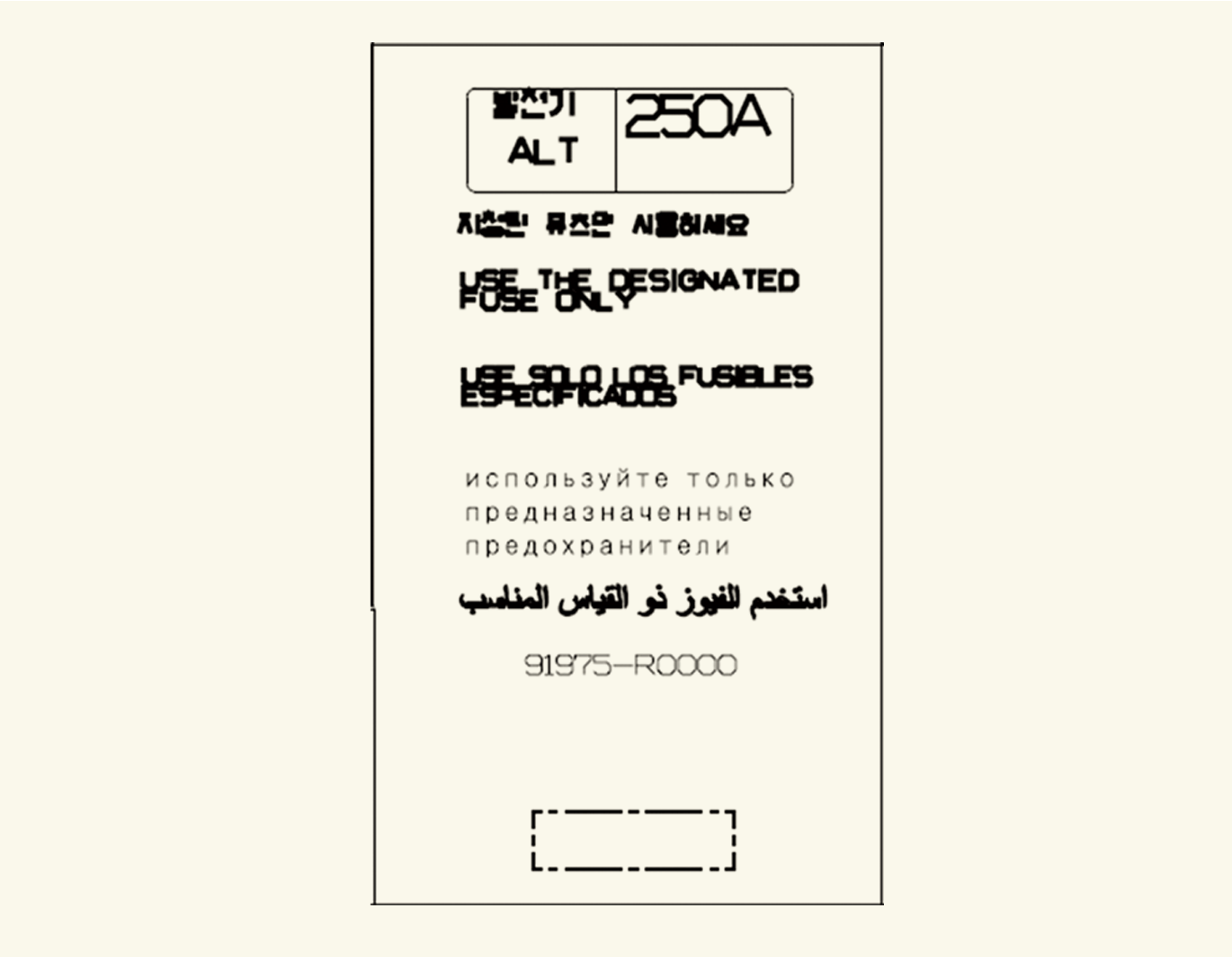

Engine compartment fuse panel (Battery terminal cover)
