Reverse Parking Collision-Avoidance Assist operation
Turning On/Off

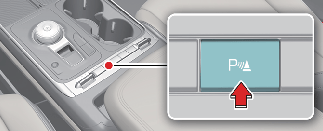

Press and hold the Parking Safety button (
) more than 2 seconds to turn the Parking Collision-Avoidance Assist on or off.
Reverse Parking Collision-Avoidance Assist
When detecting a risk of collision with pedestrians or objects behind the vehicle, the warning sound and steering wheel will vibrate and the warning appears in the cluster. If the Surround View Monitor is active, the Infotainment system screen also displays a warning.
If a collision is urgent, the Reverse Parking Collision-Avoidance Assist controls the breaking of the vehicle.
Backward safety function
Reverse Parking Collision-Avoidance Assist is enabled when the following conditions are satisfied:
-
The liftgate and doors are closed
-
The Electronic Parking Brake (EPB) is released
-
The gear is shifted to R (Reverse)
-
Your driving speed is below 6 mph (10 km/h) (detecting pedestrians)
-
Your driving speed is below 1 mph (4 km/h) (detecting objects)
-
Parking Collision-Avoidance Assist components such as the wide-rear view camera and the rear ultrasonic sensors are in normal conditions
Braking assist is released after 5 minutes. Immediately depress the brake pedal and check your surroundings.
Braking assist is also released under the following conditions when:
-
The gear is shifted to P (Park) or D (Drive)
-
The brake pedal is depressed with sufficient power

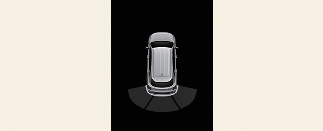

When Parking Collision-Avoidance Assist activates, a line appears at the bottom of the vehicle image in the instrument cluster.

-
Parking Collision-Avoidance Assist operates only once after shifting the gear to R (Reverse). To reactivate Parking Collision-Avoidance Assist, shift the gear from another gear to R (Reverse).
-
When Parking Collision-Avoidance Assist is activated while reversing, braking control will be released after 5 minutes and the Electronic Parking Brake (EPB) will be engaged.
