LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

Type A


	Mode
	Trip Computer	Driving Assist	Turn By Turn (TBT)*	User Settings	Information/Master Warning
Up/Down	Range ^*1	Lane Keeping Assist/Smart Cruise Control/Navigation-based Smart Cruise Control/Lane Following Assist/Highway Driving Assist*	Route Guidance	Head-Up Display*	Intelligent Speed Limit Assist*
	Fuel Economy	Driver Attention Warning*	Destination Info	Driver Assistance	Tire Pressure Monitoring System*
	Accumulated Info			Door	Driving Force Distribution*
	Drive Info			Lights	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Driving Style*			Sound
	Energy Flow			Convenience
				Service Interval
				Theme Selection
				Other
				Eco Vehicle
				Language
				Reset

Type B


	Mode
	Trip Computer	Driving Assist	Turn By Turn (TBT)*
Up/Down	Range ^*1	Lane Keeping Assist/Smart Cruise Control/Navigation-based Smart Cruise Control/Lane Following Assist/Highway Driving Assist	Route Guidance
	Energy Flow		Destination Info
	Drive Info
	After Refuel*
	Accumulated Info
	Digital Speedometer
	Driving Style*
	Tire Pressure Monitoring System*
	Coolant Temperature
	Driving Force Distribution*

The information provided may differ depending on which functions are applicable to your vehicle.

*1: For Plug-in Hybrid vehicle

: if equipped

NOTE

Keep the engine running when configuring the display settings to prevent the battery from discharging.

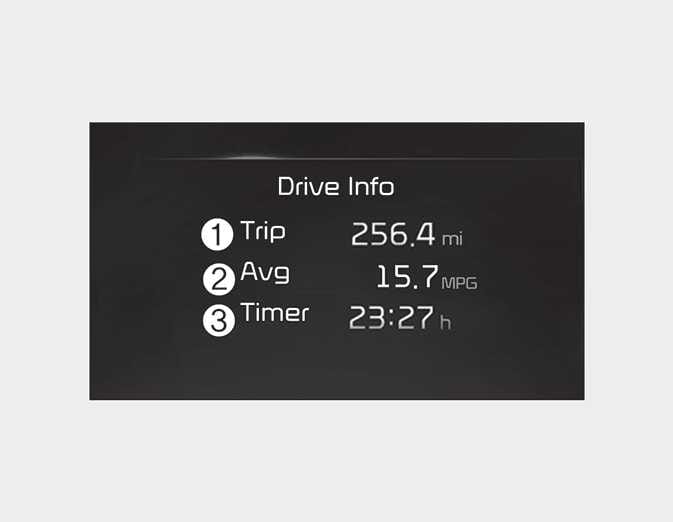

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and timer.

For more details, refer to Trip information (trip computer) and Hybrid system overview.

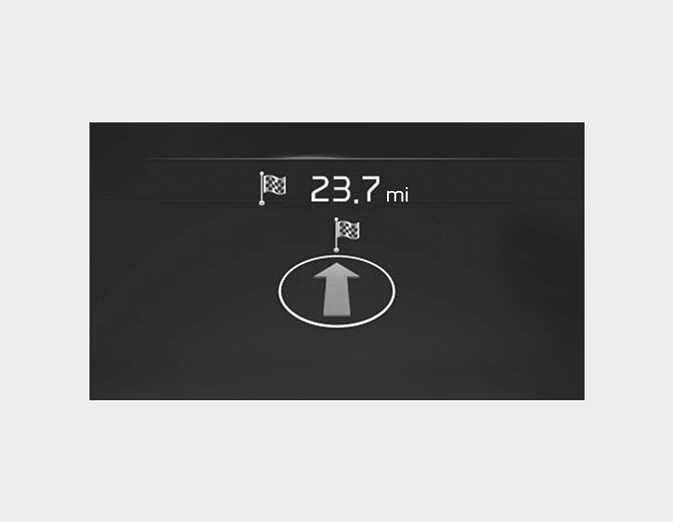

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

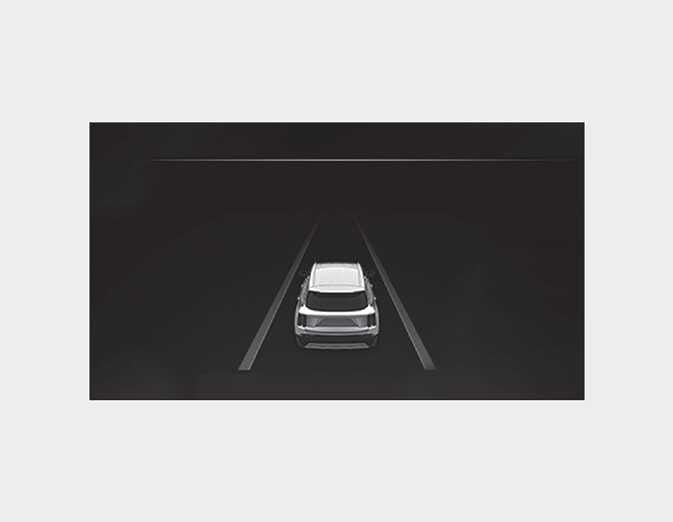

Driving Assist mode

This mode displays the state of:

Lane Safety
Smart Cruise Control
Driver Attention Warning

Information mode

This mode displays the state of:

Speedometer
Engine temperature
Tire pressure

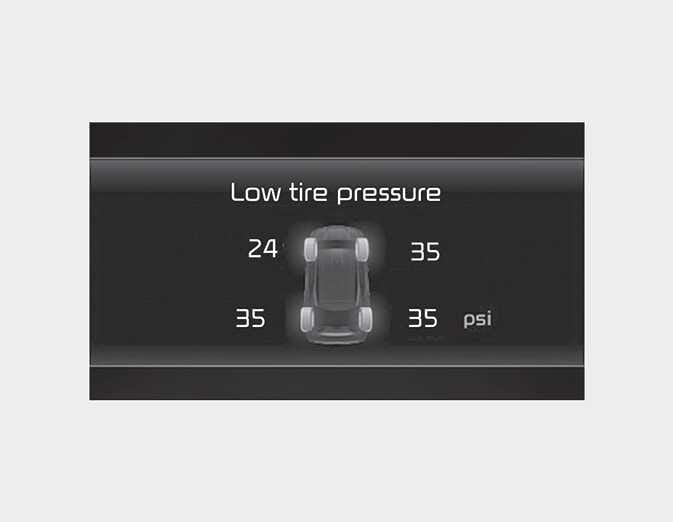

Tire pressure status

This mode displays information related to Tire Pressure.

For more details, refer to Tire Pressure Monitoring System (TPMS).

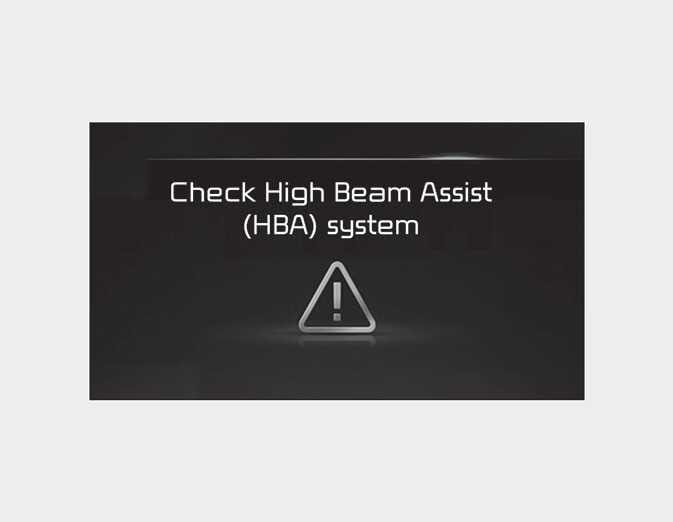

Master warning mode

This warning light informs the driver the following situations.

LED headlamp malfunction
Lamp malfunction
High Beam Assist malfunction: (if equipped)

At this time, a Master Warning icon ( ) will appear beside the User Settings icon ( ), on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

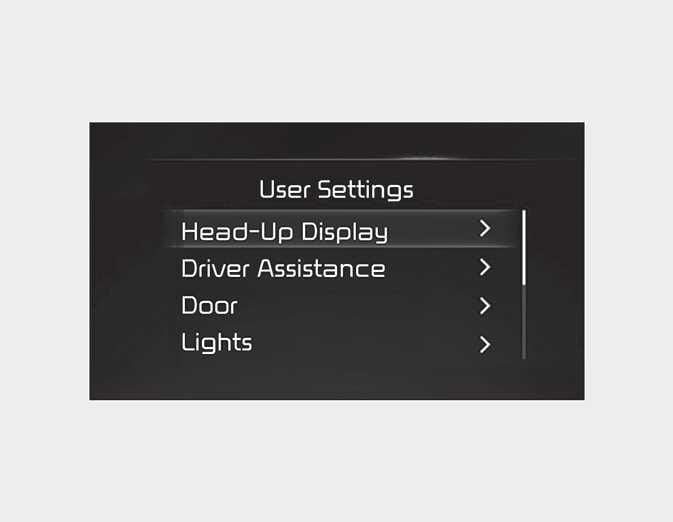

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Head-up Display
Driver Assistance
Lights
Sound
Eco Vehicle
Door
Convenience
Service Interval
Others
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1. Head-Up Display (if equipped)


Items	Explanation
Enable Head-up display	If this item is checked, Head-Up Display will be activated.
Height	Adjust the height (1~20) of the HUD image on the HUD screen.
Rotation	Adjust the degree (-5~+5) of the HUD rotation.
Brightness	Adjust the intensity (1~20) of the HUD brightness.
Contents Selection	To select the content information on the HUD screen.

2. Driver Assistance (if equipped)


Items	Explanation
Driver Attention Warning	Leading Vehicle Departure Alert To select the function. Inattentive Driving Warning To select the function. For more details, refer to Driver Attention Warning (DAW).
Speed Limit Warning	Speed Limit Offset To select the Warning time Speed Limit Assist/Speed Assist Warning/Off To select the functions. For more details, refer to Intelligent Speed Limit Assist (ISLA).
Warning Timing	Standard/Late To select the warning timing
Warning Volume	High/Medium/Low/Off To select the warning volume
Haptic Warning	On/Off To select the haptic warning
Forward Safety	To adjust Forward Collision-Avoidance Assist. Active Assist/Warning Only/Off To select the functions. For more details, refer to Forward Collision-Avoidance Assist (FCA) (Sensor fusion).
Lane Safety	To adjust Lane Keeping Assist. Lane Keeping Assist/Lane Departure Warning/Off To select the functions. For more details, refer to Lane Keeping Assist (LKA).
Blind-Spot Safety	Safe Exit Assist For more details, refer to Safe Exit Warning (SEW) or Safe Exit Assist (SEA). Active Assist/Warning Only/Off For more details, refer to Blind-Spot Collision-Avoidance Assist (BCA).
Parking Safety	Parking Distance Warning Auto On Rear Cross-Traffic Safety To Activate or deactivate Rear Cross-Traffic Collision-Avoidance Assist. For more details, refer to Rear Cross-Traffic Collision-Avoidance Assist (RCCA).

The information provided may differ depending on which systems are applicable to your vehicle.

3. Door (if equipped)


Items	Explanation
Automatically Lock	Enable on shift (for Automatic transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (With the Engine ON, it is activated.) Enable on speed (for Automatic transmission): All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph) Off: The auto door unlock operation will be canceled. If the setting is changed while the vehicle is in motion, the changed setting may not immediately operate.
Automatically Unlock	On shift to P (for Automatic transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.) Vehicle Off: All doors will be automatically unlocked when the ENGINE START/STOP button is set to the OFF position. Off: The auto door unlock operation will be canceled.
2 Press Unlock	If this item is checked, the two press unlock will be activated. The driver's door will unlock if the door unlock button is pressed. When the door unlock button is pressed again within 4 seconds, the remaining doors will unlock.
Horn Feedback	If this item is checked, Horn Feedback will be activated.
Power Liftgate	If this item is checked, Power Liftgate will be activated.
Power Liftgate Speed	Normal/Fast To adjust the power liftgate speed.
Power Liftgate Opening Height	Level 1/Level 2/Level 3/Full Open/User Height Setting To select the height. For more details, refer to Power liftgate.
Smart Liftgate	To activate or deactivate the Smart Liftgate. For more details, refer to Smart Liftgate with Auto Open.

The information provided may differ depending on which systems are applicable to your vehicle.

4. Lights (if equipped)


Items	Explanation
Illumination	To adjust the instrument cluster illumination.
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. For more details, refer to Lighting.
Ambient Light Brightness	Off/1/2/3/4 To adjust the ambient light brightness.
Ambient Light Color	To adjust the ambient light color.
Headlamp Delay	If this item is checked, the headlamp delay function will be activated.
High Beam Assist	If this item is checked, High Beam Assist will be activated.

The information provided may differ depending on which functions are applicable to your vehicle.

5. Sound (if equipped)


Items	Explanation
Welcome Sound	If this item is checked, the welcome sound function will be activated.

6. Convenience (if equipped)


Items	Explanation
Seat (forward/backward) Easy Access	Off/Normal/Extended To select the seat movement
Rear Occupant Alert	If this item is checked, the Rear Occupant Alert (ROA) display will be activated.
Welcome Mirror/Light	On Door Unlock/On Driver Approach To select the welcome mirror/light function.
Wireless Charging System	If this item is checked, the wireless charging function will be activated.
Auto Rear Wiper (in R)	If this item is checked, the Auto Rear Wiper will be activated when the front wiper is On and the gear is selected in (R) (Reverse).
Vehicle Auto-Shut Off	60 min/30 min: To set the vehicle auto-shut off timer Disable: The vehicle auto-shut off function will be canceled. For more details, refer to Vehicle Auto Shut-off system.
Icy Road Warning	If this item is checked, the icy road warning will be activated.

The information provided may differ depending on which functions are applicable to your vehicle.

7. Service interval (if equipped)


Items	Explanation
Enable Service Interval	If this item is checked, the Service Interval function will be activated.
Adjust Interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

NOTE

To use the service interval menu, consult an authorized Kia dealer.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.
The fuse switch is turned off.

8. Theme Selection


Items	Explanation
Theme Selection	You can select the theme in the User Setting mode.

The information provided may differ depending on which functions are applicable to your vehicle.

9. Other


Items	Explanation
Speedometer Unit	mph, km/h To select the Speedometer unit.
Fuel Economy Unit	L/100 km, US gallon, UK gallon To select the Fuel economy unit. For more details, refer to Trip information (trip computer).
Temperature Unit	°F/°C To select the Temperature unit.
Tire Pressure Unit	psi, kPa To select the Tire Pressure Unit

The information provided may differ depending on which functions are applicable to your vehicle.

10. ECO Vehicle (if equipped)


Items	Explanation
Coasting Guide	Coasting Guide To select the function. Sound On/Sound Off To activate or deactivate the sound.
Start Coasting	Later/Normal/Early To select the coasting timing.

The information provided may differ depending on which functions are applicable to your vehicle.

11. Language


Items	Explanation
Language	You can select the language in the User Setting mode.

The information provided may differ depending on which functions are applicable to your vehicle.

12. Reset


Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
