Air bag collision sensors

OMQ4A023011

1

OMQ4A023045

2

OMQ4A023012

3

OMQ4023072

4

OMQ4023073

5

OMQ4023074

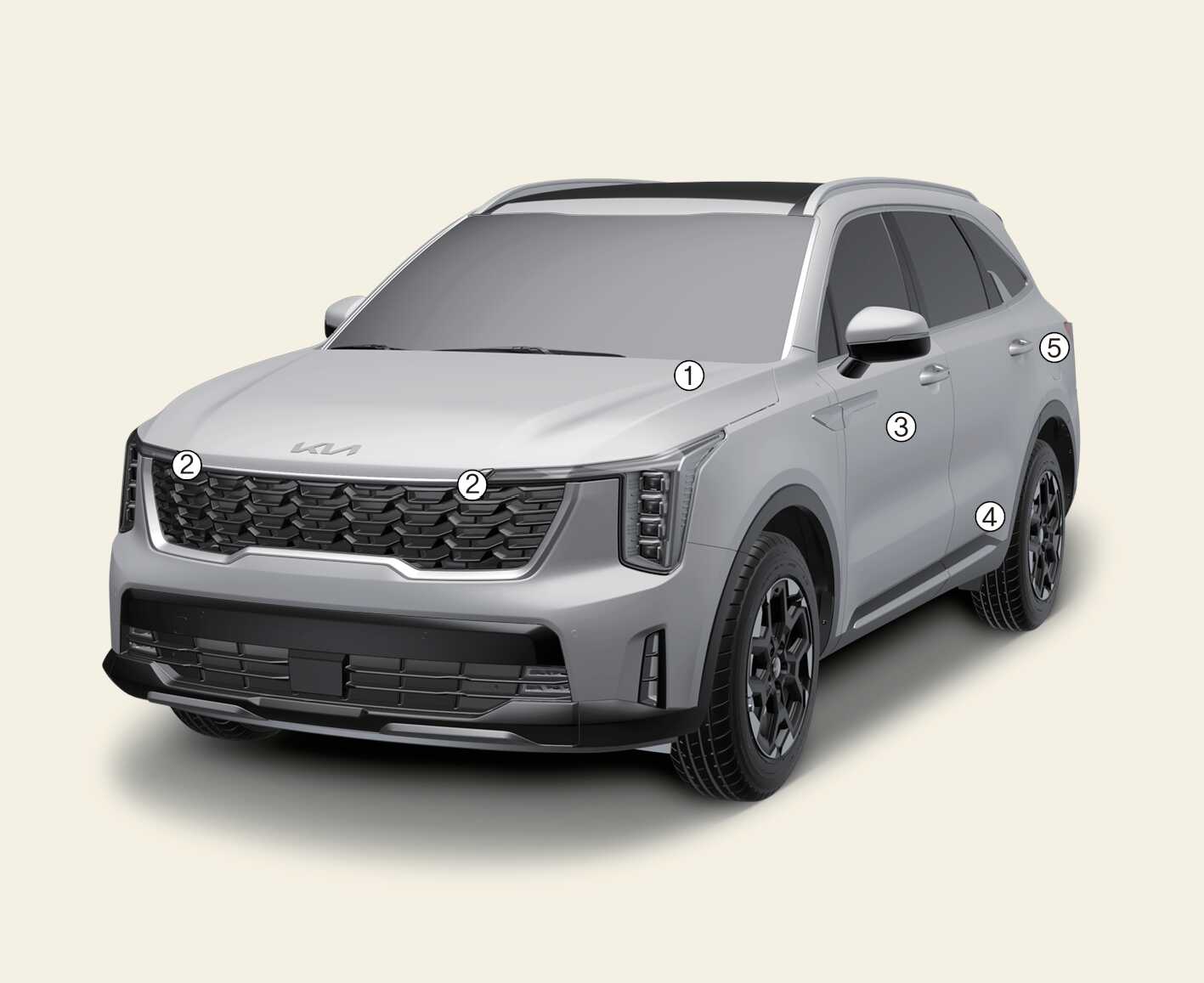

The actual shape and position of sensors may differ from the illustration.

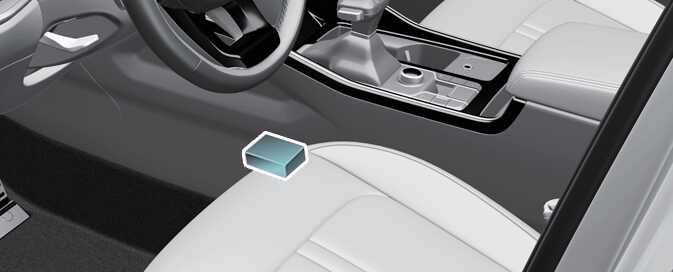

  1. Supplemental Restraint System (SRS) control module/rollover sensor

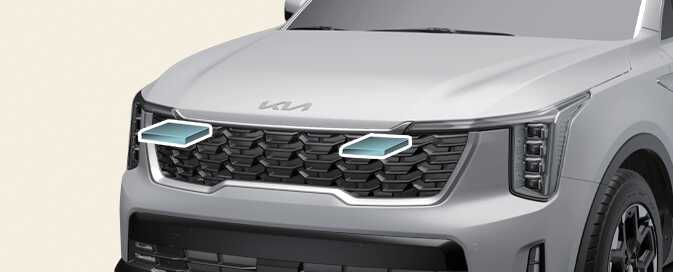

  2. Front impact sensor

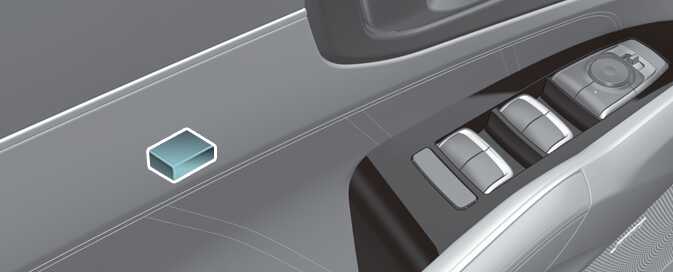

  3. Side pressure sensors (front door)

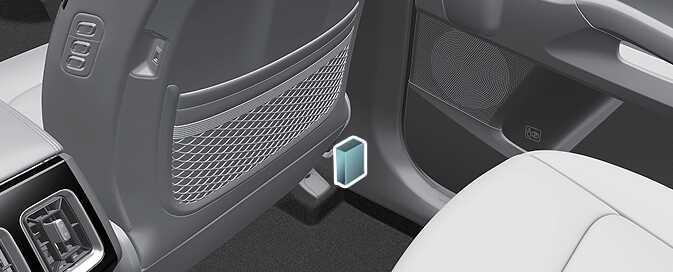

  4. Side impact sensor (B-pillar)

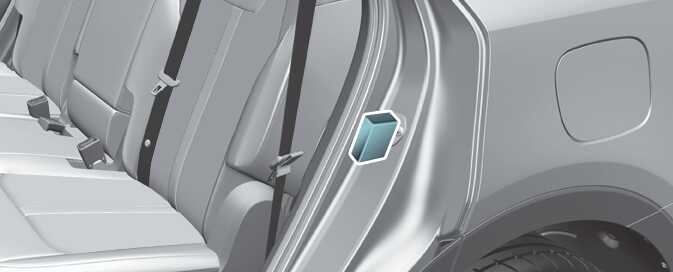

  5. Side impact sensor (C-pillar)

WARNING

Air bag sensors

  • Do not hit or allow any objects to impact the locations where air bags or sensors are installed.

    This may cause unexpected air bag deployment, which could result in serious personal injury or death.

  • If the installation location or angle of the sensors is altered in any way, the air bags may deploy when they should not or they may not deploy when they should.

    Do not try to perform maintenance on or around the air bag sensors. Have the vehicle checked and repaired by an authorized Kia dealer.

  • Do not arbitrarily touch the front impact sensor. When the angle of the sensor is changed, the air bag system may malfunction.

Problems may arise if the sensor installation angles are changed due to the deformation of the front bumper, front end module, body or front doors where side collision sensors are installed. Have the vehicle checked and repaired by an authorized Kia dealer.

Installing bumper guards, side step or running boards, or replacing a bumper (or front door module) with non-genuine parts may adversely affect your Kia collision and air bag deployment performance.

Kia Genuine bumper guards/bumpers are guaranteed for quality and performance.
