Shift lock system

For your safety, the automatic transmission has a shift lock system which prevents shifting the transmission from P (Park) into R (Reverse) unless the brake pedal is depressed.

To shift the transmission from P (Park) into R (Reverse):

  1. Depress and hold the brake pedal.

  2. Start the engine or turn the ENGINE START/STOP button to the ON position.

  3. Move the shift lever.

If the brake pedal is repeatedly depressed and released with the shift lever in the P (Park) position, a chattering noise near the shift lever may be heard. This is a normal condition.

WARNING

Always fully depress the brake pedal before and while shifting out of the P (Park) position to avoid inadvertent motion of your Kia which could injure persons in or around your Kia.

Shift-lock override

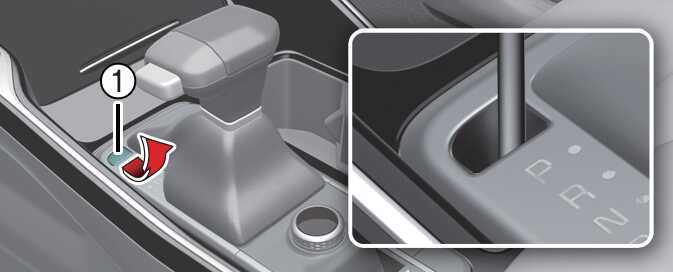

OMQ4043068L

If the shift lever cannot be moved from the P (Park) position to the R (Reverse) position with the brake pedal depressed, continue to depress the brake, then do the following:

  1. Place the ENGINE START/STOP button in the LOCK/OFF position.

  2. Apply the parking brake.

  3. Carefully remove the cap (1) covering the shift-lock release access hole.

  4. Insert a tool (e.g., flathead screwdriver) into the access hole and press down on the tool.

  5. Move the shift lever.

  6. Remove the tool from the shift lock override access hole then install the cap.

If the shift lever does not move even after performing this procedure, have the system inspected by an authorized Kia dealer.
