For safe All Wheel Drive (AWD) operation

NOTE

AWD

The on-road or off-road conditions that dictate All Wheel Drive use expose your vehicle to extreme stress compared to normal road conditions. Slow down and be ready for changes in the composition and traction of the surface under your tires. If you have any doubt about the safety of the conditions you are driving on, stop and consider the best way to proceed.

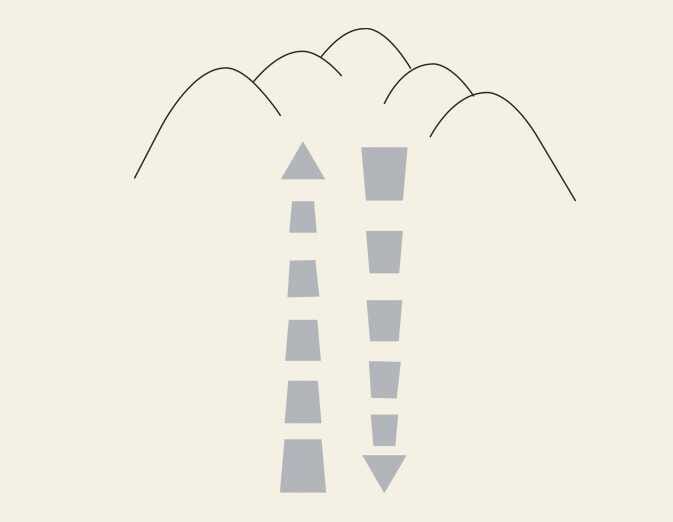

  • Do not drive in deep standing water or mud since such conditions can stall your engine and clog your exhaust pipes. Do not drive down steep hills since it requires extreme skill to maintain control of your Kia.

    OMV063026N

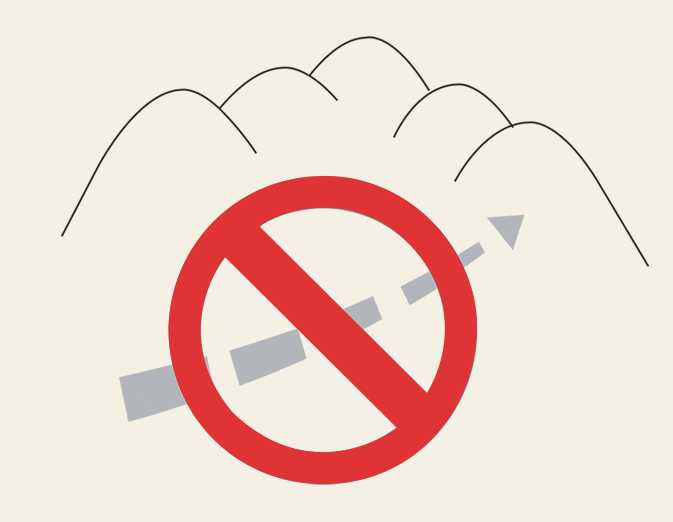

  • When you are driving up or down hills drive as straight as possible. Use extreme caution in going up or down steep hills, since your vehicle may roll over depending on the grade, terrain, and water/mud conditions.

    OMV063027N
    WARNING

    Hills

    Traversing steep hills can be extremely dangerous. This danger can come from slight changes in the wheel angle which can destabilize your Kia. Even if your Kia is maintains stability under power, it can become unstable if your Kia stops its forward motion. Your vehicle may roll over without warning and without time for you to correct a mistake that could cause serious injury or death.

  • You must learn how to corner in a AWD vehicle. Do not rely on your experience in conventional Front Wheel Drive (FWD) vehicles when cornering your Kia in AWD mode. You must drive slower in AWD.

WARNING

AWD

Reduce speed when you turn corners. The center of gravity of AWD vehicles is higher than that of conventional FWD vehicles, making them more likely to roll over when you turn corners too fast.

OMQ4043065L
WARNING

Steering wheel

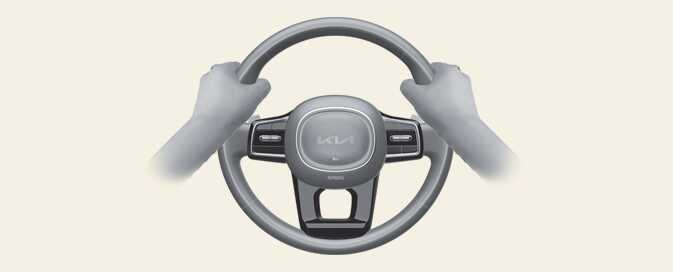

Do not grab the inside of the steering wheel when you are driving on unpaved roads. You may hurt your arm by a sudden steering maneuver or from steering wheel rebound due to impact with objects on the ground. You could lose control of the steering wheel.

  • Always hold the steering wheel firmly when you are driving on unpaved roads.

  • Make sure all passengers are wearing seat belts.

    WARNING

    Wind danger

    If you are driving in heavy wind, your Kia's higher center of gravity decreases your steering control capacity and requires you to drive more slowly.

WARNING

Driving through water

Drive slowly. If you are driving too fast in water, the water can get into the engine compartment and wet the ignition system, causing your vehicle to suddenly stop. If this happens and your vehicle is in a tilted position, your vehicle may roll over.

NOTE

  • Do not drive in water if the level is higher than the bottom of your Kia.

  • Check your brake condition once you are out of mud or water. Press the brake pedal several times as you move slowly until you feel normal braking forces return.

  • Shorten your scheduled maintenance interval if you drive in offroad conditions such as sand, mud or water (refer to Maintenance under severe usage conditions). Always wash your vehicle thoroughly after off-road use, especially the underside of your Kia.

  • Since the driving torque is always applied to the 4 wheels, the performance of the AWD vehicle is greatly affected by the condition of the tires. Be sure to equip your Kia with four tires of the same size and type.

  • A full time AWD vehicle cannot be towed by an ordinary tow truck. Make sure that your Kia is placed on a flatbed truck for moving.

WARNING

AWD driving

  • Avoid high cornering speed.

  • Do not make quick steering wheel movements, such as sharp lane changes or fast, sharp turns.

  • The risk of rollover is greatly increased if you lose control of your vehicle at high speed.

  • In a collision, an unbelted person is significantly more likely to die compared to a person wearing a seat belt.

  • Loss of control often occurs if two or more wheels drop off the roadway and the driver over-steers to re-enter the roadway. If your vehicle leaves the roadway, do not steer sharply. Instead, slow down before pulling back into the travel lanes.

CAUTION

Mud or Snow

If one of the front or rear wheels begins to spin in mud, snow, etc., your Kia can sometimes be driven out by engaging the accelerator pedal further; however, avoid revving the engine continuously at high rpm because doing so could damage the AWD system.
