Downhill Brake Control (DBC)

Downhill Brake Control (DBC)

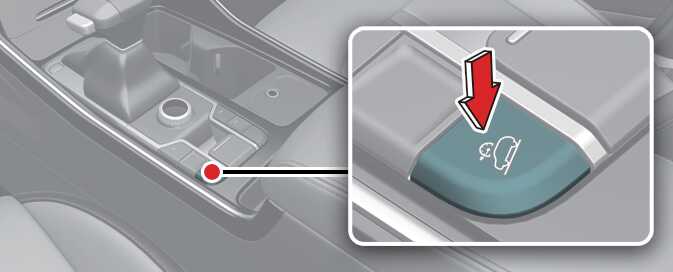

The DBC feature assists the driver to descend down a steep hill without having to depress the brake pedal.

The system automatically applies the brakes to maintain your Kia speed 2.5mph (4 km/h) ~ 25 mph (40 km/h) and allows the driver to concentrate on steering your Kia downhill.

Always turn off the DBC on normal roads. The DBC might activate inadvertently from the standby mode when driving through speed bumps or making sharp curves.

NOTE

The DBC defaults to the OFF position whenever the ENGINE START/STOP button is placed in the ON position.

Noise or vibration may occur from the brakes when the DBC is activated. The rear stop light comes on when DBC is activated.
