Engine oil is used for lubricating, cooling, and operating various hydraulic components in the engine. Engine oil consumption while driving is normal, and it is necessary to check and refill the engine oil regularly. Also, check and refill the oil level within the recommended maintenance schedule to prevent deterioration of oil performance.

Check the engine oil following the below procedure:

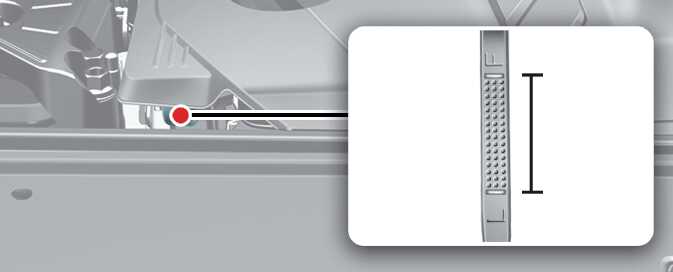

OMQ4A073003

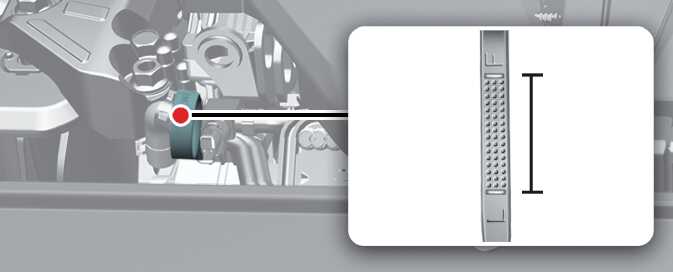

OMQ4A073004

1. Be sure the vehicle is on level ground.

2. Start the engine and allow it to reach normal operating temperature.

3. Turn the engine off, remove the oil filler cap and pull the dipstick out. Wait for 15 minutes for the oil to return to the oil pan.

4. Pull the dipstick out again and check the level. Check if the oil level is between the F-L line, and if it is below the L line, add enough oil to bring the level to F line.

5. Wipe the dipstick clean and re-insert it fully.

   WARNING

   Radiator hose

   Be very careful not to touch the radiator hose when checking or adding engine oil as it may be hot enough to burn you.

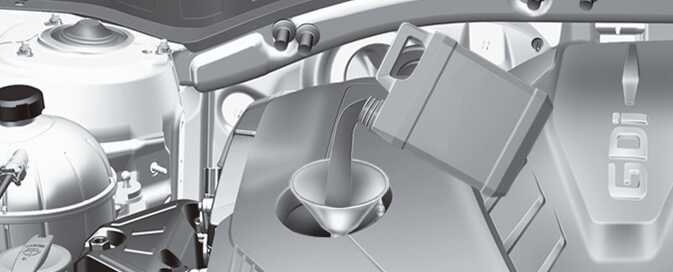

OMQ4A073005

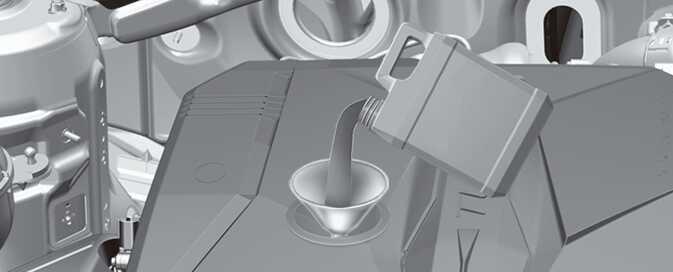

OMQ4A073006

Use a funnel to help prevent oil from being spilled on engine components.

Use only the specified engine oil. (Refer to .)

• Do not spill engine oil when adding or changing engine oil. Wipe off spilled oil immediately.

• The engine oil consumption may increase while you break in your new vehicle. It will stabilize after driving 4,000 miles (6,000 km).

• The engine oil consumption can be affected by driving habits, climate conditions, traffic conditions, oil quality, etc. Therefore, it is recommended that you inspect the engine oil level regularly and refill it if necessary.
