Filter replacement

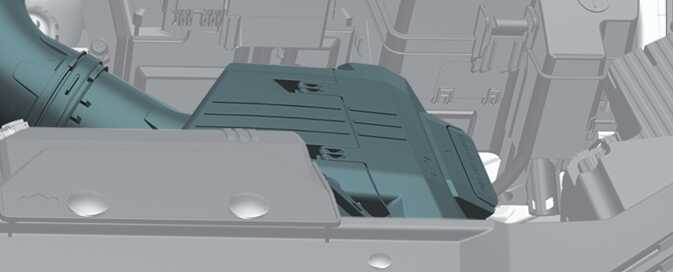

Air cleaner filter must be replaced when necessary and should not be washed.

OMQ4A073012

You can clean the filter when inspecting the air cleaner compartment. Clean the filter by using compressed air.

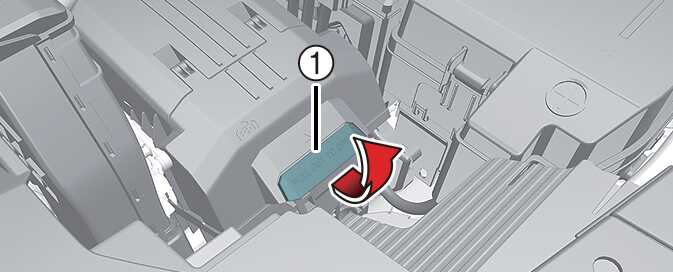

  1. Pull up the lever (1) on the air cleaner cover and release the lock.
    OMQ4073013L

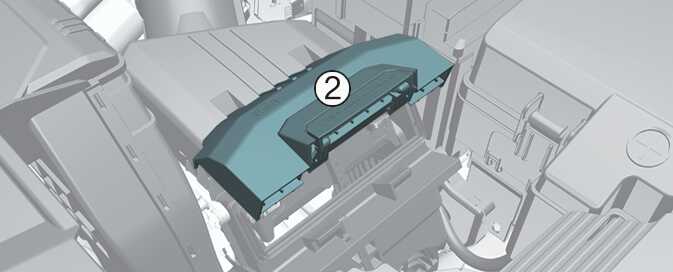

  2. Pull up the air cleaner cover (2) and open.
    OMQ4A073014

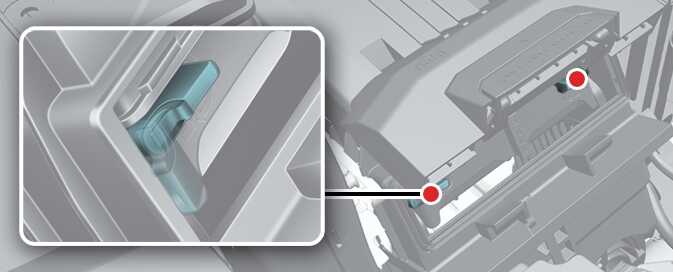

  3. Rotate the fixed lever on the filter and loosen the lock.
    OMQ4A073015
  4. Replace the air cleaner filter.
  5. Assemble in reverse order.

Replace the filter according to the Maintenance Schedule.

If the vehicle is operated in extremely dusty or sandy areas, replace the element more often than the usual recommended intervals. (Refer to Maintenance under severe usage conditions)

CAUTION

  • Do not drive with the air cleaner removed; this will result in excessive engine wear.

  • When removing the air cleaner filter, be careful that dust or dirt does not enter the air intake, or damage may result.

  • Use genuine replacement parts from an authorized Kia dealer.
