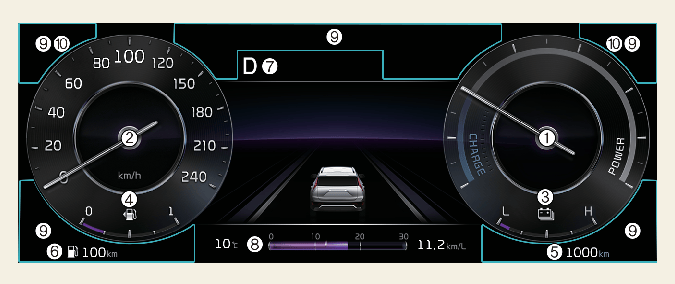

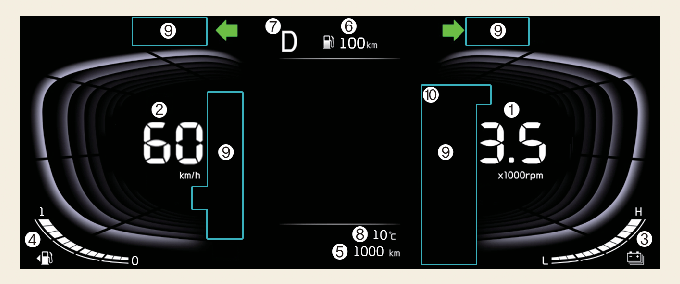

Tachometer

Indicates the approximate number of engine revolutions per minute (rpm).

For type B, select Settings → Vehicle → Cluster → Tachometer display to display tachometer based on drive mode.

Power gauge

Indicates whether the current driving condition is fuel efficient or not.

• CHARGE: energy made by the vehicle is being converted to electrical energy. (Regenerated energy)

• ECO: Shows that the vehicle is being driven in an Eco-friendly manner.

• POWER: Shows that the vehicle is exceeding the Eco-friendly range.

km/h, MPH

The speed of the vehicle in kilometers per hour (km/h) or miles per hour (mph).

Indicates the remaining hybrid battery power.

Indicates the approximate amount of fuel remaining in the fuel tank.

Indicates the total distance that the vehicle has been driven.

Indicates the distance the vehicle can be driven with the remaining fuel.

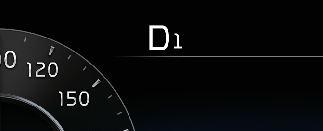

Indicates which gear is selected.

Indicates the current outside air temperatures.

Refer to More Details.

CD (Charge Depleting, Electric) mode: The high-voltage (hybrid) battery is used to drive the vehicle.

AUTO mode: The AUTO mode will be automatically selected from either from Electric (CD) mode or Hybrid (CS) mode by the system according to the driving

CS (Charge Sustaining, Hybrid) mode: The high-voltage (hybrid) battery and gasoline engine is used to drive the vehicle. A corresponding message is displayed to indicate the selected mode.

EV+ mode: The high-voltage (hybrid) battery is only used to drive the vehicle. (Except completely depressing the accelerator pedal)
