Rear View Monitor settings

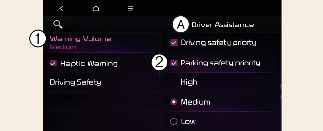

Warning volume
A: Driver Assistance
-
Warning Volume
-
Parking Safety Priority
If Parking Safety Priority is selected, the audio volume will temporarily decrease while Rear View Monitor is operating for safe parking.
If you change the Warning volume, the Warning volume of other Driver Assistance systems may change.

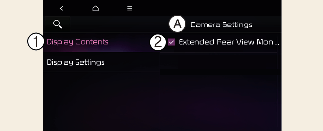

Camera settings
A: Camera Settings
-
Display Contents
-
Display Settings
You can change Rear View Monitor 'Display Contents' by touching the setup icon (
) on the screen while Rear View Monitor is operating, or touching Settings → Vehicle → Driver assistance → Parking safety → Camera settings on the infotainment system
-
Display Contents: To change the settings of Rear view parking guide and Extended rear camera use.
-
Display Settings: To change the screen's brightness and contrast.
The settings menu may not be depending on the specifications of the vehicle specifications.
Rear View Parking Guide
Rear View Parking Guide Lines

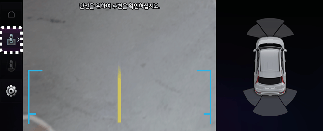

If Rear View Parking Guide Lines is selected, the rear view parking guide lines will be displayed at the left side of the infotainment system screen.
The horizontal guideline shows the distance of 0.5 m (1.6 ft.), 1 m (3.3 ft.) and 2.3 m (7.6 ft.) from the vehicle.

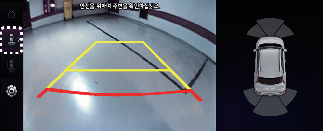

Top View Parking Guide Lines
If Rear View Parking Guide Lines is selected, the top view parking guide lines will be displayed at the left side of the infotainment system screen.
The horizontal scale of rear top view paring guide indicates the tailgate opening distance, 1.5 m from the vehicle.
Extended rear camera use
With the vehicle on, touch Settings → Vehicle → Driver assistance → Parking safety → Camera settings → Display contents → Extend rear camera use on the infotainment system to turn on Extended Rear View function and deselect to turn off the function.
