LCD Display Modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

	Mode
	Trip Computer	Turn By Turn (TBT)	Driving Assist	User Settings	Master warning
Up/Down	Fuel Economy	Route Guidance	Smart Cruise Control	Head-Up Display	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Accumulated Info	Destination Info	Lane Safety	Driver Assistance
	Drive Info		Driver Attention Warning	Door
	Speedometer			Lights
				Sound
				Convenience
			TPMS	Service Interval
				Other features
				Reset

The information provided may differ depending on which functions are applicable to your vehicle.

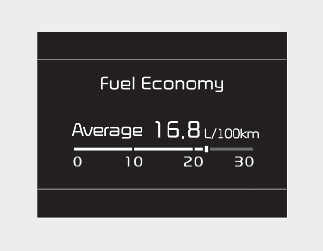

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

* For more details, refer to More Details.

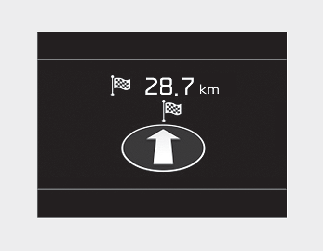

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

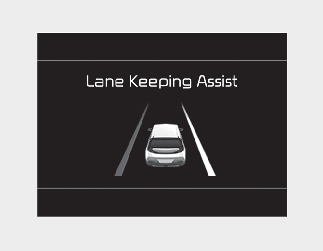

Driving Assist mode

This mode displays the state of:

Smart Cruise Control
Lane Keeping Assist
Driver Attention Warning
Tire Pressure

* For more details, refer to each system information in More Details.

Tire pressure status

* For more details, refer to More Details.

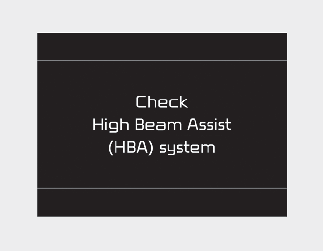

Master warning mode

This warning light informs the driver the following situations.

Forward Collision-Avoidance Assist malfunction (if equipped)
Forward Collision-Avoidance Assist radar blocked (if equipped)
Blind-Spot Collision Warning malfunction (if equipped)
Blind-Spot Collision Warning radar blocked (if equipped)
LED headlamp malfunction (if equipped)
Lamp malfunction
High Beam Assist malfunction (if equipped)
Smart Cruise Control malfunction (if equipped)
Smart Cruise Control radar blocked (if equipped)

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display.

If the warning situation is resolved, the master warning light will be turned off and the Master Warning icon will disappear.

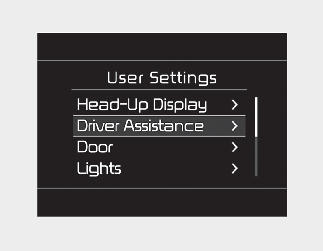

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Head-Up Display
Driver Assistance
Door
Lights
Sound
Convenience
Service Interval
Other features
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

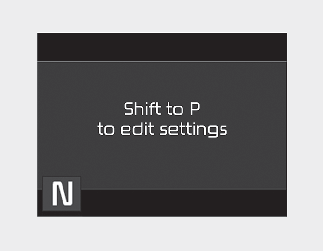

Shift to P to edit settings / Engage parking brake to edit settings

This warning message appears if you try to adjust the User Settings while driving.

For your safety, change the User Settings after parking the vehicle, applying the parking brake and moving the shift lever to P (Park).

1. Head-Up Display (if equipped)

	Explanation
Display Height	Adjust the height (1~20) of the HUD image on the HUD screen.
Rotation	Adjust the degree (-5~+5) of the HUD rotation.
Brightness	Adjust the intensity (1~20) of the HUD brightness.
Contents Selection	If below items are checked, the items will be activated. Audio/Video info Driving assist info Blind-spot safety info Turn By Turn Traffic Info

2. Driver Assistance (if equipped)

	Explanation
SCC Reaction	Slow/Normal/Fast To adjust the sensitivity of the Smart Cruise Control system. * For more details, refer to More Details.
Driver Attention Warning	High Sensitivity/Normal Sensitivity/Off To adjust the sensitivity of the Driver Attention Warning. * For more details, refer to the More Details.
Warning Timing	Normal/Late To select the Warning time
Warning Volume	High/Medium/Low To select the Warning volume
Lane Safety	Lane Keeping Assist/Lane Departure Warning/Off To select the functions.
Forward Safety	Active assist, Warning Only, Off To select the functions.
Blind-Spot Safety	Rear Cross-Traffic Safety/Warning Only/Off To select the functions.

* The information provided may differ depending on which functions are applicable to your vehicle.

3. Door

	Explanation
Auto Lock	Disable: The auto door unlock operation will be canceled. Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph). Enable on Shift (if equipped with Dual clutch transmission/Intelligent variable transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.(With the Engine ON, it is activated.)
Auto Unlock	Disable: The auto door unlock operation will be canceled. Vehicle Off / Key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the Engine Star/Stop button is set to the OFF position. On shift to P (if equipped with Dual clutch transmission/Intelligent variable transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position.(With the Engine ON, it is activated.)

Explanation

Auto Lock

Disable: The auto door unlock operation will be canceled.
Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph).
Enable on Shift (if equipped with Dual clutch transmission/Intelligent variable transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.(With the Engine ON, it is activated.)

Auto Unlock

Disable: The auto door unlock operation will be canceled.
Vehicle Off / Key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the Engine Star/Stop button is set to the OFF position.
On shift to P (if equipped with Dual clutch transmission/Intelligent variable transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position.(With the Engine ON, it is activated.)

* The information provided may differ depending on which functions are applicable to your vehicle.

4. Lights

	Explanation
One touch turn indicator	Off: The one touch turn signal function will be deactivated. 3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Head Lamp Delay	If this item checked, the head lamp delay function will be activated.

Explanation

One touch turn indicator

Off: The one touch turn signal function will be deactivated.
3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly.

* For more details, refer to More Details.

Head Lamp Delay

If this item checked, the head lamp delay function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Sound

	Explanation
Welcome sound	If this item checked, the welcome sound function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

6. Convenience (if equipped)

	Explanation
Welcome Mirror	If this item checked, the welcome Mirror function will be activated.
Wiper/Lights Display	If this item checked, the Wiper/Lights Display will be activated.
Auto rear wiper (reverse)	If this item checked, the Auto rear wiper will be activated.
Gear Position Pop-up	If this item is checked, the Gear position pop-up display will be activated.
Icy road warning	If this item is checked, the Icy road warning display will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

7. Service Interval

	Explanation
Enable Service Interval	If this item is checked, the Service Interval function will be activated.
Adjust Interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.

8. Other features (if equipped)

	Explanation
Fuel Economy Auto Reset	If this item checked, the average fuel economy will reset automatically after refueling or after ignition.
Fuel Economy Unit	L/100 km, US gallon, UK gallon To select the Fuel economy unit. * For more details, refer to "Trip Computer" in this chapter.
Temperature Unit	°C / °F To select the Temperature unit.
Tire Pressure Unit	kPa, psi, bar To select the Tire Pressure Unit
Torque Unit	N·m, kgf·m, lbf·ft To select the Torque Unit
Turbo boost pressure Unit	kPa, psi, bar To select the Turbo boost pressure Unit

* The information provided may differ depending on which functions are applicable to your vehicle.

9. Reset

	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
