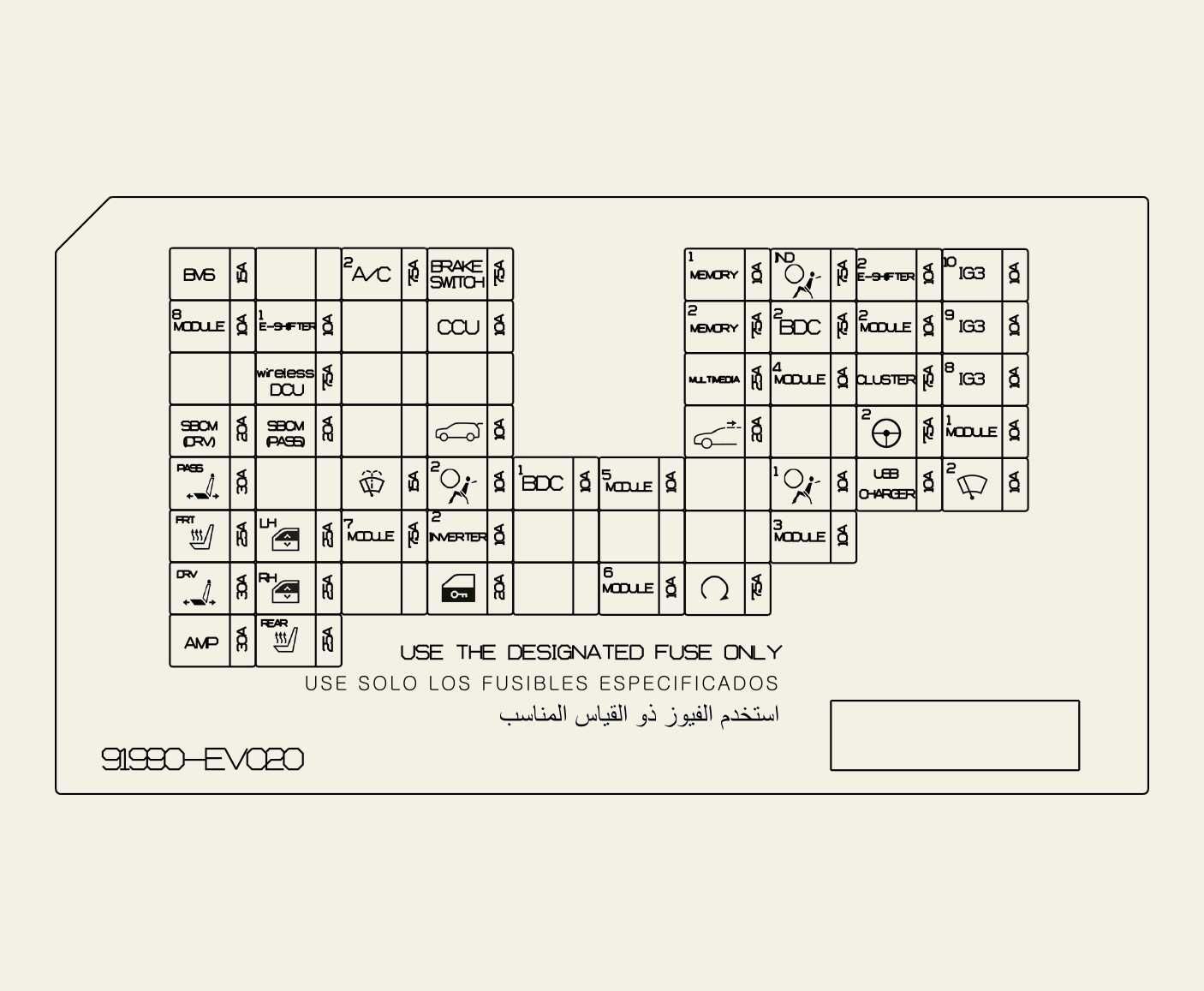

Label zekeringkast bestuurderszijde
Verbindingsblok PDC
|
Naam zekering |
Symbool |
Stroomsterkte zekering |
Beveiligd circuit |
|---|---|---|---|
|
START |
|
7,5 A |
VPC (Vehicle Platform Controller), BDC (Body Domain Controller) |
|
USB CHARGER |
|
10A |
Stoelverwarming en ventilatiesysteem (PASS), stoelverwarming en ventilatiesysteem (rijden), USB-lader |
|
MODULE1 |
|
10A |
BDC (Body Domain Controller), DCU (Domain Control Unit), ingebouwde camera, CCNC, CCU (Central Communication Unit), ADP (Acoustic Design Processor speaker), ADAS-parkeren ECU, Harman AMP |
|
AIR BAG1 |
|
10A |
ACU (Air Control Unit, luchtregelingssysteem), ODC (Occupant Detection System) |
|
A/BAG IND |
|
7,5 A |
Controlelampje airbag bovenconsole |
|
E-SHIFTER2 |
|
10A |
Shift-By-Wire-schakelaar |
|
CLUSTER |
|
7,5 A |
Cluster, head up-display |
|
BDC2 |
|
7,5 A |
BDC (Body Domain Controller) |
|
MDPS2 |
|
7,5 A |
MDPS-eenheid (module elektrische stuurbekrachtiging) |
|
MODULE2 |
|
10A |
CCU (Central Communication Unit), P/schakelaar ruitbediening, remlichtschakelaar |
|
MODULE3 |
|
10A |
ADAS-rijden, frontzichtcamera, DCU (Domain Control Unit), ADAS-parkeren, Hoekradar, FCA |
|
MODULE4 |
|
10A |
CCNC, ICC (In Cabin Camera), CPAD Switch, CDU (Climate Display Unit), ingebouwde camera, ECM-binnenspiegel |
|
A/C2 |
|
7,5 A |
DATC (Dual Automatic Temperature Control) |
|
WASHER |
|
15A |
Combischakelaar, borgring motor |
|
MODULE7 |
|
7,5 A |
BDC (Body Domain Controller) |
|
IG3 8 |
|
10A |
CCU (Central Communication Unit) |
|
IG3 9 |
|
10A |
CCNC, PTC-verwarmingssignaal, CDU (Climate Display Unit), DATC (Dual Automatic Temperature Control), Active Incar, PM-sensor, P/schakelaar ruitbediening RL en RR, V2L-signaal, DOOR-schakelaar |
|
BMS |
|
15A |
BMS (batterijbeheersysteem) |
|
AMP |
|
30A |
Harman AMP |
|
P/SEAT Driving |
|
30A |
Stoelverwarming en ventilatiesysteem (elektrisch verstelbare stoelen) |
|
P/SEAT PASS |
|
30A |
Stoelverwarming en ventilatiesysteem (elektrisch verstelbare stoelen) |
|
S/HEATER RR |
|
25A |
Stoelverwarming achter |
|
S/HEATER FRT |
|
25A |
Stoelverwarming voor |
|
P/WINDOW LH |
|
25A |
Elektrisch bedienbare ruit links |
|
P/WINDOW RH |
|
25A |
Elektrisch bedienbare ruit rechts |
|
SBCM Driving |
|
20A |
SBCM (Side Body Control Module) |
|
SBCM PASS |
|
20A |
SBCM (Side Body Control Module) |
|
wireless DCU |
|
7,5 A |
DCU (Domain Control Unit) |
|
E-SHIFTER1 |
|
10A |
Shift-By-Wire-schakelaar |
|
MODULE8 |
|
10A |
ICC (In Cabin Camera), ADAS-rijden, regensensor, OBD |
|
MULTIMEDIA |
|
25A |
CCNC (Connected Car Navigation Cockpit) |
|
MEMORY2 |
|
7,5 A |
USB-jack, DATC (Dual Automatic Temperature Control), BDC (Body Domain Controller) |
|
MEMORY1 |
|
10A |
Cluster, sfeerlamp, ingebouwde camera, head-up-display, ETCS (Electric Toll Collection System), ADP (Acoustic Design Processor speaker), ADAS-parkeren ECU, hoekradar, UWB (Ultra Wide Band) |
|
CCU |
|
10A |
CCU (Central Communication Unit) |
|
BDC1 |
|
10A |
BDC (Body Domain Controller), UWB (Ultra Wide Band), O/S (Outside) hendel |
|
BRAKE SWITCH |
|
7,5 A |
Remlichtschakelaar, BDC (Body Domain Controller) |
|
DOOR LOCK |
|
20A |
Relais en servo portiervergrendeling |
|
TAILGATE OPEN |
|
10A |
Servo achterklepvergrendeling |
|
MODULE5 |
|
10A |
VESS (Virtual Engine Sound-systeem) |
|
AIR BAG2 |
|
10A |
ACU (airbagmodule) |
|
MODULE6 |
|
10A |
P/schakelaar ruitbediening, PTG (Power Tail Gate, elektrische achterklep), stoelverwarming en ventilatiesysteem |
|
SUNROOF |
|
20A |
Schuif-/kanteldak |
|
WIPER FRT2 |
|
7,5 A |
Ruitenwissers voorzijde |
