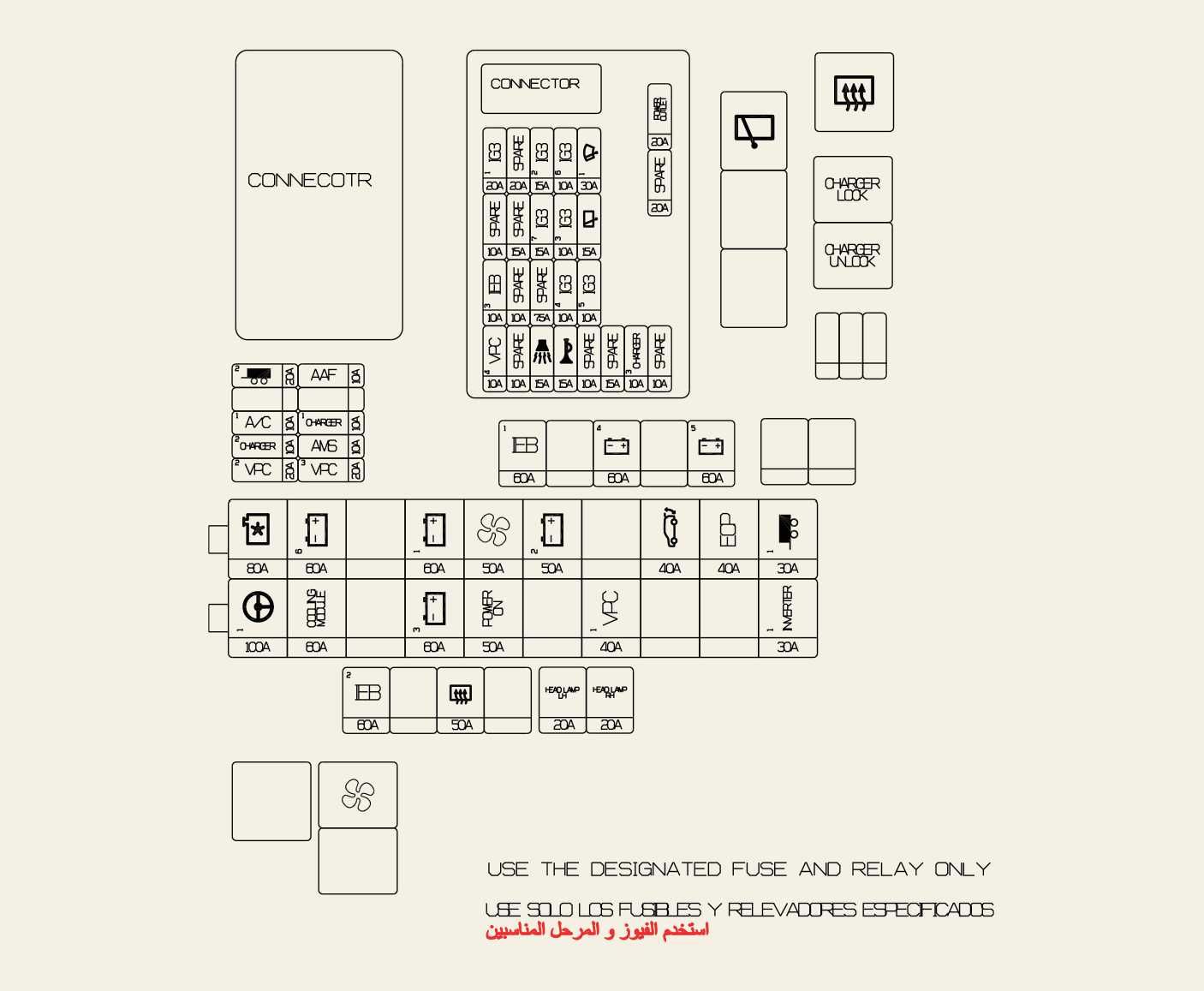

IEB1

IEB (Intergrated Electric Booster)

B+4

PDC B+4 (IPS13, MULTIMEDIA,MEMORY1, MEMORY2, CCU (Central Communication Unit), BDC (Body Domain Controller), BRAKE SWITCH, RESERVE, DOOR LOCK, FS20, TAILGATE OPEN)

B+5

PDC B+5 (RESERVE, MODULE5, AIR BAG2, INVERTER2 (EAWD), MODULE6, RESERVE, SCHUIF-/KANTELDAK, RESERVE)

MDPS1

MDPS-eenheid (module elektrische stuurbekrachtiging)

COOLING MODULE

KOELMODULE

SPARE

-

B+3

PDC B+3 (BMS (batterijbeheersysteem), Harman AMP, stoelverwarming en ventilatiesysteem (elektrisch verstelbare stoelen), stoelverwarming achter, stoelverwarming voor, RESERVE, elektrisch bedienbare ruit links, elektrisch bedienbare ruit rechts, SBCM (bedieningsmodule carrosserie zijkant) rijden, SBCM (bedieningsmodule carrosserie zijkant) passagier, draadloze DCU, E-SHIFTER1, RESERVE, MODULE8)

POWER ON

PDC POWER ON (AIR BAG1, A/BAG IND, E-SHIFTER2, CLUSTER, BDC2 (Body Domain Controller), MDPS2, MODULE2, MODULE3, MODULE4, RESERVE, IPS14, A/C2, RESERVE, WASHER, MODULE7, RESERVE)

INVERTER1

INVERTER

COOLING FAN

Koelventilator

B+6

CCU (Central Communication Unit), P/WDW SW, V2L SIG, DOOR SW, VPC (Vehicle Platform Controller), ICCU (Intergrated Charging Control Unit)

B+1

PDC B+1 (IPS03, IPS07, IPS02, IPS06, IPS05, IPS01, IPS04)

BLOWER

Relais aanjager airconditioning

B+2

PDC B+2 (IPS09, IPS12, IPS11, IPS08, IPS10)

POWER TAILGATE

ELEKTRISCHE ACHTERKLEP

TRAILER1

TRAILER

TRAILER2

TRAILER

A/C1

DATC (Dual Automatic Temperature Control)

CHARGER1

CDM (Charge Door Module, laaddeurmodule)

CHARGER1

Relais vergrendelen, ontgrendelen lader

AMS

AMS (Alternater Management System)

VPC2

VPC (Vehicle Platform Controller)

VPC3

VPC (Vehicle Platform Controller)

HEAD LAMP LH

KOPLAMP LINKS

HEAD LAMP RH

KOPLAMP RECHTS

REAR HEATED

Achterruitverwarming

CHARGER3

VCMS (Vehicle Charging Management System), ICCU (Intergrated Charging Control Unit)

SPARE

-

SPARE

-

IG3 1

IG3 FUSE (IG3_8, IG3_9, IG3_10)

SPARE

-

IG3 2

VPC (Vehicle Platform Controller)

IG3 3

ICCU (Integrated Charging Control Unit)

IG3 4

Elektrische compressor

IG3 5

BMS (batterijbeheersysteem)

IG3 6

Omvormer voorzijde

IG3 7

VCMS (Vehicle Chargeing Management System)

SPARE

-

HORN

HORN Relay

B/ALARM HORN

Claxon inbraakalarmsysteem, LO_B/relais inbraakalarmsysteem

SPARE

-

WIPER FRT1

Ruitenwissermotor, ruitenwisser laag relais voor

WIPER RR

Ruitenwissermotor achter

POWER OUTLET

Relais 12 V-aansluiting

SPARE

-

IEB3

IEB (Intergrated Electric Booster)

SPARE

-

SPARE

-

SPARE

-

SPARE

-

SPARE

-

VPC4

VPC (Vehicle Platform Controller)
