Trip information (trip computer) (For Type B cluster)

The trip computer is a microcomputer- controlled driver information system that displays information related to driving.

NOTICE

Some driving information stored in the trip computer resets if the battery is disconnected.

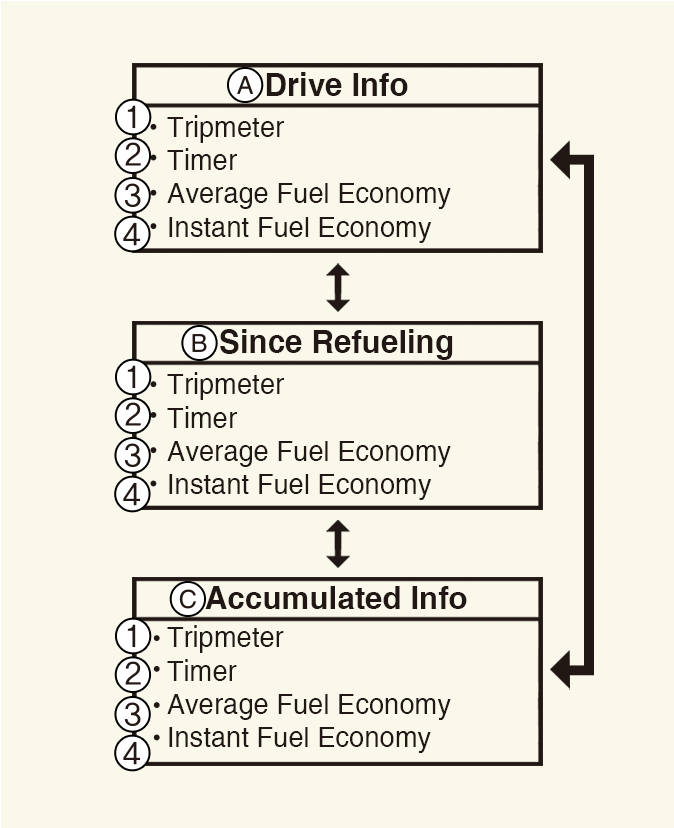

Trip Modes

A: Drive Info

B: Since Refuelling

C: Accumulated Info

  1. Tripmeter

  2. Timer

  3. Average Fuel Economy

  4. Instant Fuel Economy

To change the trip mode, scroll the toggle the switch ( / ) on the steering wheel.

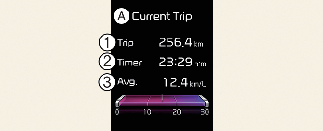

Fuel economy

A: Current Trip

  1. Trip

  2. Timer

  3. Avg.

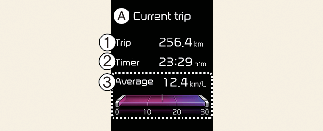

Average Fuel Economy

  • The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy reset.

    • Fuel economy range: 0.0 ~ 99.9 L/100km, km/L or MPG

  • The average fuel economy can be reset both manually and automatically.

  • Manual reset

    To clear the average fuel economy manually, press the OK button on the steering wheel for more than 1 second when the average fuel economy is displayed.

  • Automatic reset

    To make the average fuel economy be reset automatically whenever refuelling, select the "Fuel Econ. Reset" mode in User Setting menu of the LCD display (Refer to More Details).

    - Off : You may set to default manually by using the trip switch reset button.

    - After Vehicle On: The vehicle will automatically set to default once 4 hours pass after the Ignition is in OFF.

    - After refuelling: After refuelling more than 6 litres and driving over 1 km/h, the vehicle will reset to default automatically.

NOTICE

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 300 metres (0.2 miles) since the ignition switch or ENGINE START/STOP button is turned to ON.

Instant Fuel Economy

  • This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 8 km/h (5 mph).

    • Fuel economy range:

      0 ~ 30 L/100km, km/L or 0 ~ 50 MPG

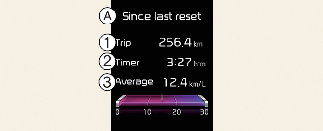

Accumulated driving information mode

This display shows the accumulated trip distance (1), the total driving time (2), and the average fuel efficiency (3).

A: Since Last Reset

  1. Trip

  2. Timer

  3. Avg.

  • Accumulated information is calculated after the vehicle has run for more than 300 metres (0.2 miles).

  • If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

Drive Info display

This display shows the trip distance (1), the total driving time (2), and the average fuel efficiency (3) information once per one ignition cycle.

A: Current Trip

  1. Trip

  2. Timer

  3. Avg.

  • Fuel efficiency is calculated after the vehicle has run for more than 300 metres (0.2 miles).

  • The Driving Information will be reset 4 hours after ignition has been turned off. So, when the vehicle ignition is turned on within 4 hours, the information will not be reset.

  • If you press "OK" button for more than 1 second after the Driving Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.
