Home > Features of your vehicle > Automatic climate control system > Air Conditioning refrigerant label

Air Conditioning refrigerant label (if equipped)

Example

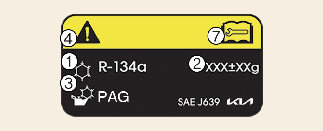

R-134a

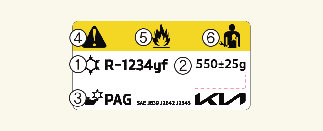

R-1234yf

* The actual Air Conditioning refrigerant label in the vehicle may differ from the illustration.

Each symbols and specification on air conditioning refrigerant label means as below;

  1. Classification of refrigerant

  2. Amount of refrigerant

  3. Classification of Compressor lubricant

  4. Caution

  5. Flammable Refrigerant

  6. To requires Registered Technician to service Air Conditioning system

  7. Service manual

If the refrigerant label is equipped, it is located on the underside of the bonnet.
