Setting the charge level of the portable charger

N_QVe27_D07_005_E

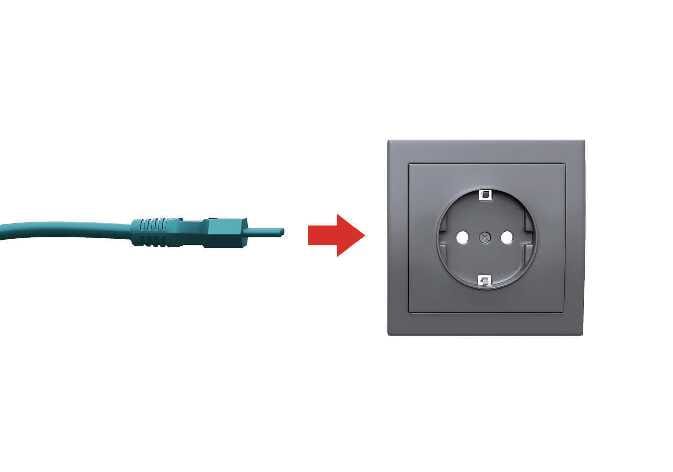

  1. Check the rated current of the household electric outlet before you connect the plug to it.
  2. Connect the ICCB plug to a household electrical outlet.
  3. Check the display window on the control box.
  4. Press the button (1) on the back of the control box for 2 to 8 seconds to adjust the charge level. (Refer to the charging cable type and example for setting the charge level.)
    N_CT25Q053

    The charge level on the display window of the control box changes every time you press the button (1).

  5. When you finish setting the charge level, start charging according to the portable charge procedure.

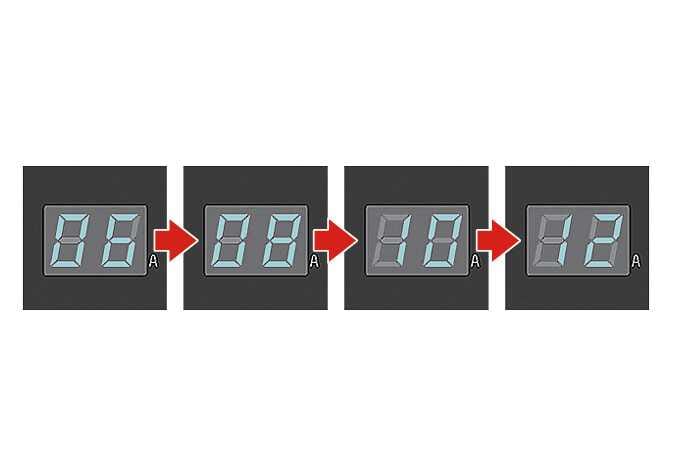

    Figure 1. Control box display window
    N_CT25Q052

    Example for setting the In-Cable Control Box (ICCB)charge level

    This example is for reference only. The actual charge level might vary according to the surrounding environment.

    Outlet current

    ICCB charge level

    14–16 A

    12 A

    13–12 A

    10 A

    11–10 A

    8 A

    9–8 A

    6 A
