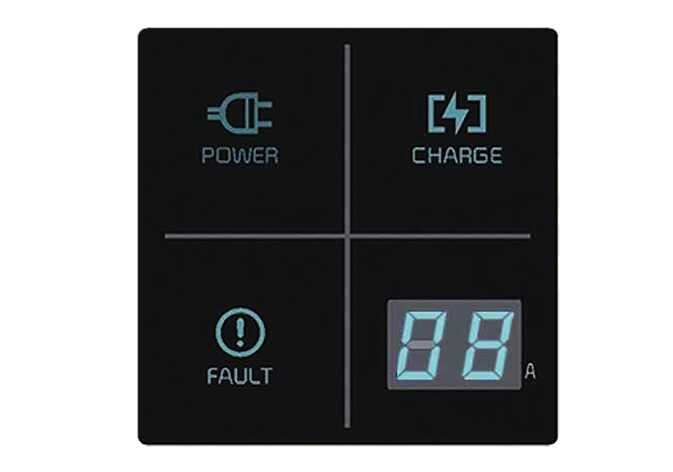

Charging status indicator light for the portable charger
 N_CT25Q054 |
|
Indicator |
Details |
|
|---|---|---|
|
POWER |
On: Power on |
|
|
CHARGE |
On: Charge Blink: Current limit due to high plug temperature or high internal temperature |
|
|
FAULT |
Blink: Charging interrupted |
|
|
CHARGE LEVEL |
12 |
12 A |
|
10 |
10 A |
|
|
08 |
8 A |
|
|
06 |
6 A |
|
|

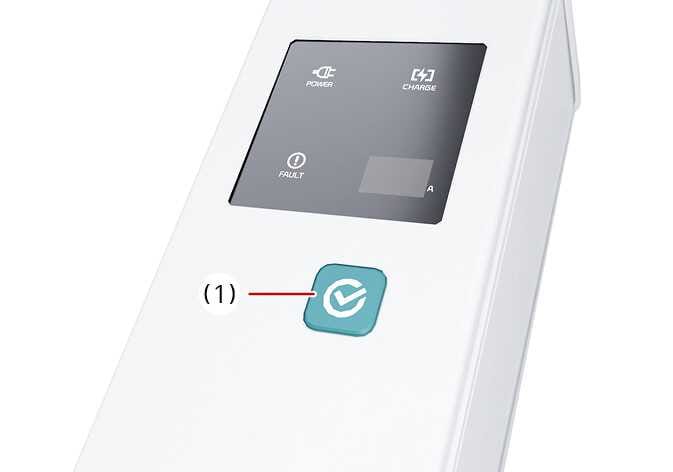

The charging current changes if you press the button (1) for less than a second whilst the charger is connected to an electrical outlet, but not the vehicle.  N_CT25Q053 |
||
