Status, Diagnosis, and Countermeasure

N_QVe27_C00_127_E

  • Charging connector plugged into vehicle (POWER Green ON)

  • Plug connected to an electric outlet (POWER Green ON)

Whilst charging

N_QVe27_C00_128_E

  • Charge indicator light (POWER Green ON, CHARGE Blue ON)

  • Charging current

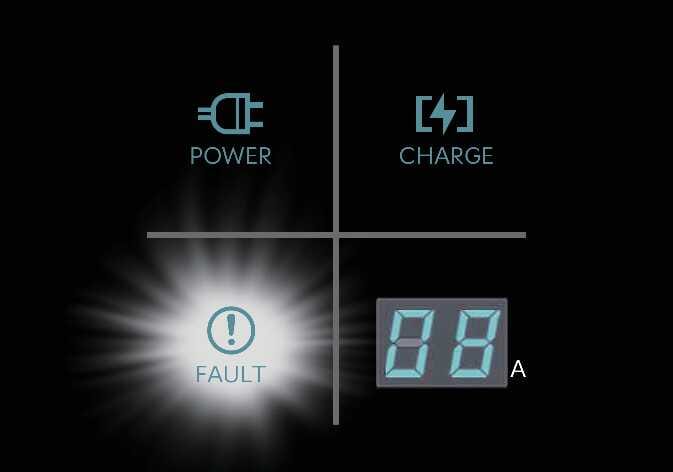

Before plugging the charging connector into the vehicle (POWER Green ON, FAULT Red blink)

N_QVe27_C00_129_E

  • Abnormal temperature

  • ICCB (In-Cable Control Box) failure

Plugged into the vehicle (POWER Green ON, FAULT Red Blink)

N_QVe27_C00_129_E

  • Diagnostic device failure

  • Current leakage

  • Abnormal temperature

Leakage current failure (POWER Green ON, FAULT Red Blink)

N_QVe27_C00_129_E

Disconnect and reconnect the power plug to clear the error.

Power saving mode

N_CT25Q054

The charge level indicator turns off if the status does not change for more than a minute.
