Tachometer

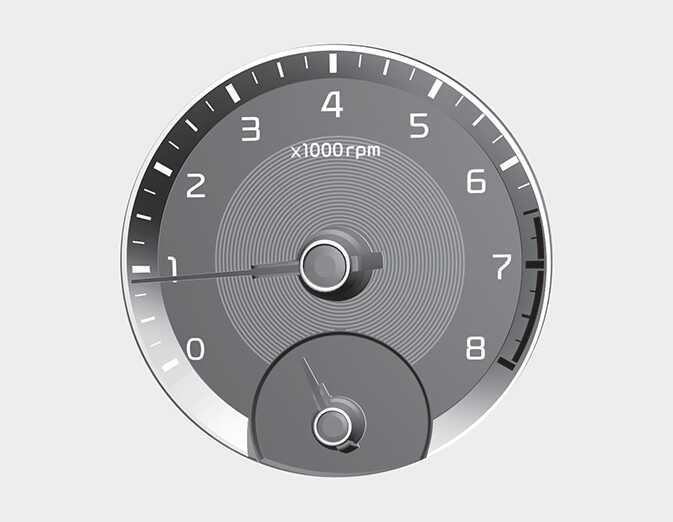

Figure 1. Type A (Gasoline)
OCD041171L
Figure 2. Type A (Diesel)
OCD041135L

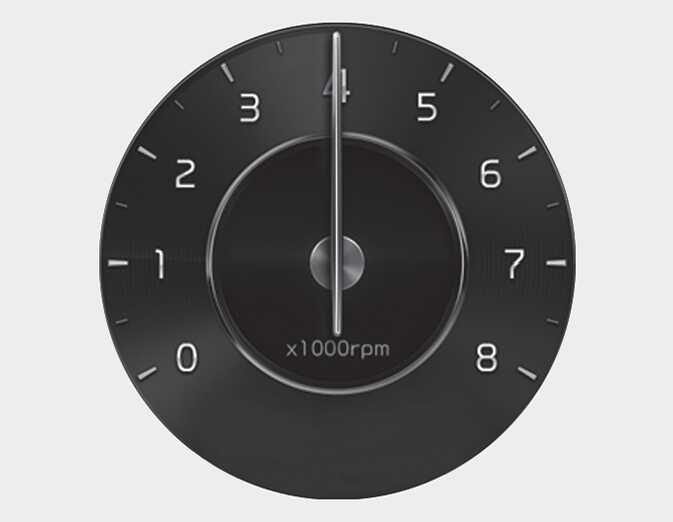

Figure 3. Type B (Gasoline)
OCD041136L

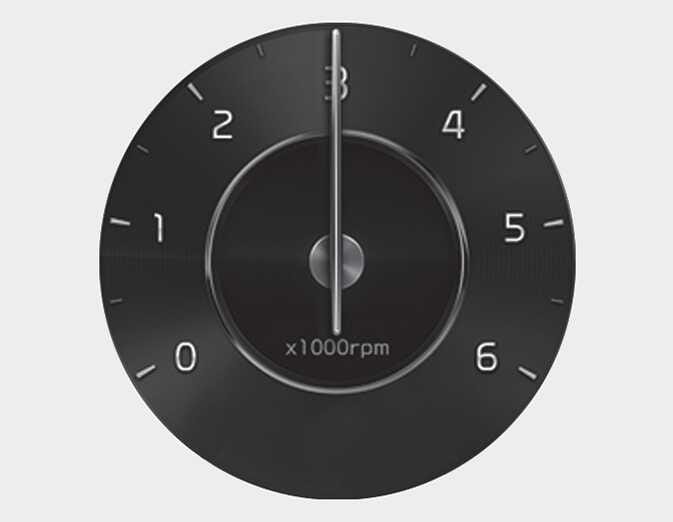

Figure 4. Type B (Diesel)
OCD041137L

The tachometer indicates the approximate number of engine revolutions per minute (rpm).

Use the tachometer to select the correct shift points and to prevent lugging and/or over-revving the engine.

CAUTION

Do not operate the engine within the tachometer's RED ZONE. This may cause severe engine damage.
