Outside Temperature Gauge

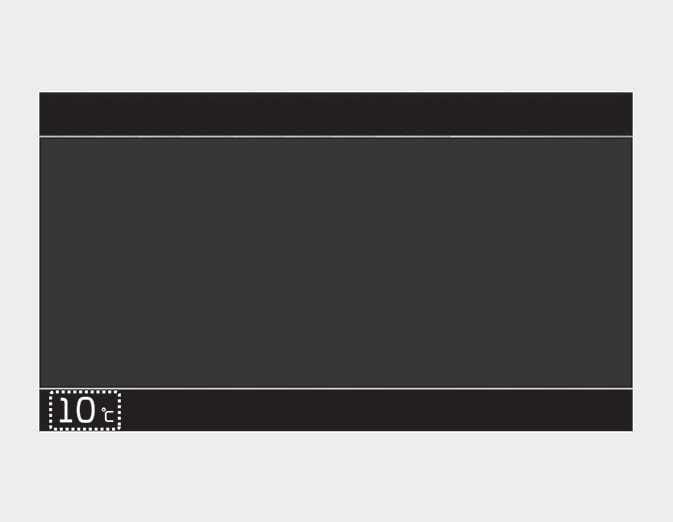

Figure 1. Type A
OCD041145L

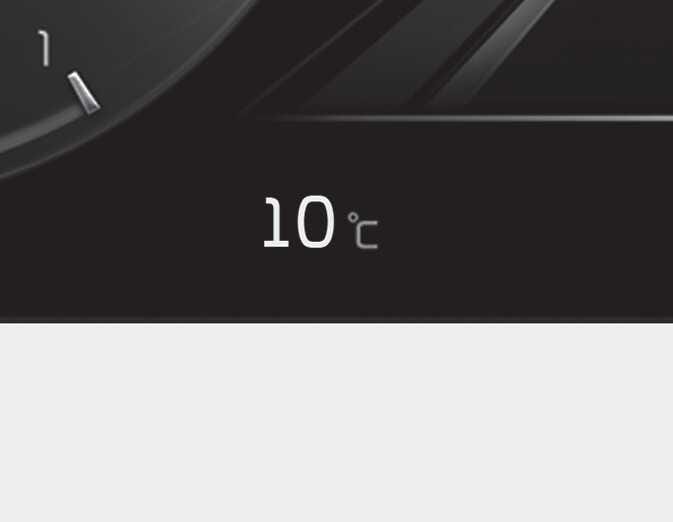

Figure 2. Type B
OCD041144L

This gauge indicates the current outside air temperatures by 1°C (1°F).

  • Temperature range: - 40°C ~ 60°C (- 40°F ~ 140°F)

The outside temperature on the display may not change immediately like a general thermometer to prevent the driver from being inattentive.

To change the temperature unit (from °C to °F or from °F to °C).

  • User Settings mode in the Cluster (if equipped) : You can change the temperature unit in the 'Unit - Temperature unit'

    For more details, refer to User settings mode.

  • Settings menu in the Infotainment System screen (if equipped): You can change the temperature unit in the 'units - Temperature'.

    For detailed information, scan the QR code in a separately supplied Car Infotainment System Quick Reference Guide.

  • Climate control system (for Automatic climate control system): While pressing the OFF button, press the AUTO button for 3 seconds or more. The temperature unit of the instrument cluster and climate control system will change at once.

    For more details, refer to Temperature conversion (°C ↔ °F).
