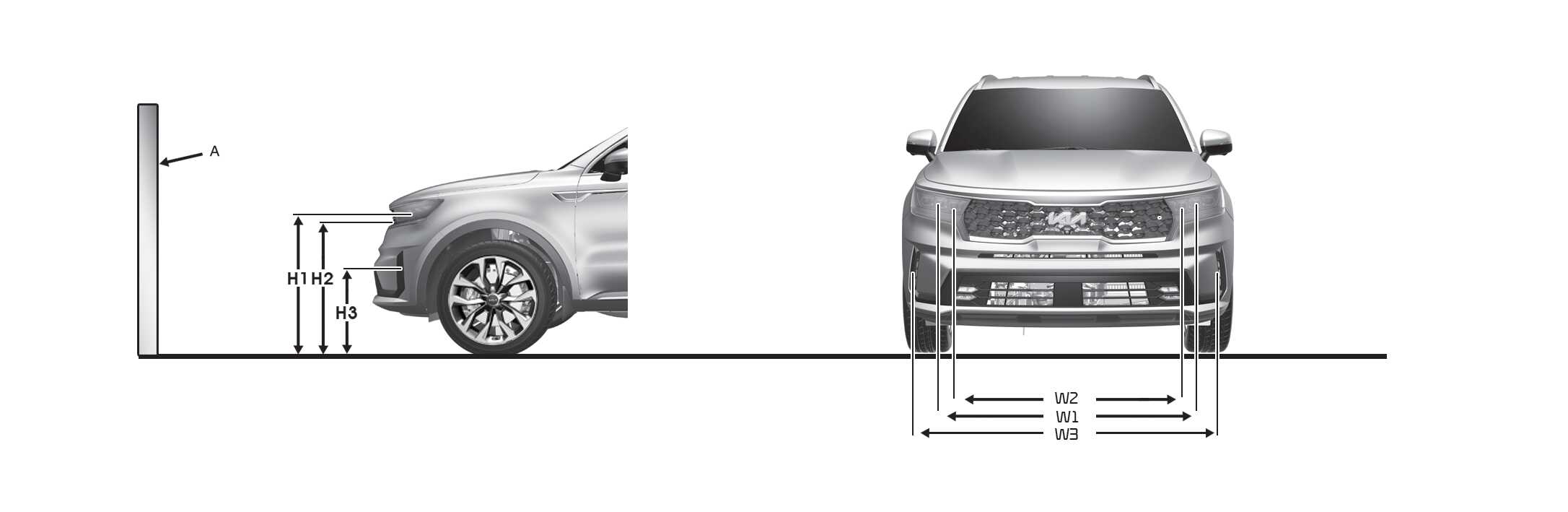

Aiming point
OMQ4071087L
A: Screen
|
Vehicle condition |
Head lamp (LED type) |
Front Fog lamp (LED type) (if equipped) |
|||||
|---|---|---|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
Ground Height |
Distance between lamps |
||||
|
Low/High beam |
Low/High beam |
||||||
|
H1 |
H2 |
W1 |
W2 |
H3 |
W3 |
||
|
without driver [mm (in)] |
Type A |
887 (34.9) |
870 (34.2) |
1,536 (60.5) |
1,316 (51.8) |
408 (10.3) |
1,092 (27.7) |
|
Type B |
879 (22.3) |
862 (33.9) |
1,482 (37.6) |
1,237 (60.5) |
|||
|
with driver [mm (in)] |
Type A |
880 (34.6) |
863 (34.0) |
1,536 (60.5) |
1,536 (51.8) |
401 (10.1) |
1,092 (27.7) |
|
Type B |
872 (22.1) |
855 (33.7) |
1,482 (37.6) |
1,536 (60.5) |
|||
