Front fog lamp

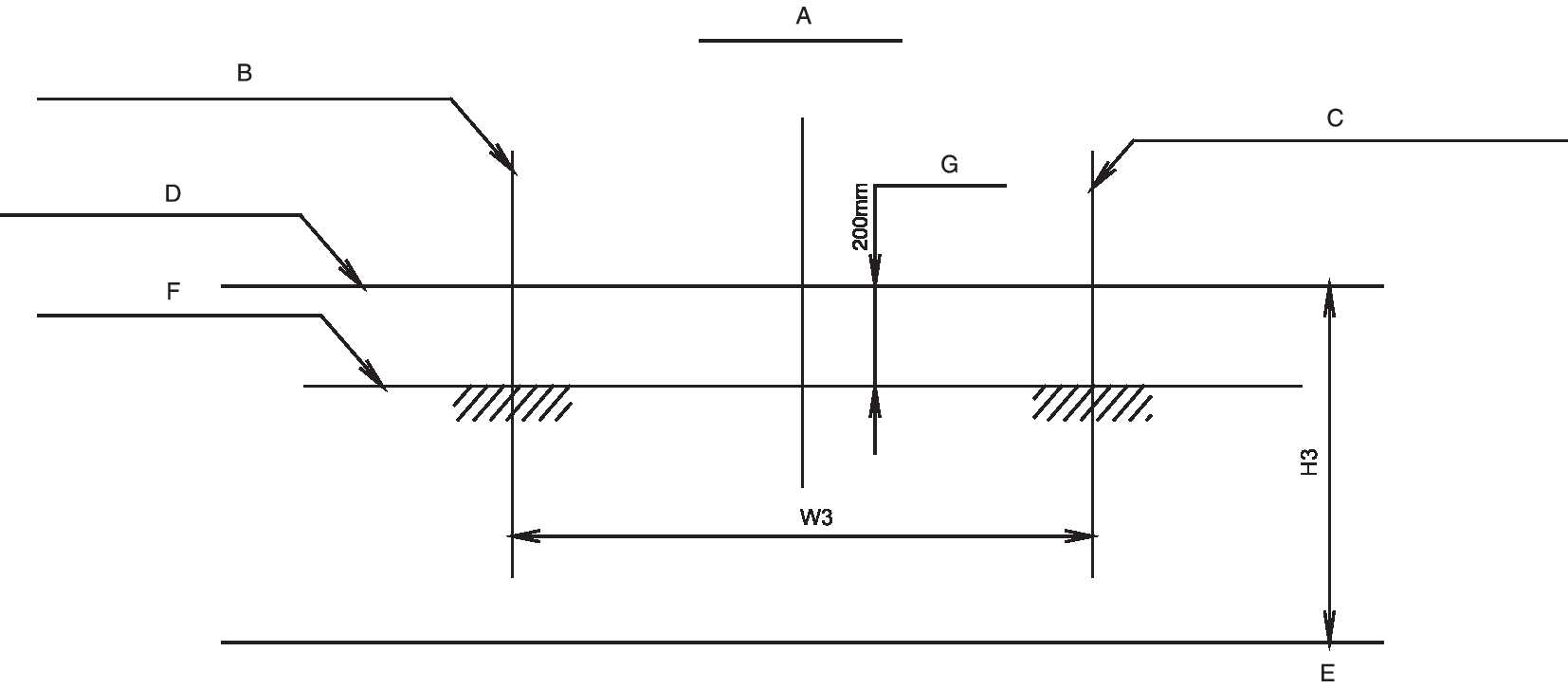

Figure 1. Based on 10m screen
OYB076080

A: Vehicle axis

B: Vertical line of the left fog lamp bulb center

C: Vertical line of the right fog lamp bulb center

D: Horizontal line of fog lamp bulb center

E: Ground

F: Cut-Off line

G: Upper limit

  1. Turn the front fog lamp on without the driver aboard.

  2. The cut-off line should be projected in the allowable range (shaded region).
